Philips vr530 - Page 23

1-10-65
1-10-66

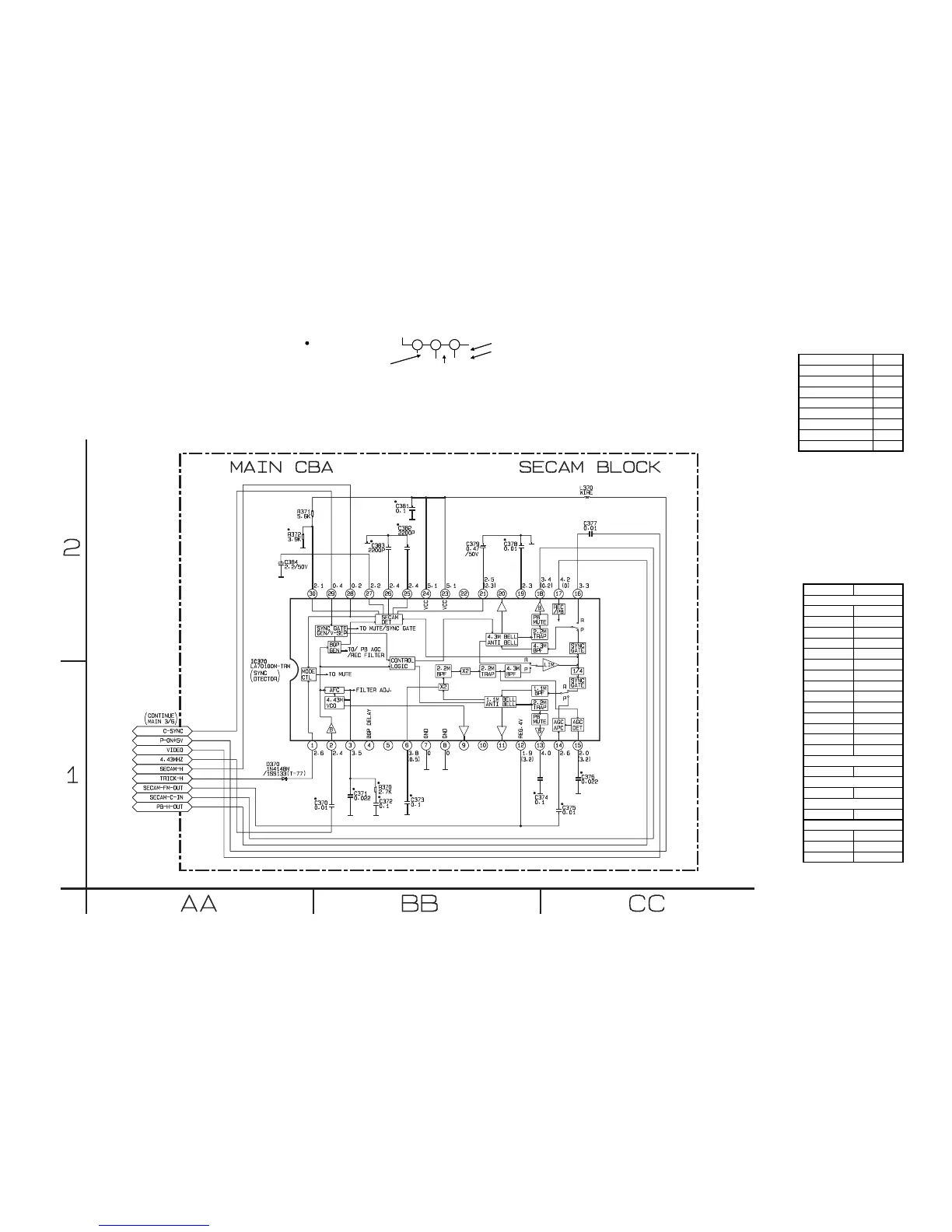

Main 6/6 Schematic Diagram ( F, G,K )
HC267SCM6
Comparison Chart of
Models and Marks
MODEL MARK
VR330/02 D
VR330/07 E
VR330/39 F
VR530/39 G
VR630/02 H
VR630/07 I
VR630/16 J
VR630/39 K
MAIN 6/6 Schematic Diagram
Parts Location Guide (F,G,K )
Ref No. Position
C370 BB-1
C371 BB-1
C372 BB-1
C373 BB-1
C374 BB-1
C375 CC-1
C376 CC-1
C377 CC-2
C378 BB-2
C379 BB-2
C381 BB-2
C382 BB-2
C383 BB-2
C384 AA-2
D370 AA-1
IC370 AA-1
L370 CC-2
R370 BB-1
R371 AA-2
R372 AA-2
IC
CAPACITORS
DIODE
RESISTORS
COILS
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
