Philips vr530 - AFV Schematic Diagram ( G, H, I, J,K ); Comparison Chart of Models and Marks; AFV Schematic Diagram

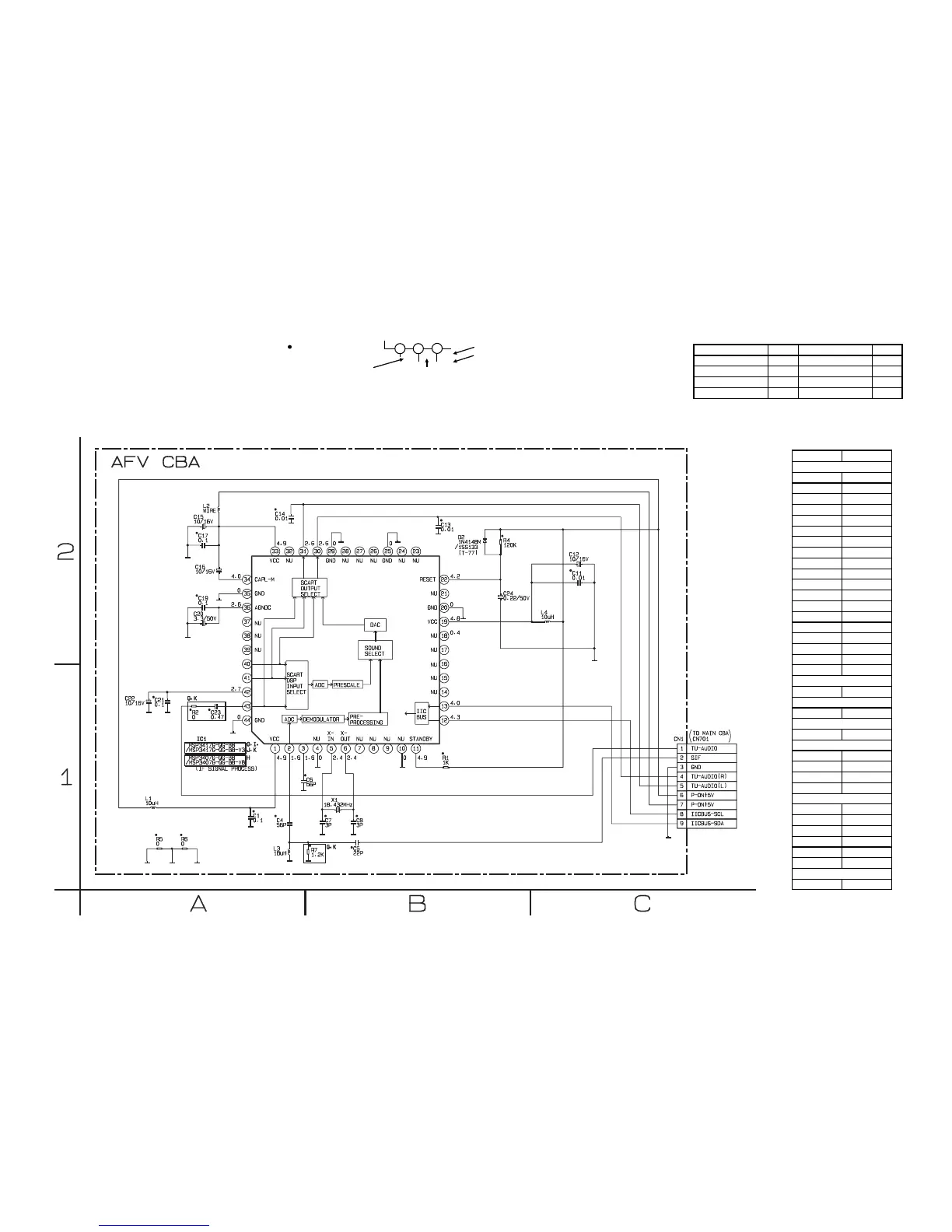

AFV Schematic Diagram ( G, H, I, J,K )
1-10-69 1-10-70
HC463SCAFV
Comparison Chart of Models and Marks
MODEL MARK MODEL MARK
VR330/02 D VR630/02 H
VR330/07 E VR630/07 I
VR330/39 F VR630/16 J
VR530/39 G VR630/39 K
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
AFV Schematic Diagram
Parts Location Guide ( G,H,I,J,K )
Ref No. Position
C1 A-1
C4 A-1
C5 B-1
C6 B-1
C7 B-1
C8 B-1
C11 C-2
C12 C-2
C13 B-2
C14 A-2
C15 A-2
C16 A-2
C17 A-2
C19 A-2
C20 A-2
C21 A-1
C22 A-1
C23 A-1
C24 B-2
CN1 C-1
D2 B-2
IC1 A-1
L1 A-1
L2 A-2
L3 A-1
L4 C-2
R1 B-1
R2 A-1
R4 B-2
R5 A-1
R6 A-1
R7 B-1
X1 B-1
CAPACITORS
CRYSTAL OSCILLATORS
COILS
CONNECTOR
RESISTORS
IC
DIODE
