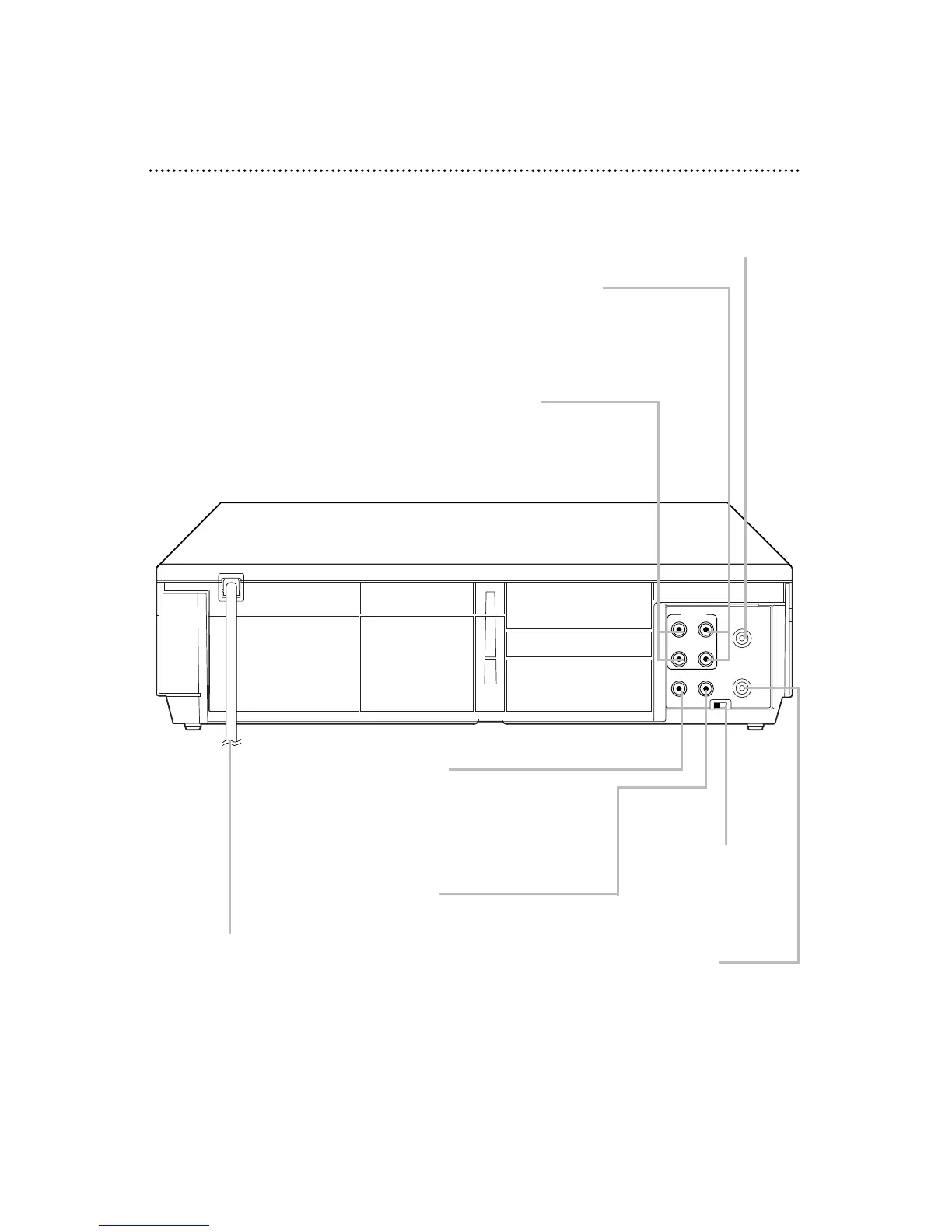

AUDIO IN Jacks
Connect cables coming from the
AUDIO OUT Jacks of a camcorder,
another VCR, or an audio source
here. Details are on page 43.
VIDEO IN Jack
Connect a cable coming from the
VIDEO OUT Jack of a cam-
corder, another VCR, or an
audio-visual source (laser disc
player, video disc player, etc.)
here. Details are on page 43.
ANT(enna) IN Jack
Connect your antenna or cable
here. Details are on pages six-10.
CH3/CH4 Switch
Set to channel 3 or 4
to use your TV with
your VCR. Details are
on pages six-nine.
OUT Jack
Use the supplied RF coaxi-
al cable to connect this
jack to the ANTENNA IN
Jack on your TV, Cable
Box, or Direct Broadcast
System. Details are on
pages six-nine.
VIDEO OUT Jack
Connect a cable going to the VIDEO IN
Jack of a camcorder, another VCR, or an
audio-visual system (monitor, laser disc
player, video disc player, etc.) here.
Details are on pages 43 and 56.
AC Power Cord
Connect to a stan-
dard AC outlet to
supply power to the
VCR.
AUDIO OUT Jacks
Connect cables going to the AUDIO IN
Jacks of a camcorder, another VCR, or an
audio system here. Details are on pages 43
and 56.
