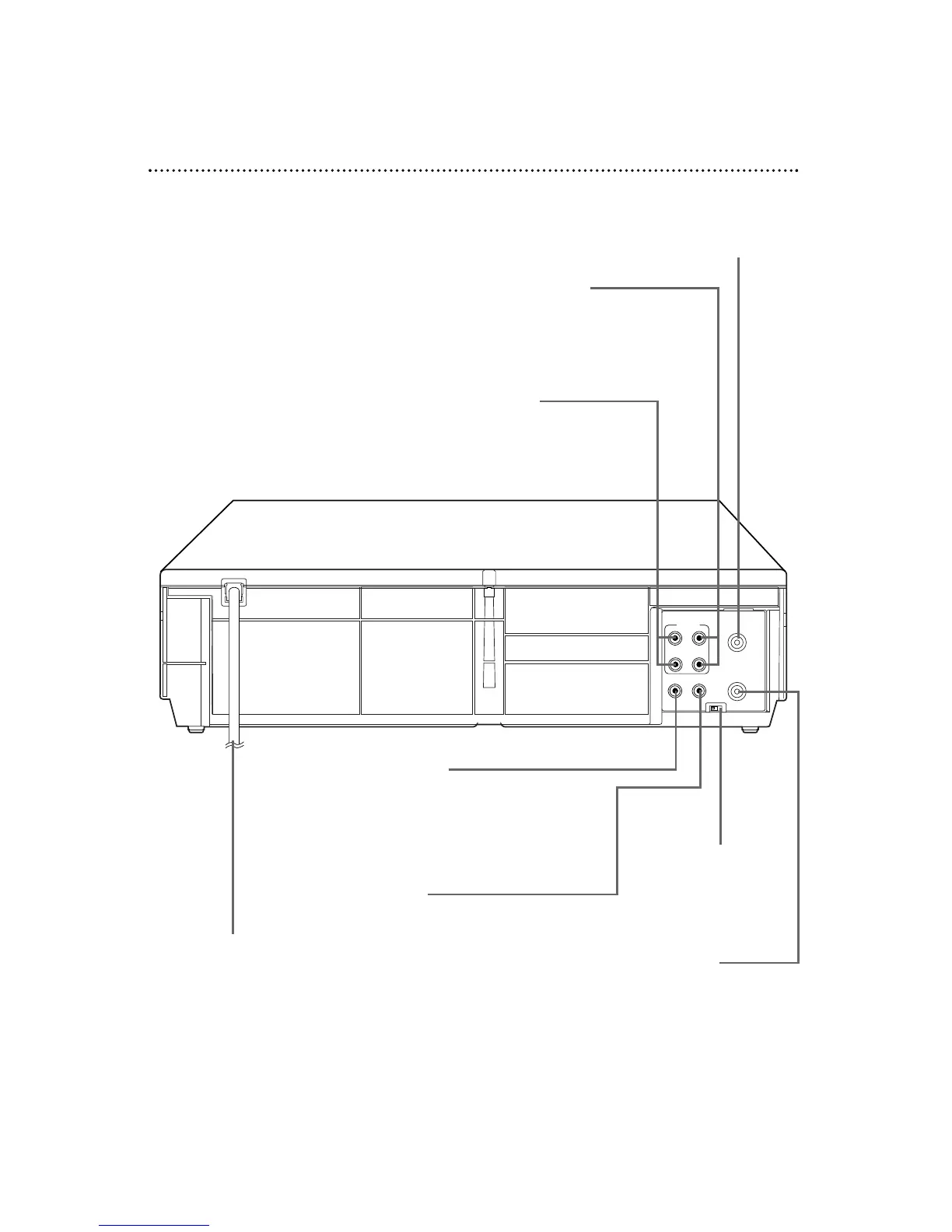

AUDIO IN Jacks
Connect audio cables coming from
the AUDIO OUT Jacks of a cam-
corder, another VCR, or an audio
source here. Details are on page 43.
VIDEO IN Jack
Connect a video cable coming
from the VIDEO OUT Jack of a
camcorder, another VCR, or an
audio-visual source (laser disc
player, video disc player, etc.)
here. Details are on page 43.
ANT(enna) IN Jack
Connect your antenna or cable
here. Details are on pages six-10.
CH3/CH4 Switch
Set to channel 3 or 4
to use your TV with
your VCR. Details are
on pages six-nine.
OUT Jack
Use the supplied RF coaxi-
al cable to connect this
jack to the ANTENNA IN
Jack on your TV, Cable
Box, or Direct Broadcast
System. Details are on
pages six-nine.
VIDEO OUT Jack
Connect a video cable going to the
VIDEO IN Jack of a camcorder, another
VCR, or an audio-visual system (monitor,
laser disc player, video disc player, etc.)
here. Details are on pages 43 and 55.
AC Power Cord
Connect to a stan-
dard AC outlet to
supply power to the
VCR.
AUDIO OUT Jacks
Connect audio cables going to the
AUDIO IN Jacks of a camcorder, another
VCR, or an audio system here. Details are
on pages 43 and 55.
