Phoenix Contact CAPAROC E4 12-24DC/1-10A User Manual

The CAPAROC product family
109745_en_01 PHOENIX CONTACT 11 / 66
2.4.2 CAPAROC circuit breaker modules

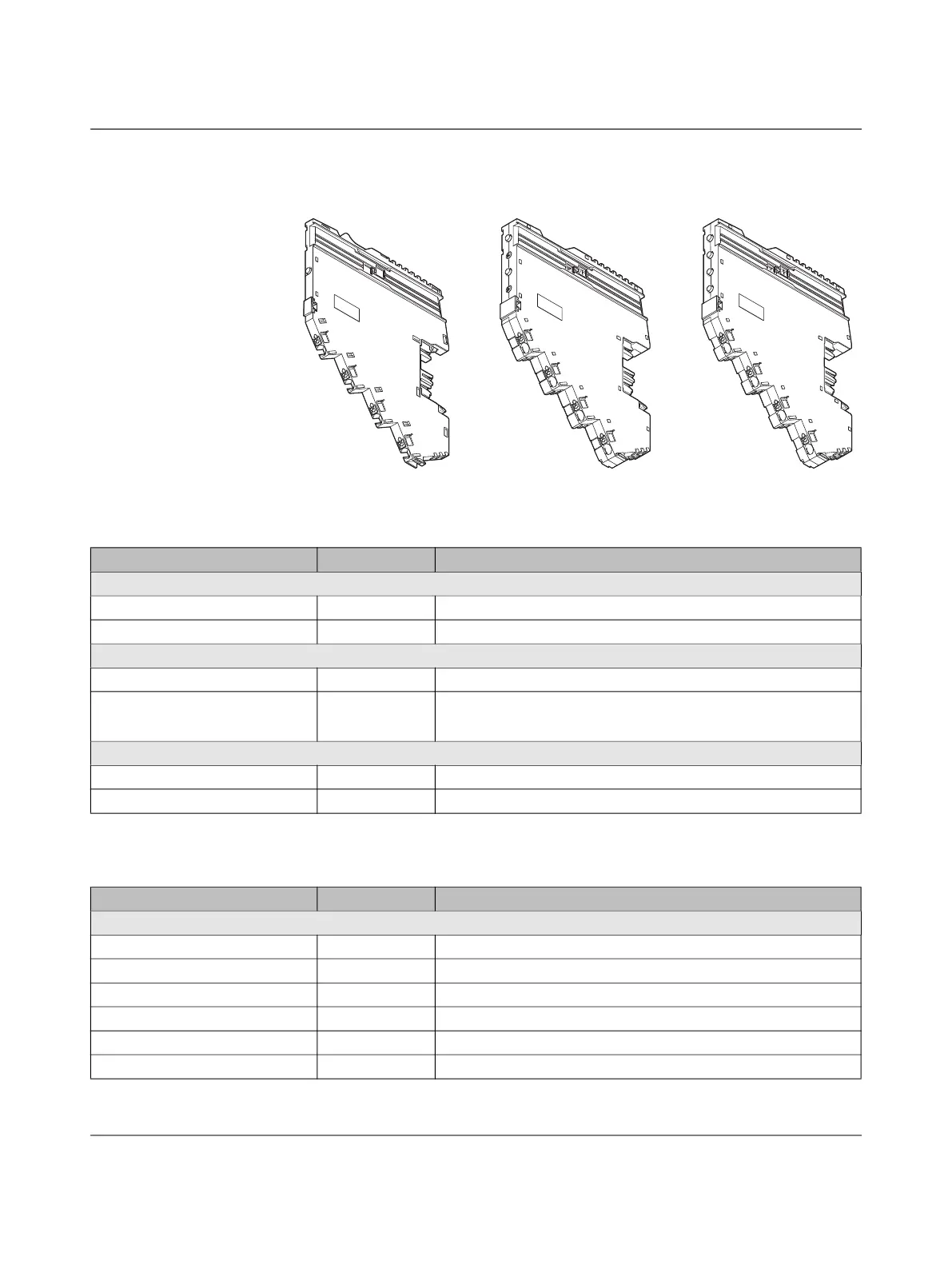

Figure 2-3 Example: 1-channel, 2-channel, and 4-channel circuit breaker modules
Adjustable circuit breaker modules
Non-adjustable circuit breaker modules (fixed values)
Table 2-2 Overview of adjustable circuit breaker modules
Designation Item number Description
1-channel electronic circuit breakers
CAPAROC E1 12-24DC/1-4A 1115415 Adjustable from 1 - 4 A
CAPAROC E1 12-24DC/1-10A 1115649 Adjustable from 1 - 10 A
2-channel electronic circuit breakers
CAPAROC E2 12-24DC/1-4A 1115655 Adjustable from 1 - 4 A
CAPAROC E2 12-24DC/2-10A 1110984 Adjustable from 2 - 10 A
(adjustable from 1 - 10 A via bus-capable power module)
4-channel electronic circuit breakers
CAPAROC E4 12-24DC/1-4A 1115657 Adjustable from 1 - 4 A
CAPAROC E4 12-24DC/1-10A 1115658 Adjustable from 1 - 10 A
Table 2-3 Overview of non-adjustable circuit breaker modules (fixed values)
Designation Item number Description
1-channel electronic circuit breakers
CAPAROC E1 12-24DC/1A 1157288 1 A nominal current
CAPAROC E1 12-24DC/2A 1157290 2 A nominal current
CAPAROC E1 12-24DC/4A 1157285 4 A nominal current
CAPAROC E1 12-24DC/6A 1157286 6 A nominal current
CAPAROC E1 12-24DC/8A 1157279 8 A nominal current
CAPAROC E1 12-24DC/10A 1157284 10 A nominal current
