6.8.2 I/O integration in Siemens controllers

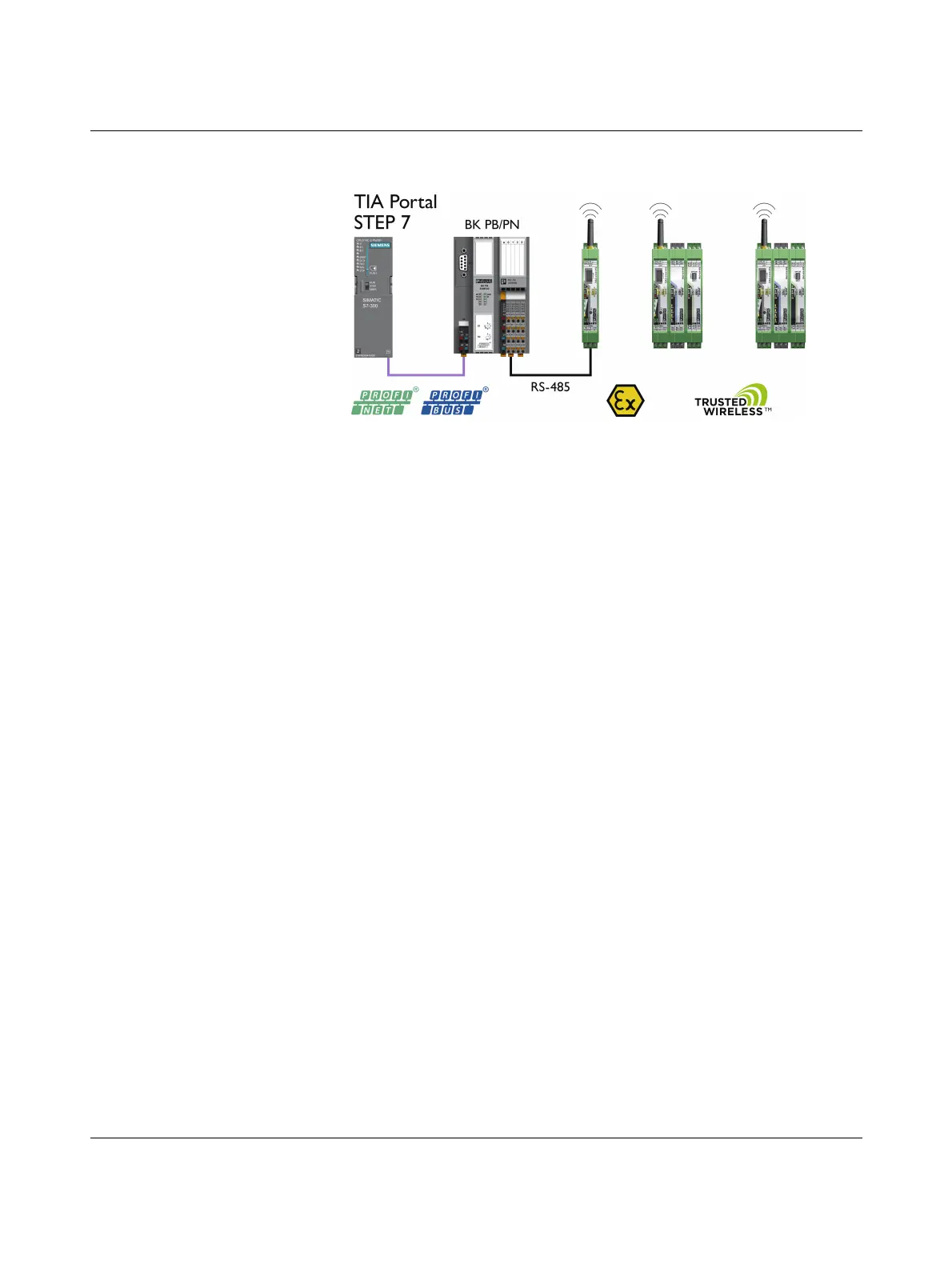

Figure 6-10 I/O integration in TIA Portal or STEP 7
Required components:
– Radioline front module
– Radioline I/O extension modules
– Inline or Axioline bus coupler
– Inline or Axioline RS-485 communication module
– S7-3xx, S7-12xx, S7-15xx controllers
–TIA Portal or STEP7
– STEP 7 function blocks
– STEP_7_RadiolineBasic
–STEP_7_comserial
–STEP_7_Modbus
