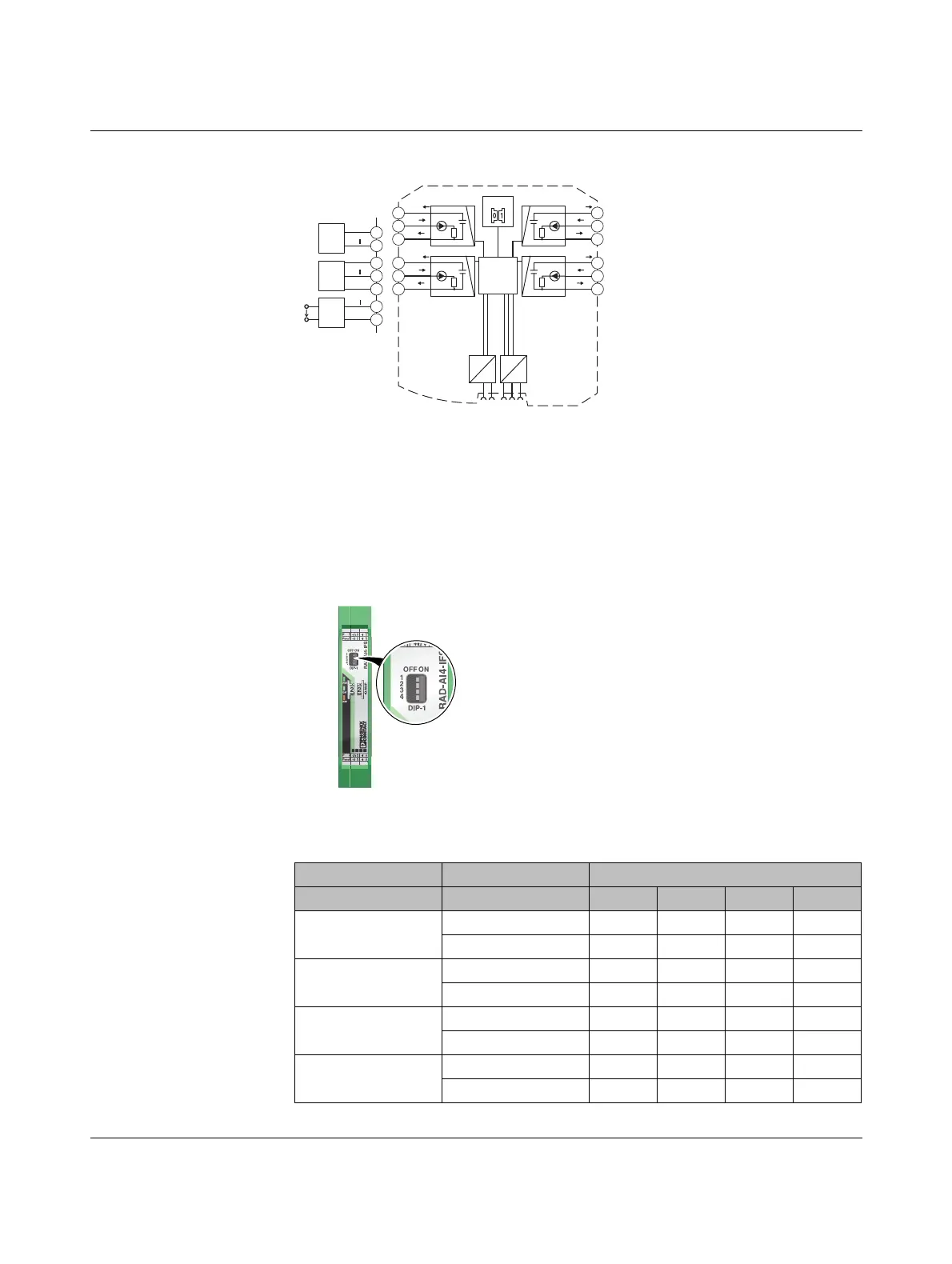

7.1.2 Basic circuit diagram
Figure 7-2 Basic circuit diagram for the RAD-AI4-IFS
7.1.3 Setting the DIP switches
You can configure the input signals using the DIP switches on the front (0 mA ... 20 mA or
4 mA ... 20 mA). Any changes to the DIP switch settings will be applied immediately. In
PLC / Modbus/RTU mode, the setting of the input signals is evaluated for error diagnostics.
When set to 4 mA ... 20 mA, for example, it is possible to detect an open circuit.
Figure 7-3 DIP switches of the RAD-AI4-IFS
Table 7-1 DIP switches of the RAD-AI4-IFS
DIP switch
Setting Input signal 1 2 3 4
Analog IN1
0 mA ... 20 mA OFF
4 mA ... 20 mA ON
Analog IN2
0 mA ... 20 mA OFF
4 mA ... 20 mA ON
Analog IN3
0 mA ... 20 mA OFF
4mA...20mA ON
Analog IN4
0 mA ... 20 mA OFF
4mA...20mA ON
