RAD-...-IFS
100 / 198
PHOENIX CONTACT 105542_en_05
7.3.3 Setting the DIP switches
You can use the DIP switches on the front to set the behavior of the outputs in the event of
an error, e.g., interruption of the wireless connection. Any changes to the DIP switch set-
tings will be applied immediately.
RESET = output value is set to 0
HOLD = hold the last valid output value

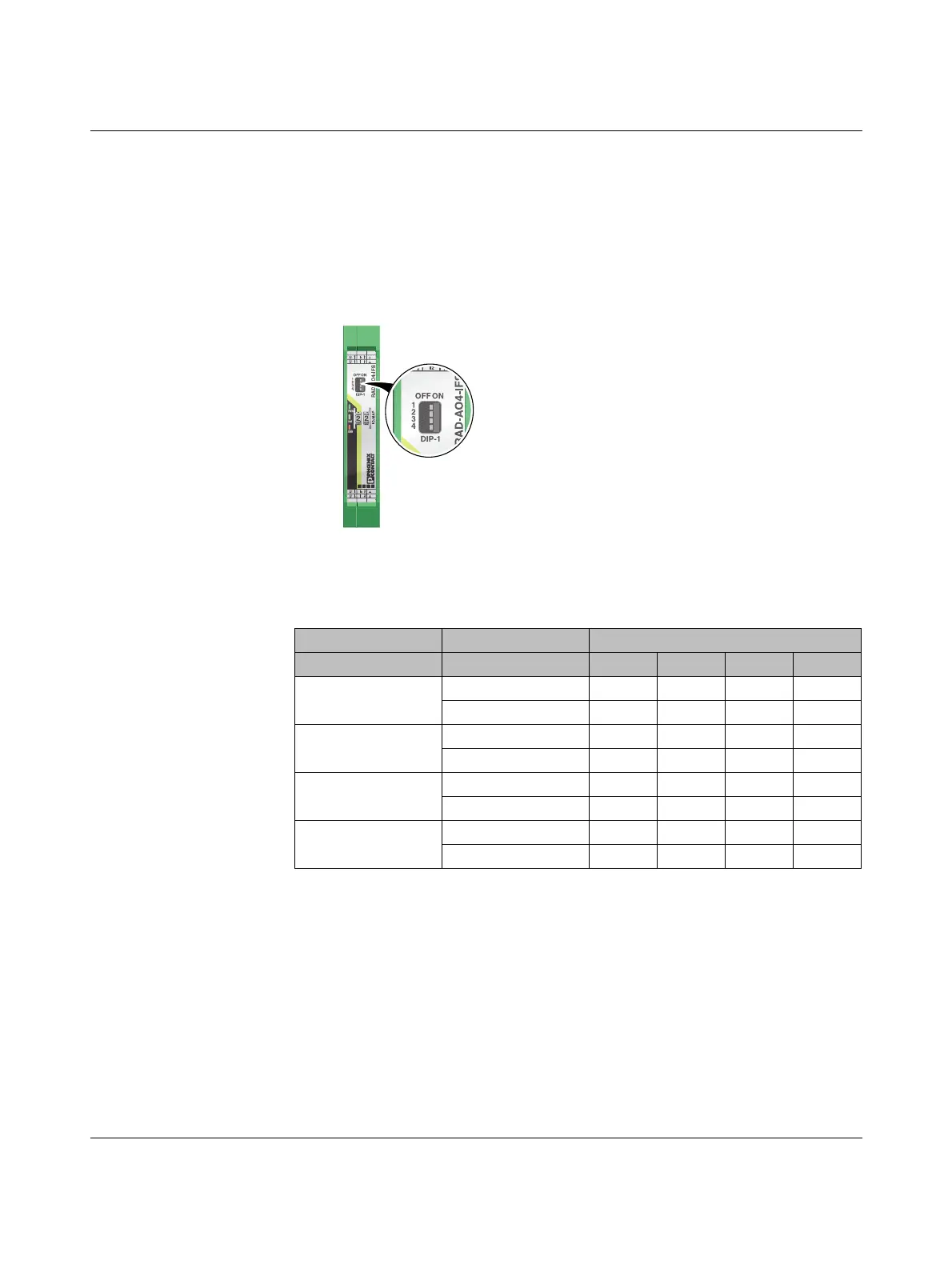

Figure 7-16 DIP switches of the RAD-AO4-IFS
Table 7-5 DIP switches of the RAD-AO4-IFS
DIP switch
Input Output signal 1 2 3 4
Analog OUT1
RESET OFF
HOLD ON
Analog OUT2
RESET OFF
HOLD ON
Analog OUT3
RESET OFF
HOLD ON
Analog OUT4
RESET OFF
HOLD ON
3
4U4
U3
I4
I3
1
2U2
U1
I2
I1
OFF ON
DIP-1
1
2
3
4
PWR
DAT
ERR
444
3
3
222
11
