Phoenix R250 Owner's Manual

6
2
5
4
7, 8
9, 10, 11,
12, 13
14, 15, 16, 17
1, 3
Item Description Qty Part No.
1 Top Cover 1 4026977
2 Top Cover Catch 1 4026979
3 Top Cover Hinge 2 4026978
4 Hex Bolts, 1/4”–20 x 4” 4 1 1154019
5 Hex Bolts, 1/4”–20 x 1.75” 2 1154014
6 Handle Weldment 1 4026344
7 Wheel, 12” 2 4026851
8 Cotter Pin 2 1284404
9 Filter, 12” x 12” x 1” 1 4025568
10 Hose (1/4” ID x 33’ long) 1 4024916
Item Description Qty Part No.
11 Coupling Body, 1/4” Tube 1 4026306
12 Coupling Insert, 1/4” Tube 1 4026986
13 Cord 1 4032315
14 Control Board 1 4026763
15 Capacitor, Compressor, 50 μF 1 4033032-06
16 Capacitor, Impeller, 15 μF 1 4033031-07
17 Thermistor 1 4031279
18 Handle lever 1 4026350
Description Qty Part No.
Compressor 1 4035407
Evaporator Coil 1 4033995-02
Condenser Coil 1 4033996
Condensate Pump 1 4034582-01
Float Safety Switch 1 4034374
Description Qty Part No.
Impeller, Air Mover 1 4026657
Exhaust Grill 1 4026308
Wire Duct Collar 1 4026309
Impeller Plate Bolt 4 1154006
8 Service Parts
Items listed are not shown
Specifications subject to change without notice.
8
www.UsePhoenix.com • sales@UsePhoenix.comToll-Free 1-800-533-7533
18

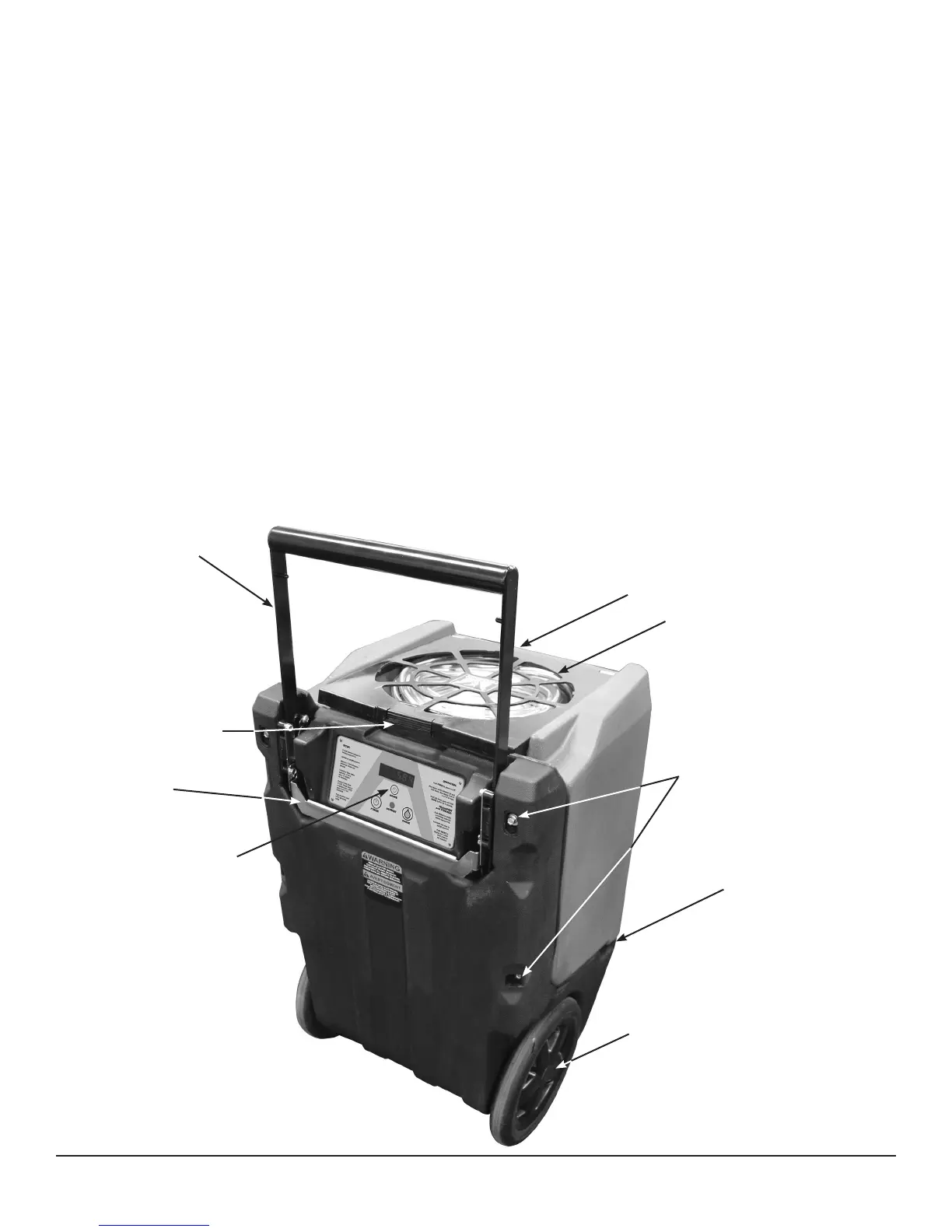

Figure 12: Service parts identication
