6
PCL 3200
REAR-PANEL DESCRIPTION-
(17) IN/OUT LEVEL (+4dB, -10dB)
It adjusts the signal level of the preamplifier to match
with our PCL3200. The switch shifting changes the
way the input/output meter references signals.
(18) DC JACK (POWER AC1OV)
This unit needs an AC 10V/600mA power supplied
by Phonic. Use of any other AC adaptor voids the
warranty.
(19) INPUT JACK
This is the input connector to take signals from any
low or line level signals such as mixing console,
tape recorder, or synthesizer and other unbalanced
signal sources etc. to be limited, compressed or
gated.
(20) OUTPUT
This provides processed output.
(21) SIDE CHAIN
This is a special connector and allows you to con-
trol this PCL3200 by other devices. For example,
by using a send/return cable (SEE FIGURE E) you
can send the signal out to another device such as
an EQ to re-produce the signal and then return it
back for better sound quality.
Boost the high frequency frequency , the vocal sibi-
lance is removed by differential compression. If low
frequency EQ cut is used, the compressor allows
drum sounds to get through more or less unaltered,
yet may clamp down on a relatively less powerful
high synthesizer note.

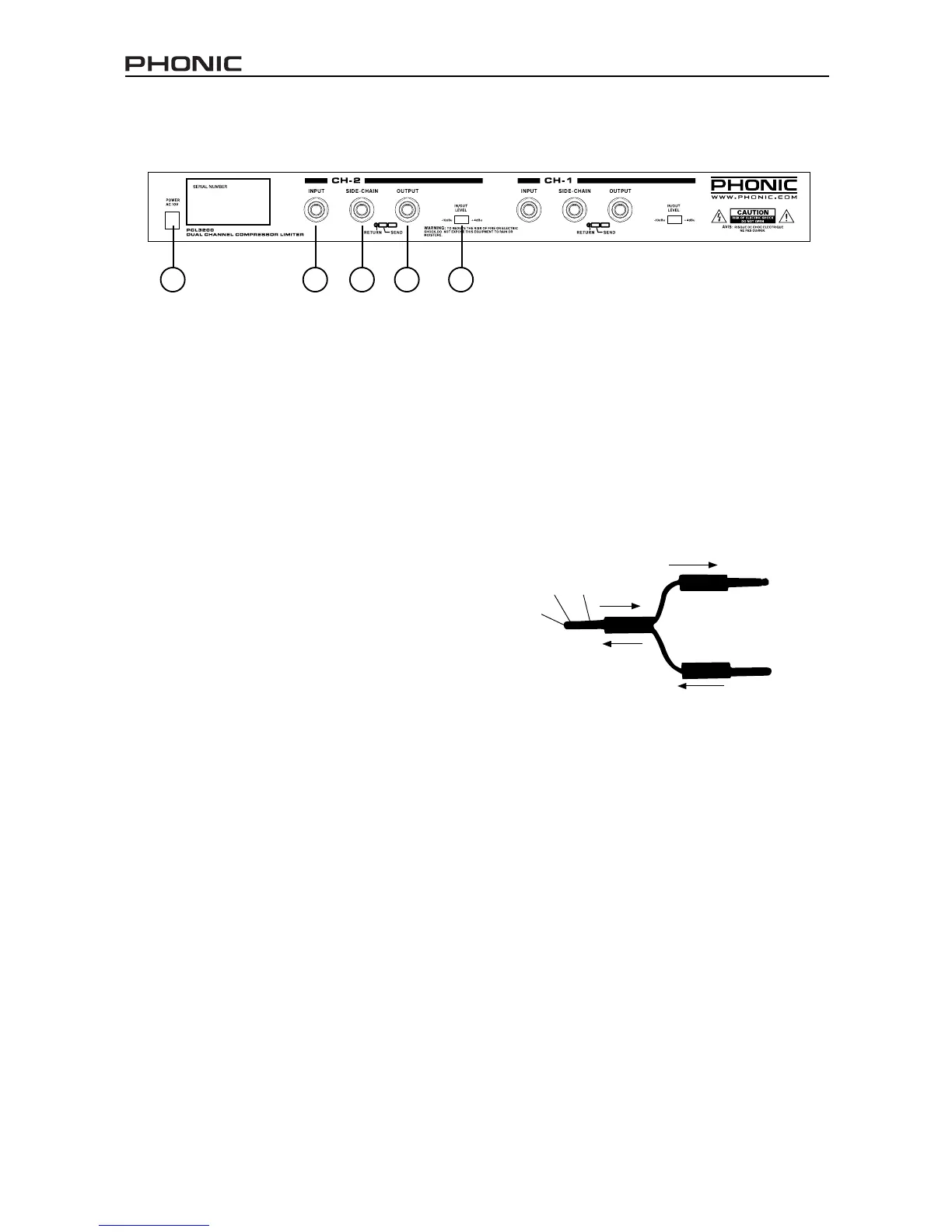

PCL3200 REAR PANEL
17
20
2119
18
Ring
Stereo Insert
(to PCL 3200 sidechain)
Tip
Sleeve
Mono send
to EQ (ring)
Mono return
from EQ (tip)
