7
PCL 3200
CONNECTION DIAGRAM DISCUSSIONS
The Connection Diagrams (SEE FIGURE F/G)
intended as examples of some of the many ways
your PCL3200 can be connected.
This applies to lower the level of background
music in the presence of narration or to lower
the level of a rhythm guitar while a vocalist is
singing.
(a) Connect the Mike to the INPUT JSVK for
vocalist.
(b) The background music (from either a CD,
synthesizer, turntable or cassette) is connected
to CHB'S INPUT jack.
(c) A Mixing console is connected to the OUT-
PUT
jack. Adjusting the THRESHOLD,
RATIO, ATTACK, and RELEASE controls af-
fects signal processing.
(2) DE-ESSING
LANCE"
(a) Insert an EQ to the side chain jack by a
SEND/RETURN cable.
(b) Connect a Microphone to the input
connector.
(c) Connect a Mixing console or a tape re-
corder to the OUTPUT connector.
Adjusting the THRESHOLD,RATIO, ATTACK,
and RELEASE controls now affects signal
processing.

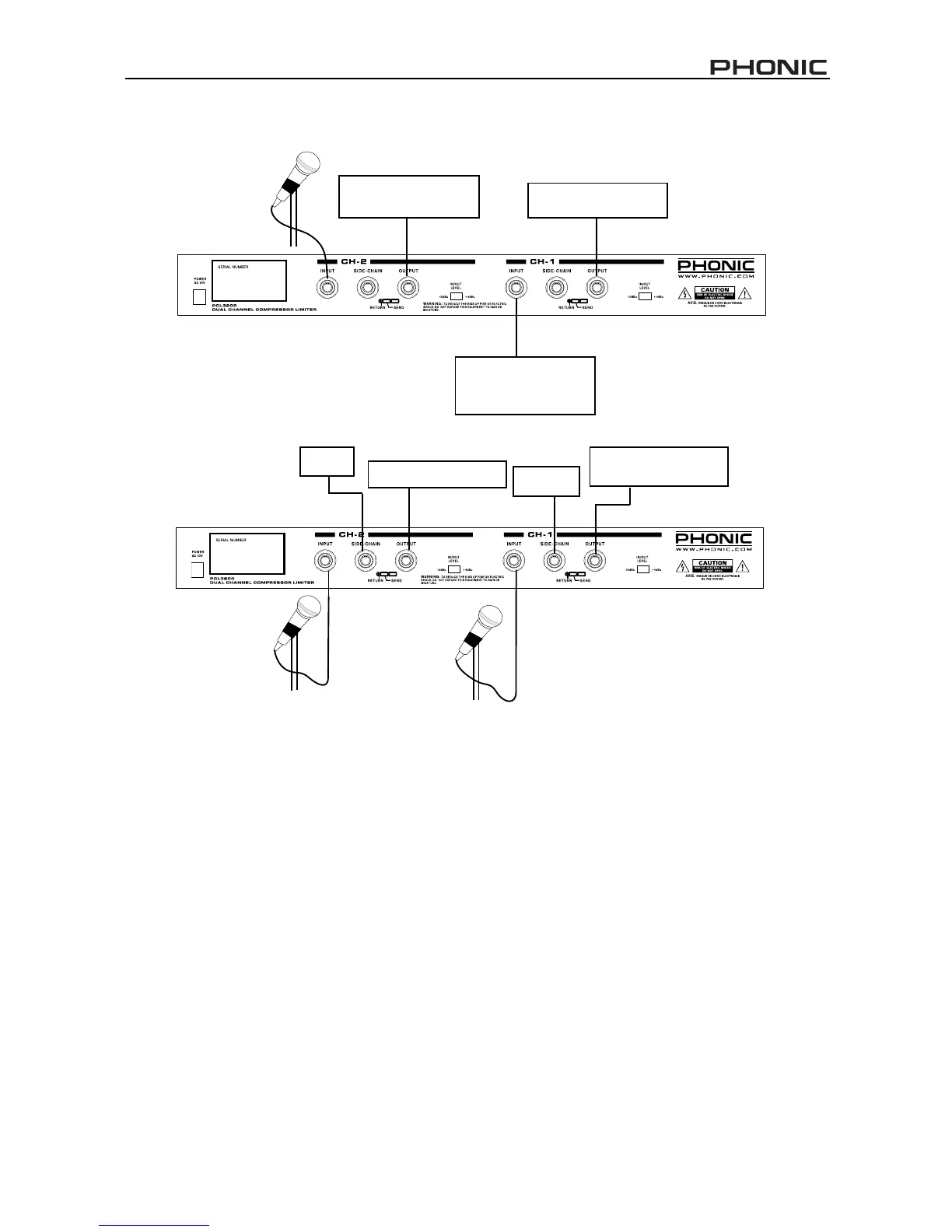

CONNECTION DIAGRAM
DE-ESSING
KEYING
MICROPHONE
MICROPHONE
MICROPHONE
PRE AMPLIFIER
PRE AMPLIFIER
PRE AMPLIFIER
PRE AMPLIFIER
CD
TAPE RECORDER
SYNTHESIZER
EQ
EQ
