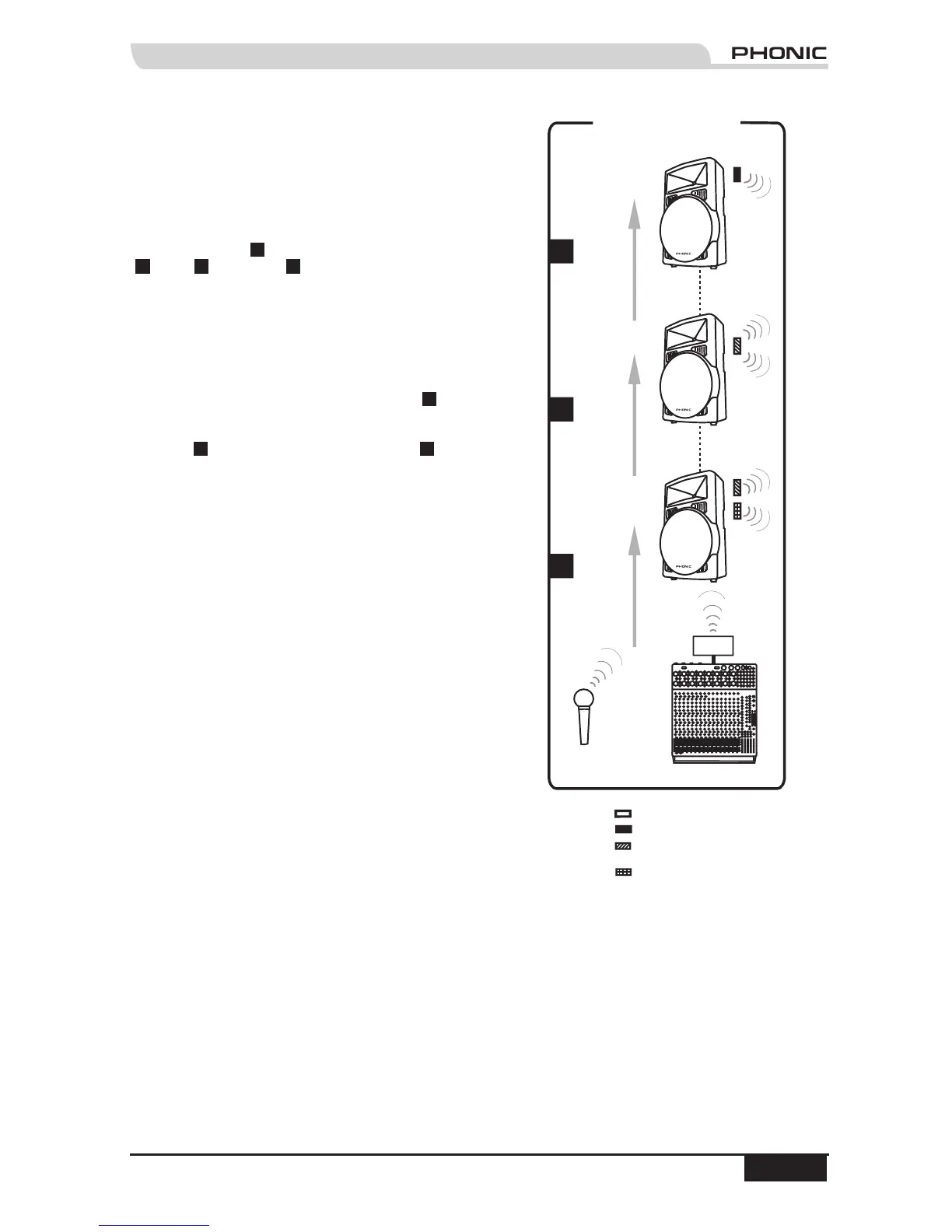

6) System Three (Mono):
This conguration uses a Phonic wireless microphone
and mixer with Stand Alone Wireless Transmitter
Module (WM 60) transmitting the source signals to three
"virtually" daisy chained Performer active speakers. You
can use a Phonic UHF or VHF wireless microphone
with wireless module to transmit to the speakers. Set
the WIRELESS/WIRELESS MIC Switch out (up) on the
back of Speaker
1
, and set it in (down) on Speakers
2
and
3
. Speaker
1
is tted with two wireless
modules installed in the two compartments on the top
of the speaker. One compartment has the matched-
frequency wireless module for the UHF or VHF wireless
microphone. The other compartment is tted with a
Transmitter & Receiver Module (WM 50) for receiving
the transmission from the Stand Alone Wireless
Transmitter Module (WM 60) and re-transmitting it to
the next speakers in the series. Speaker
2
is tted
with a Wireless Transmitter/Receiver Module (WM
50) for receiving the source signals transmission from
Speaker
1
and re-transmitting it to Speaker
3
, which is
tted with a Wireless Receiver Module (WM 40). In this
way you have a completely wireless system with all the
speakers receiving the same signals from the wireless
microphone and mixer. (To install wireless modules
please refer to the instructions on page 15.)
Related Products: UM 11, UM 22, VM 11, VM 22, WM
40, WM 50, WM 60
