Phonocar VM 017 - Electric Connections Scheme; Installation Attention

24

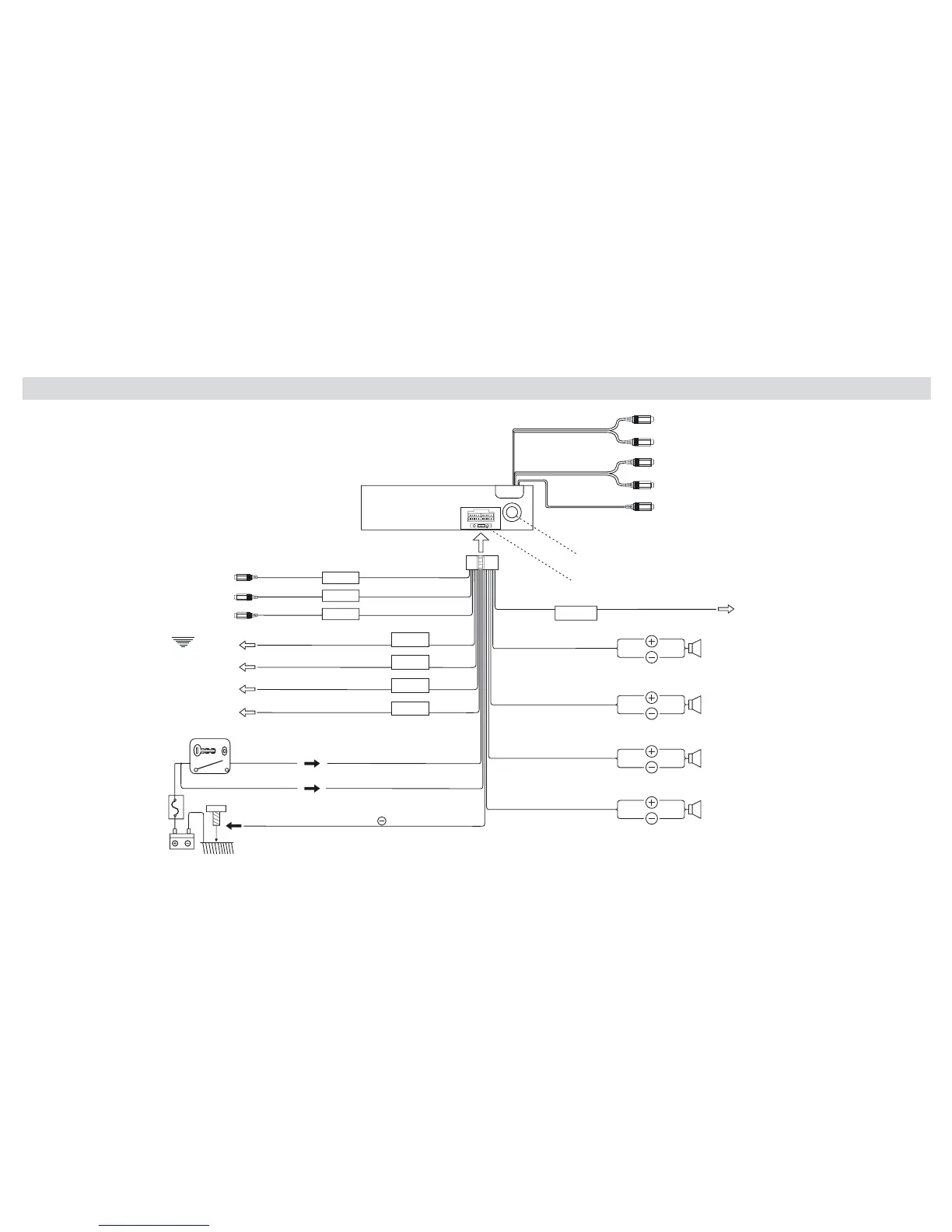

Electric Connections Scheme
ATTENTION
- OBSERVE THE RELATED SCHEME, BEFORE CAR-
RYING OUT THE INSTALLATION.
- CABLE OF HAND-BRAKE: THERE WILL BE NO
VIDEO AVAILABLE FROM THE UNIT, IF THIS CABLE
IS NOT CONNECTED.
Ground (GND-Black)
(to car body-work)
Video IN
Video IN reverse-gear
Audio AUX-IN
Subwoofer
Video Output
(White)
(Red)
(Yellow)
Grey
Grey
Grey
Grey
Brown
Pink
Blue
Parking
Reverse-gear cable
Remote-control for amplier
Control for Antenna-connector
Ignition-key block
Fuse
Battery
+12V Ignition-Pluspole (Red)
+12V Permanent (Yellow)
FM/AM Control for Antenna-connector
Fuse (10A)
Lighting
Speaker Front left
Speaker Front right
Speaker Rear left
Speaker Rear right
Orange
White
White/Black
Grey
Grey/Black
Green
Green/Black
Violet
Violet/Black
Front Audio Output
(Yellow)
(Yellow)
(Red)
(White)
(Brown)
