Phottix Mitros TTL - LCD Display Overview; Main Screen Display; Wireless Master Screen; Wireless Slave Screen

5

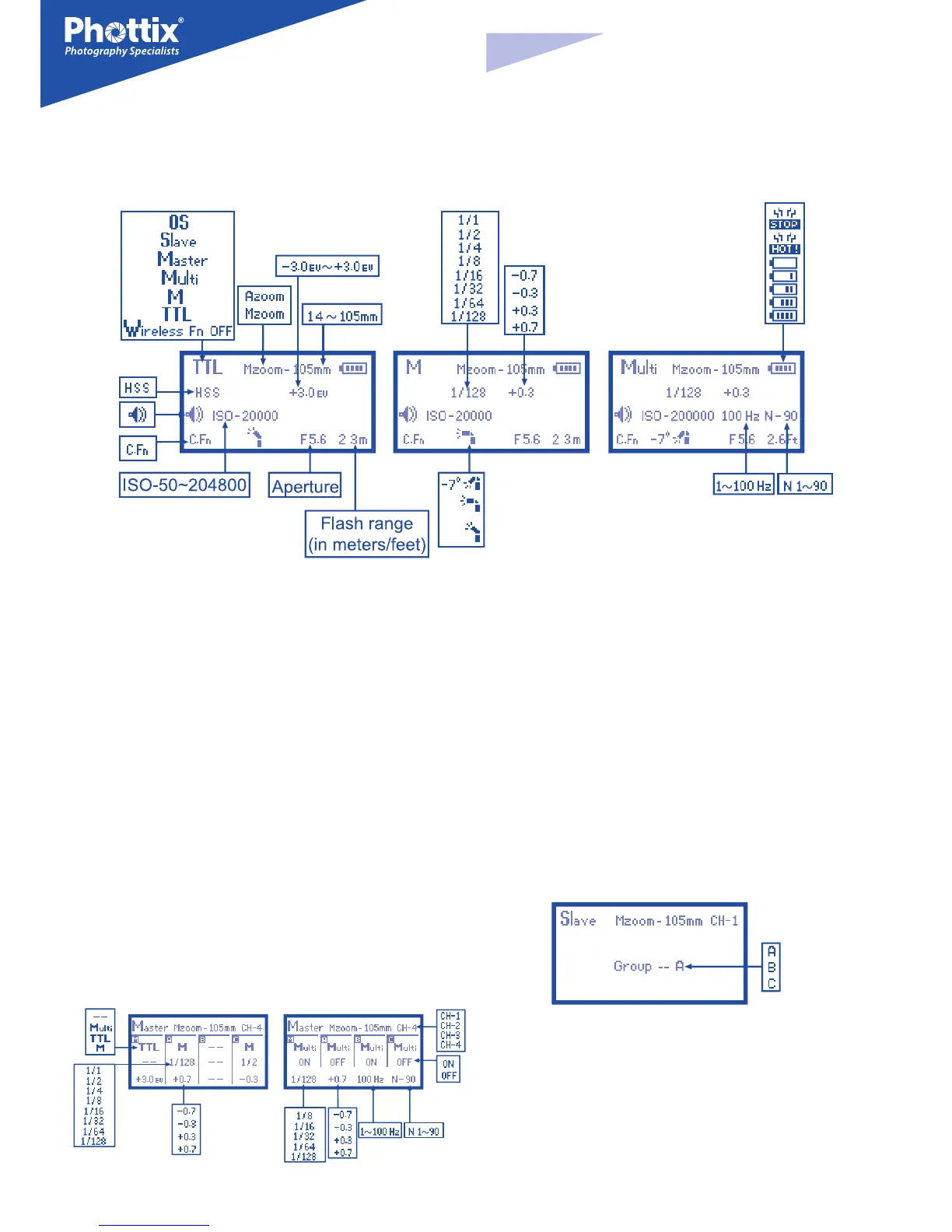

The LCD Display
Main Screen
Top Line:
Flash Mode: TTL, Manual (M), Multi, Master, Slave, OS, Wireless Fn OFF
Zoom: Indicates auto or manual ash head zoom
Battery Level Indicator: “HOT!” “STOP”
Second Line:
In TTL mode: FP Sync/High Speed Sync (HSS) icon, EV
In M or Multi mode: Power Level
Third Line:
Beep Signal icon, ISO display,
In Multi mode: Multi Frequency, Multi Count
Fourth Line:
C.Fn icon, Flash Head Orientation icon, Aperture, ash range
Wireless Triggering – Master Screen
En
INSTRUCTION MANUAL
Top Line:
Master Mode display
Zoom: Indicates auto or manual ash head zoom
Transmission Channel: 1 2 3 4
Master / Group Boxes
Each box has setting for:
Flash Mode: TTL, Manual (M), Multi, OFF (- -)
Power Level
EV Adjustment
Multi Mode Power Settings, Frequency and Flash Count
Wireless Triggering – Slave Screen
Top Line:
Slave Mode display
Zoom: indicate manual ash head zoom
Channel: 1 2 3 4
Second Line:
Group Setting (A, B, or C)
