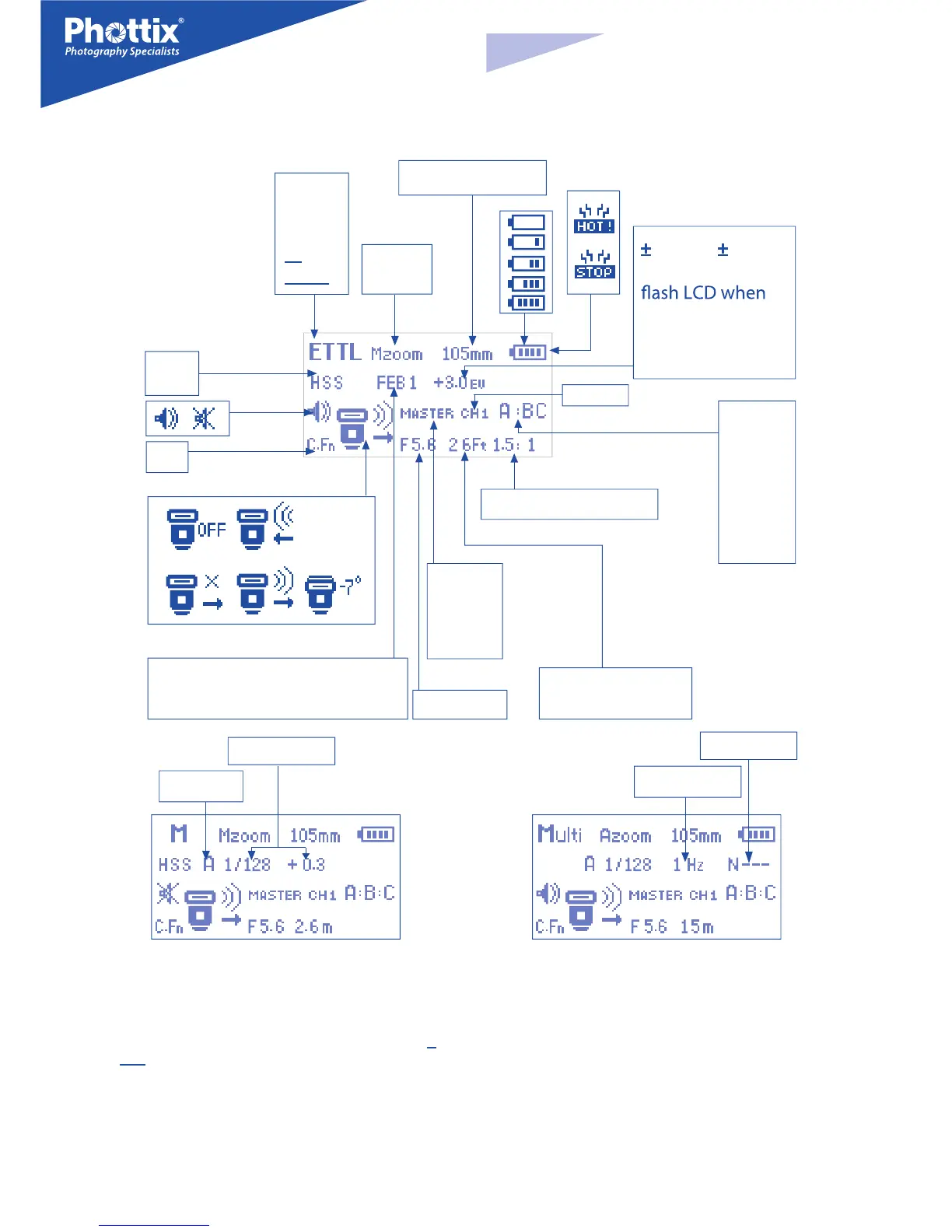

The LCD Display
The LCD display on the Phottix Mitros ash contains important information re-
garding ash settings and functions.
Top Line:
1. Flash Mode: Indicates the set mode of the ash - ETTL, Manual, Multi, M (slave
mode), Multi (slave mode)
2. Zoom: Indicates auto or manual ash head zoom and distance
3. Battery Level Indicator, Hot!, Stop
Second Line:
High Speed Sync (HSS) / Second Curtain Sync (SCS) icon
FEB, Group, Power Level, EV, Multi Mode indicators (Frequency and Flash Count)
In ETTL mode: HSS/SCS, FEB, EV
In M mode: HSS/SCS, Group, Power Level
In Multi mode: Group, Power Level, Frequency, Flash Count
Third Line:
Beep Signal Icon, “-7°” icon, Master / Slave Triggering Area – displays channel,
master/slave mode, group information
Fourth Line:
Flash and Exposure information: C.Fn icon, Aperture (f stop), ash range and
ash ratio
Aperture
CH1 – 4
Flash range
(in meters/feet)
3.0EV (" C " will
be displayed on
camera’ s EV
setting is
preferred.)
FEB Information
(Shots taken / FEB amount)
8 : 1 – 1 : 1 – 1 : 8
1/1 – 1/128
N(1 – 100)
(1 – 199) Hz
A B C
A
B
C
A : B : C
A+B+C
A : BC
A : B
SLAVE
MASTER
OFF
OS
SCS
HSS
14mm – 105mm
Azoom
Mzoom
ETTL
M
Multi
M
Multi
C.Fn
En
