4 Camera Connectors on the Polis - Carrier Boards
The development kits for the phyBOARD-Polis-i.MX 8M Mini contain:
• one carrier board (Polaris)
• one phyCORE-i.MX 8M modul SOM
The phyCORE-i.MX 8M Mini is direct soldering on carrier board.
On the base board Polis (PB-02820) we convert the MIPI CSI-2 interfaces in phyCAM-M standard.
- phyCAM-M camera interface 1 (support on connector X10)

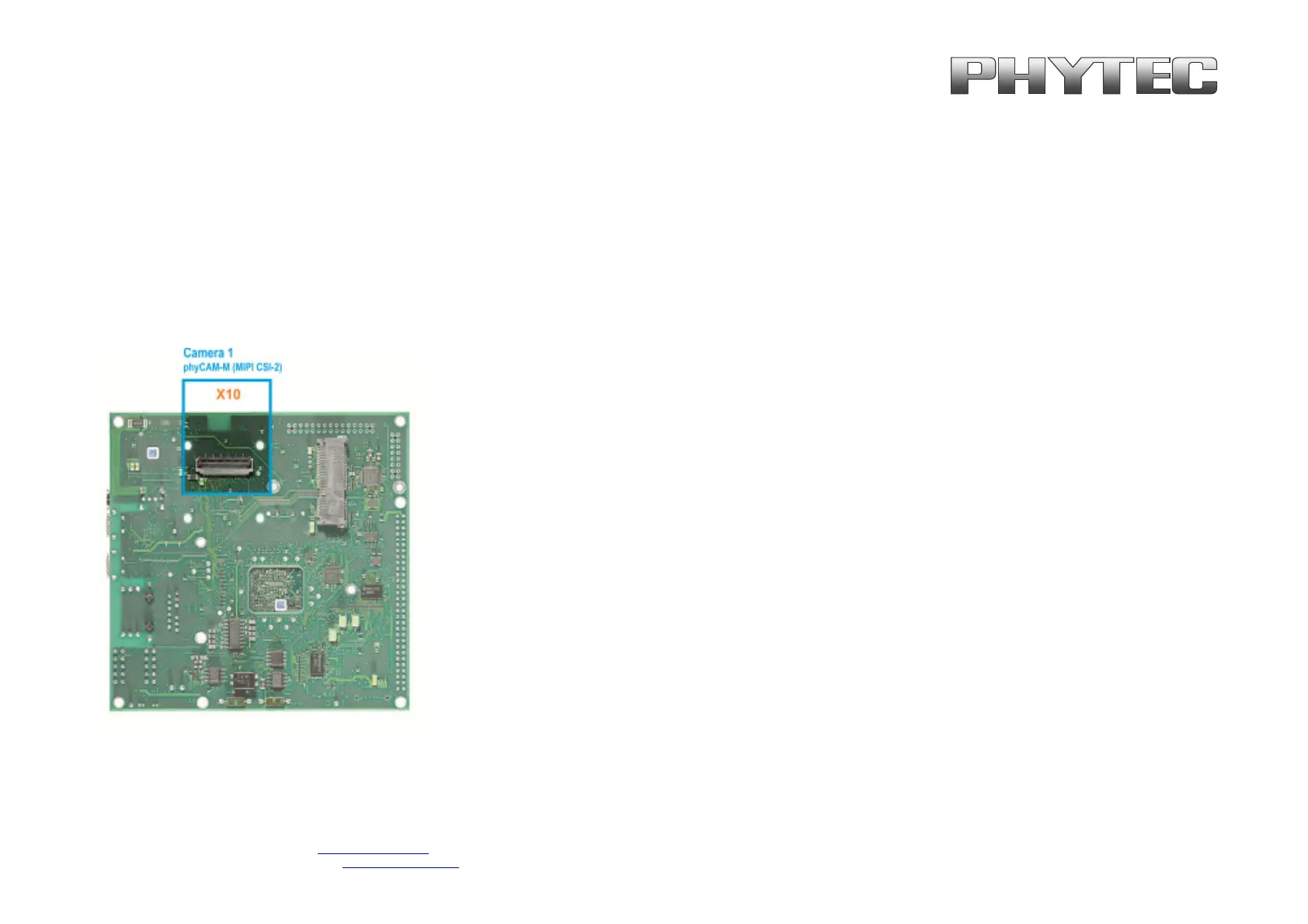

figure 4: Camera Interfaces on phyBOARD-Polis up PCB Version PL1532.1 for the phyCORE-i.MX 8M Mini SOM
Note: If you use the phyCAM-M interface, use an FFC cable that is especially suitable for FH41 connectors (e.g. Phytec WF271). Standard FFC cables can cause a
short circuit.
