PI P-587.6CD - Pin Assignment

10 Technical Data
P-587 Positioner PZ251E Version: 1.1.0 37
10.5 Pin Assignment
D-sub 25W3 panel plug: XY ROT

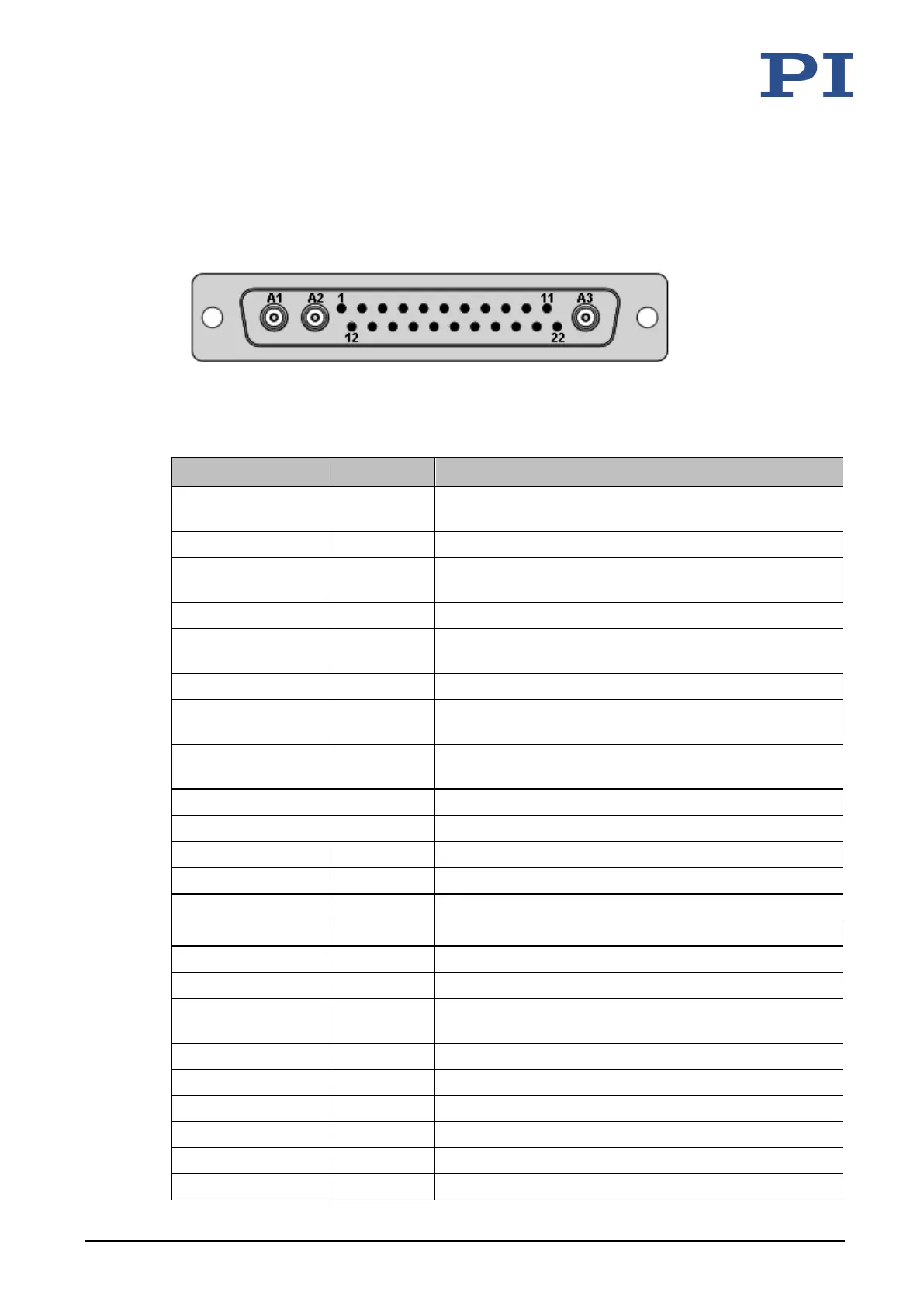

Figure 9: D-sub 25W3 connector (m): Front with connections
Pin Signal Function
A1 inner conductor
Output
Probe sensor signal, Y1
(immovable part of the capacitive sensor)
A1 outer conductor
GND
Shielding for Probe sensor signal, Y1
A2 inner conductor Output
Probe sensor signal, Y2
(immovable part of the capacitive sensor)
A2 outer conductor GND Shielding for Probe sensor signal, Y2
A3 inner conductor
Output
Probe sensor signal, X
(immovable part of the capacitive sensor)
A3 outer conductor
GND
Shielding for Probe sensor signal, X
1
Input
Target sensor signal, Y1
(movable part of the capacitive sensor)
2
Input
Target sensor signal, Y2
(movable part of the capacitive sensor)
3
GND
Ground of ID chip
4
Bidirectional
Data line for ID chip
5 Free ---
6 Free ---
7
Input
Piezo voltage +, Y1: -30 to +135 V
8
Input
Piezo voltage +, Y2: -30 to +135 V
9
Input
Piezo voltage +, X1: -30 to +135 V
10
Input
Piezo voltage +, X2: -30 to +135 V
11
Input
Target sensor signal, X
(movable part of the capacitive sensor)
12 GND Shielding for Target sensor signal, Y1
13
GND
Shielding for Target sensor signal, Y2
14
Free
---
15
Free
---
16
Free
---
17
Free
---
