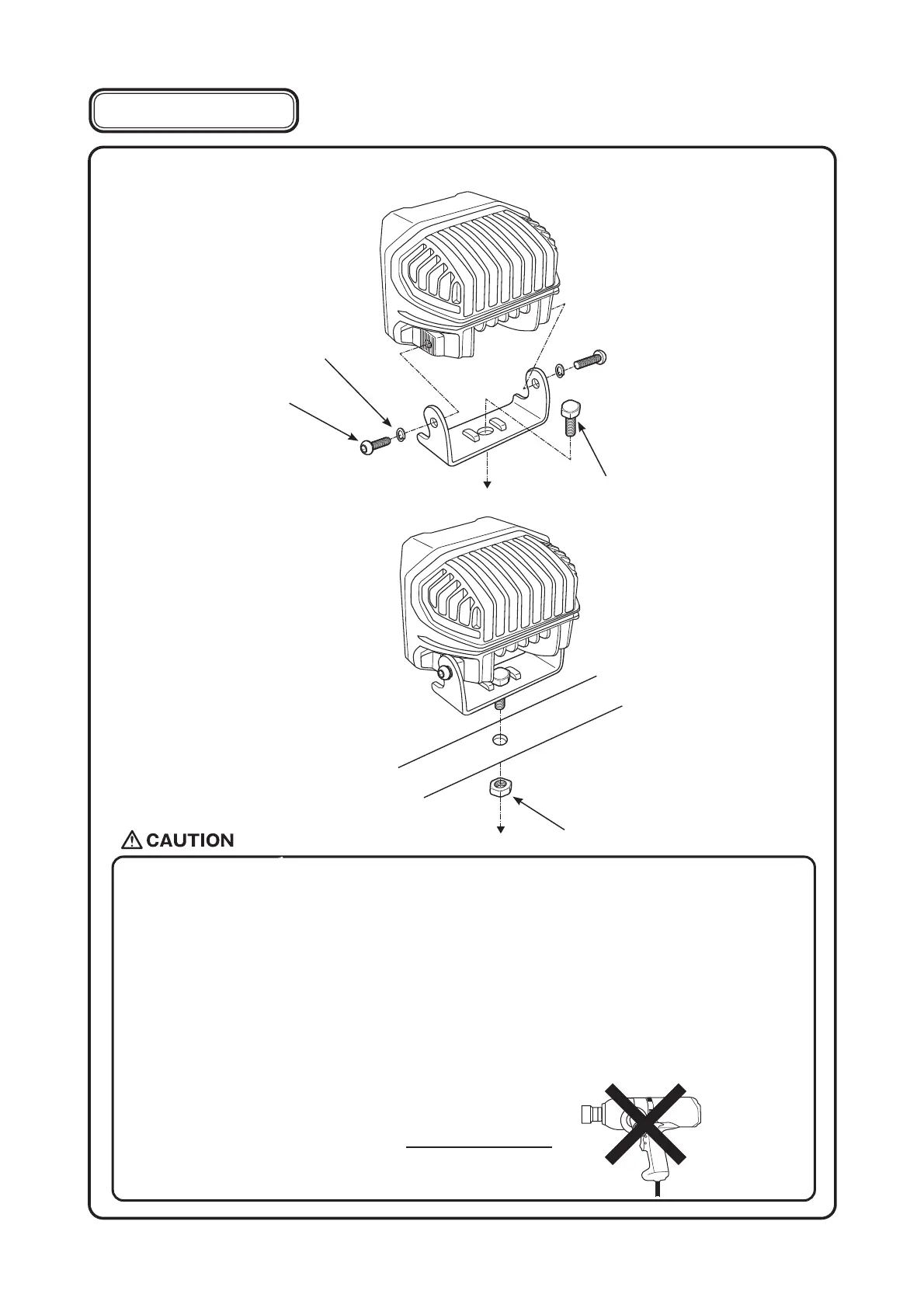

For lamp installation, a hole with a diameter of 10mm is required. Make necessary preparation such as installation
of lamp bracket.
Lamp installation
●
When using a commercially supplied lamp bracket, before removing the bolt that is already installed on the car
body, make sure that it is safe to do so.
●
The lamp should be mounted in an area su cient to support its size and weight.
●
Failure to do so may result in excess vibration leading to shorter life and or physical damage to the lamp or your vehicle.
●
Do not attempt to install the lamp directly to any plastic part of the car body.
●
If the lamp needs to be installed on the plastic reinforcement materials should be placed on both sides of the plastic part.
●
When installing, make sure the lamp body, lens and rim are not touching the bumper and other plastic parts.
Such plastic parts might deform.
●
The lamps are designed to be mounted upright. But the mounting brackets can be rotated for hanging pendant mounting.
●
Torquespecificationsonthebasemountingnutis18.5ft・lbs(25N・m)
10mm Socket head bolts
10mm Lock Nuts
6mm allen head bolts
6mm Lock Washer
①
②
②
Impactwrench
18.5ft・lbs(25N・m)
③
