03_39
03_40

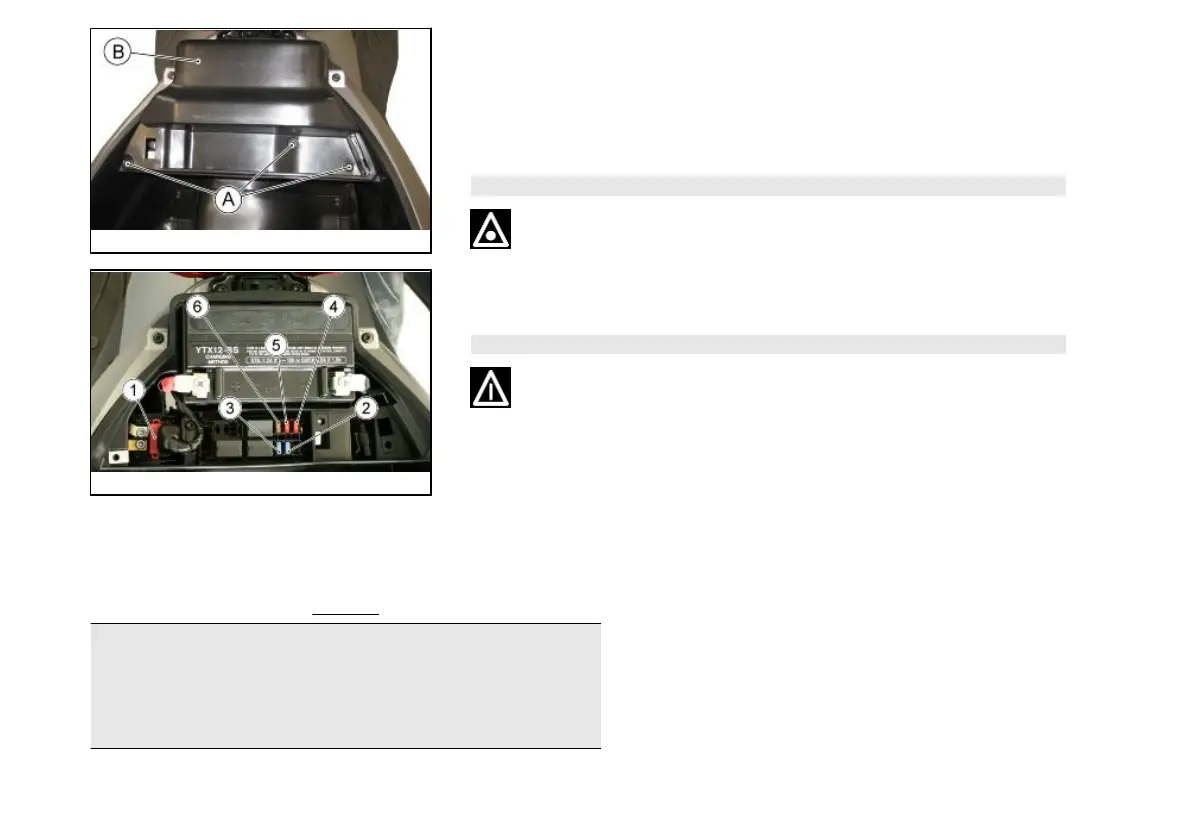

Fuses (03_39, 03_40)
The electrical system is equipped with 6 protection fuses located below the saddle.
Open the saddle and, as described above, remove the tools.
Unscrew the three screws «A» and remove the cover «B»
The chart shows the position and specifications of the fuses in the vehicle.
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE THE FAILURE THAT
CAUSED IT TO BLOW. NEVER TRY TO REPLACE THE FUSE WITH ANY OTHER
MATERIAL (E.G., A PIECE OF ELECTRIC WIRE).
CAUTION
MODIFICATIONS OR REPAIRS TO THE ELECTRICAL SYSTEM, PERFORMED
INCORRECTLY OR WITHOUT STRICT ATTENTION TO THE TECHNICAL SPEC-
IFICATIONS OF THE SYSTEM CAN CAUSE MALFUNCTIONING AND RISK OF
FIRE.
FUSES
Fuse No. 1 Capacity: 30 A
Protected circuits: general,
recharge battery
Live: fuses No. 5 and 6
58
