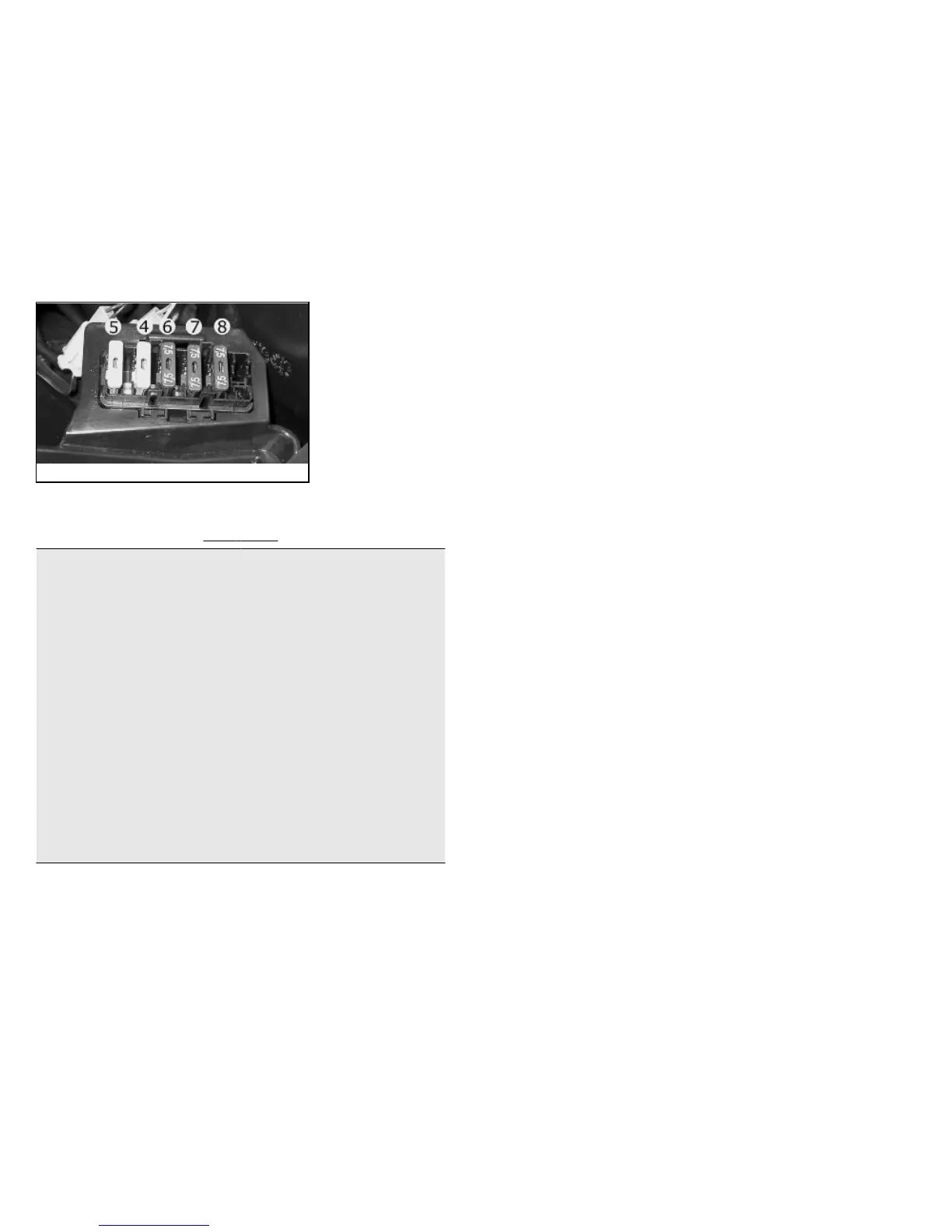

FUSE TABLE
Fuse No. 1 Capacity: 20A
Protected circuits: (for vehicles
with rear suspension control)
battery-powered: saddle opening
receiver, case lighting, headlight,
antitheft device, instrument panel,
hazard.
live: fuses 6-7-8, instrument panel
control unit.
(for vehicles with front
suspension control) battery-
powered: saddle opening receiver,
case lighting, headlight, antitheft
device, instrument panel, hazard.
live: fuses 5-6-7.
Location:battery compartment
Fuse No. 2 Capacity: 20A
63
