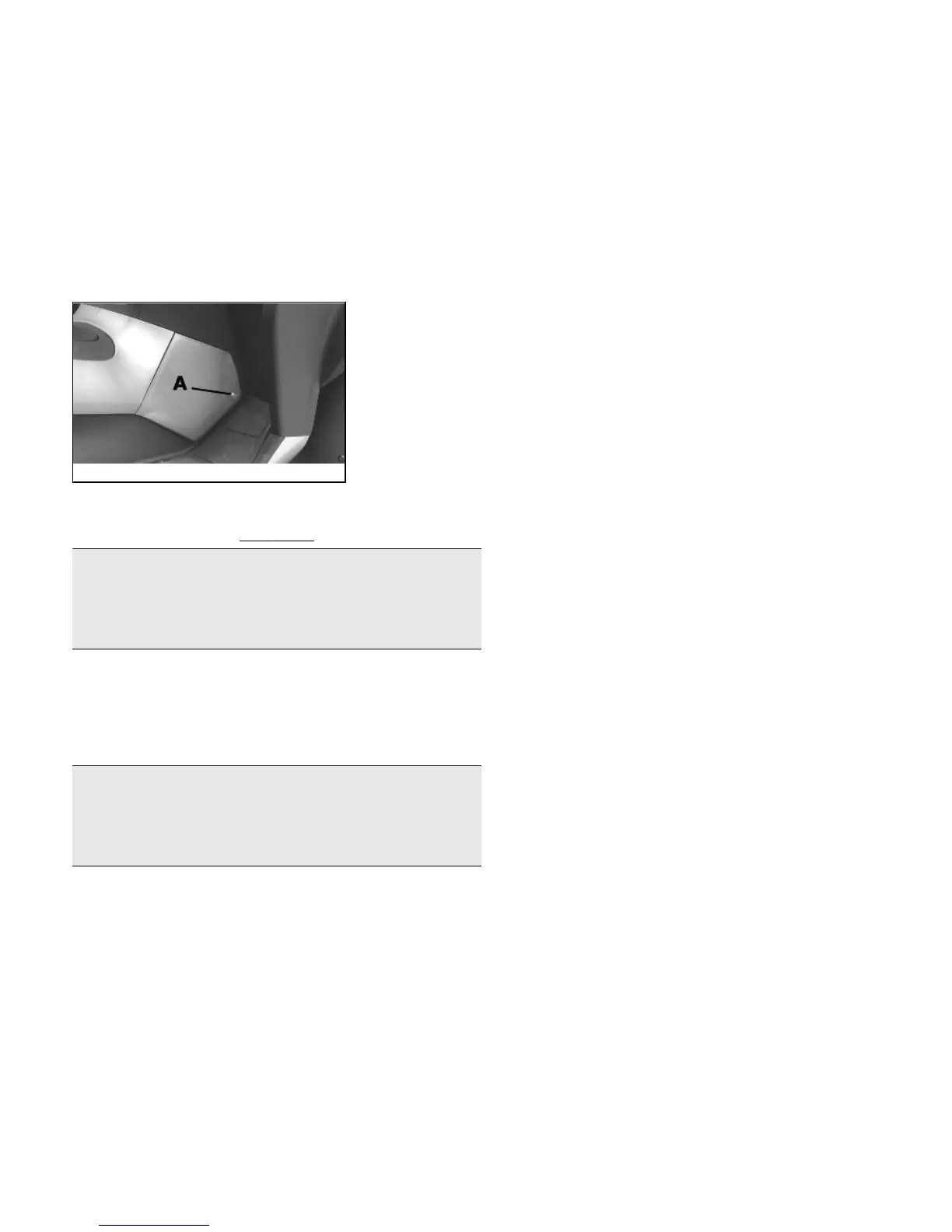

FUSE TABLE
Fuse No. 1 Capacity: 30A
Protected circuits:Voltage
regulator
Location:battery compartment
Fuse No. 2 Capacity: 20A
Protected circuits:battery-
powered fuse No. 7, live fuses No.
8 - No. 9 - No.10 - No.11
Location:battery compartment
Fuse No. 3 (if present) Capacity: 20A
Protected circuits:parking control
ECU
Location:battery compartment
Fuse No. 4 Capacity: 15 A
62
