PIAGGIO X10 500ie Executive 2012 User Manual

01_29

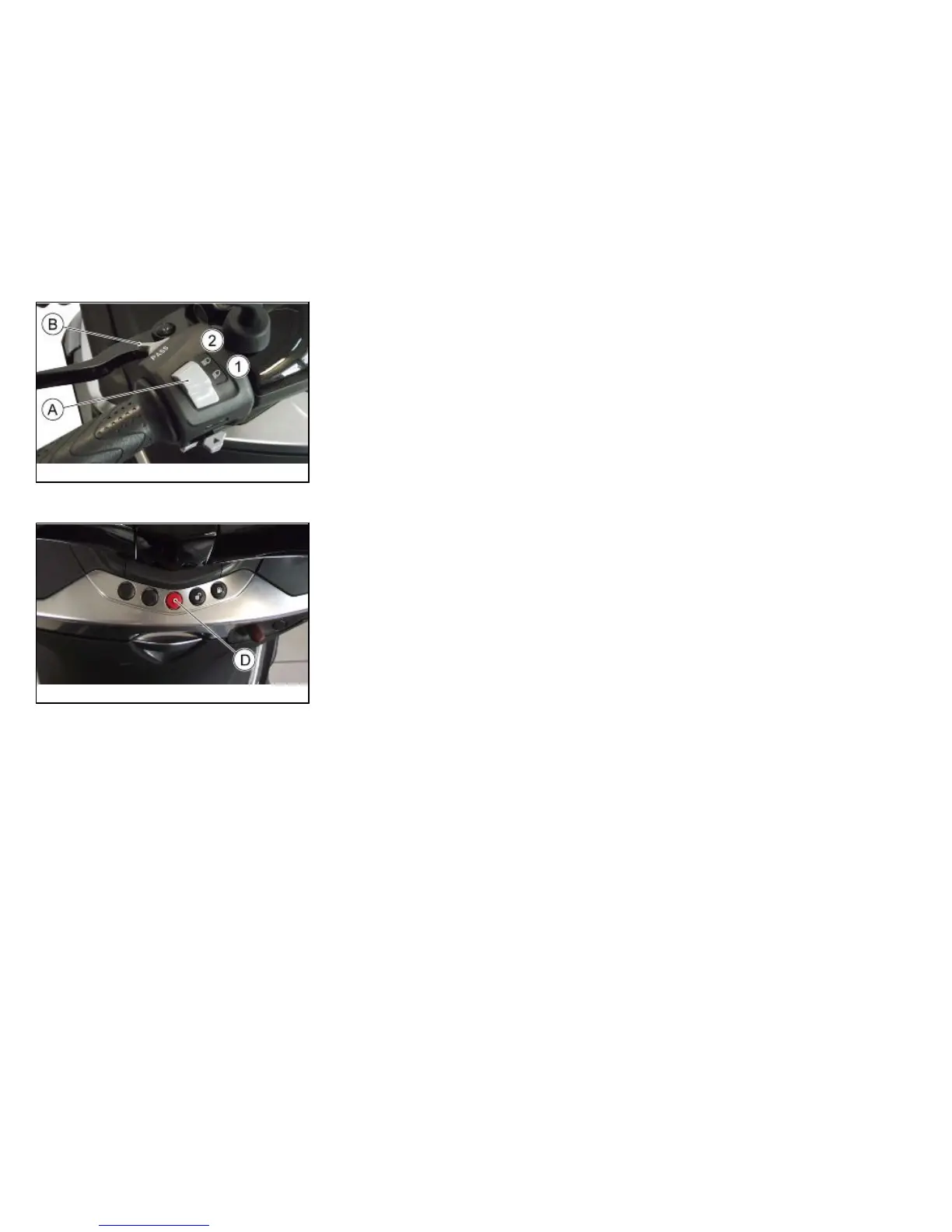

Light switch (01_29)
If the light switch «A» is set to «1», the low beam light is turned on; if it is set to «2»
the high beam is activated.
Press the «B» button to activate the low beam light flashing (passing).
01_30
Emergency flashing light button (01_30)
It enables the activation of the four turn indicators simultaneously. The control «D»
can be enabled only with the key set to «ON», but once enabled, it keeps functioning
even if the key is set to «OFF» or «LOCK». To disable this function, simply turn the
ignition switch to «ON».
27
1 Vehicle

PIAGGIO X10 500ie Executive 2012 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	493 cc
Fuel System	Electronic fuel injection
Front Suspension	Telescopic fork
ABS	Yes
Front Tire	120/70-15
Rear Tire	150/70-14
Seat Height	760 mm
Fuel Capacity	15.5 liters
Width	800 mm
Top Speed	160 km/h
Power	40 hp @ 7, 250 rpm
Cooling System	Liquid cooled
Transmission	CVT
Front Brake	Dual 280 mm discs
Rear Brake	240 mm disc
Length	2, 260 mm
Wheelbase	1625 mm
Rear Suspension	Dual hydraulic shocks
