Frontlightgroup (03_15, 03_16)

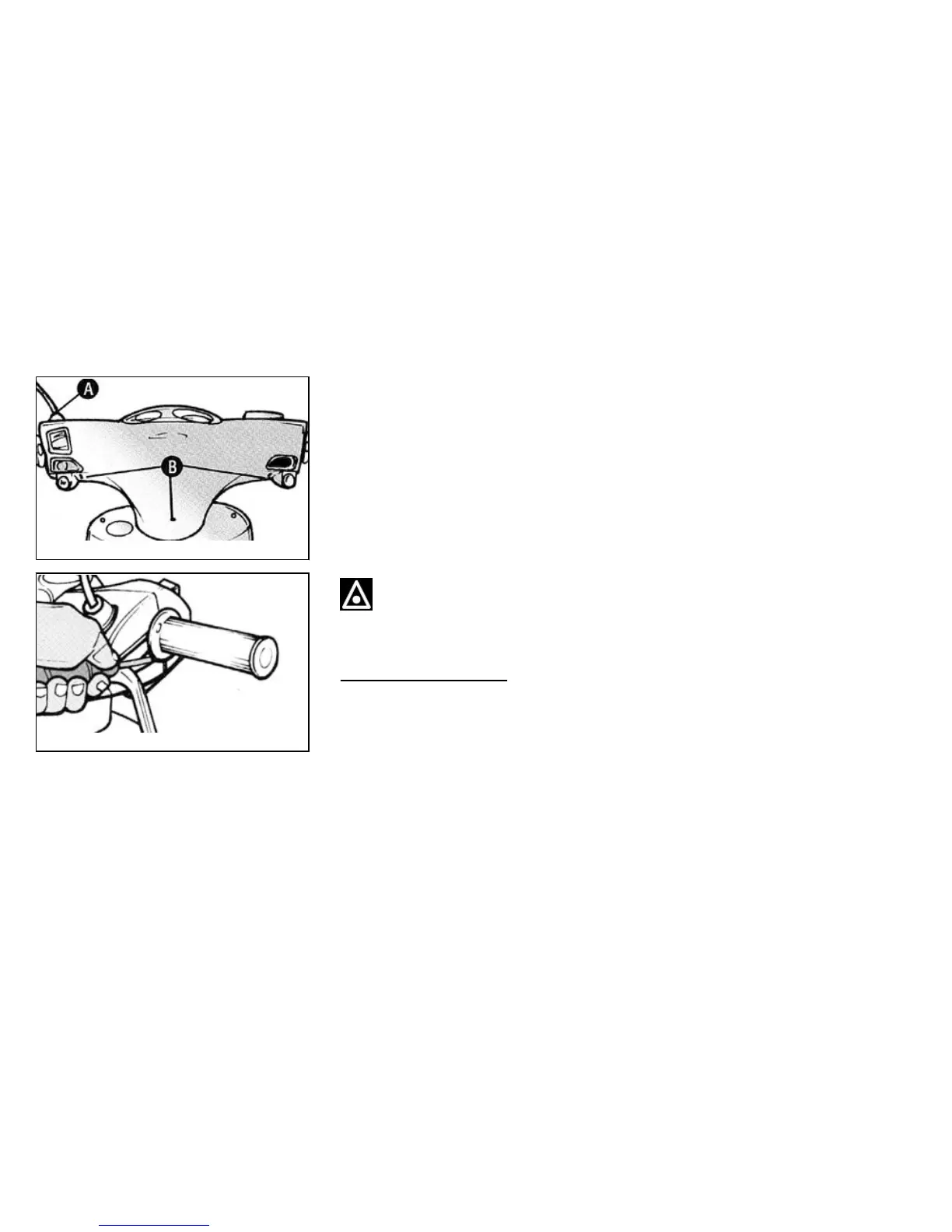

To have access to the headlight bulbs, it is necessary to remove the rear part of the
handlebar cover as follows:
Unscrew the rear-view mirror after loosening the screw «A» located under the corre-
sponding rubber protection.
Unscrew the 3 screws «B» as well.
Position the screwdriver between the front and rear handlebar cover, and levering
gently, release the right and left attachments. After removing the bulb holder joints,
move the bulb holder counterclockwise and remove it from its seat. To remove the
bulb from the bulb holder push and rotate the bulb counterclockwise.
USE A SCREWDRIVER WITH A WORKING END APPROPRIATE TO THE SCREW
SIZE TO AVOID DAMAGING THE PAINTWORK.
Electric characteristic
Bulbs
1 bulb per high-/low-beam light
