English
39

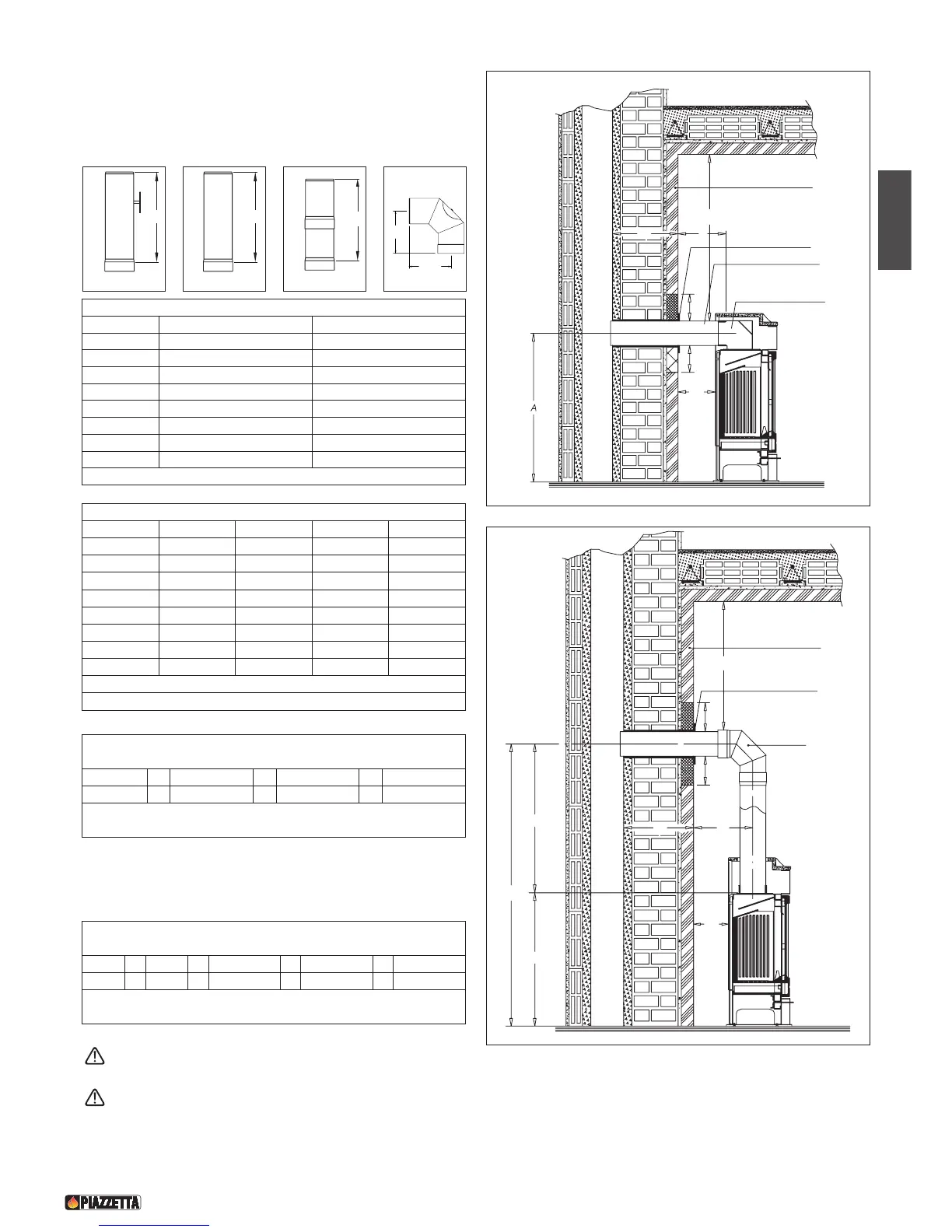

TOP - REAR flue gas outlet
IMPORTANT INFORMATION:
- Pipes with diameter 15 cm;
- 5cm must be deducted for each joint;
Having calculated the section of the hole for connection to the flue,
fix the trim collar and the wall connector pipe (Fig. 24).
Ensure that everything is installed in a workmanlike manner.
The measurements shown in the figures are approximate,
since appliance installation is envisaged in a place where
the floor is level and the wall at right angles to the floor.
DT2030200-01
Approx. calculation of the section of vertical pipe knowing “H”.
Example: H = 80 cm
80 - 24,5 + 5 = 60,5
H Elbow C6 Pipe joint Pipe lenght
One 100 cm pipe “T100” should be cut to 60,5 cm
Cut the pipe from the spigot end
Approx. calculation of the section of horizontal pipe knowing “E”.
Example on stove e917: E = 50(cm), D = 38(cm)
50 + 38 - 24,5 + 5 = 68,5
E D Elbow C6 Pipe joint
Pipe lenght
One 100 cm pipe “T100” should be cut to 68,5 cm
Cut the pipe from the spigot end
TABLE REAR FLUE GAS OUTLET (Measurements in cm)
Model Measurement A Measurement B
e911 Not envisaged Not envisaged
e912 102 29,5
e915 85 26,5
e917 93 30
e918 85 26,5
e920 102 29,5
e922 100,5 30
e923 102 29,5
Calculation of the value “B” with a minum safety distance from the rear wall of 20 cm
TABLE TOP FLUE GAS OUTLET (Measurements in cm)
Model Measurement C Measurement D Measurement H Measurement F
e911 126,5 37,5 120 246,5
e912 93 37,5 120 213
e915 76,5 34,5 120 196,5
e917 83,5 38 120 203,5
e918 76,5 34,5 120 196,5
e920 93 37,5 120 213
e922 91,5 38 120 211,5
e923 93 37,5 120 213
Calculation of the value “D” with a minum safety distance from the rear wall of 20 cm
Calculation of the values “F” and “H” with a single one-metre pipe“TR100” and one elbow “C6”
