Piazzetta P963 - Page 9

H MIN 5'
H MIN 13'
INSULATING
MATERIAL
TEE
TEE
DIRECTION
OF CLEANING
DIRECTION
OF CLEANING
DIRECTION
OF CLEANING
TEE
PELLET
STOVE
0 ÷ 10'
MIN 3%
SEE VENT MANUFACTURER'S
INSTRUCTIONS
Fig. 9
Ø 4"
Ø 3"
TEE W/TEE CAP
PELLET
STOVE
Fig. 8

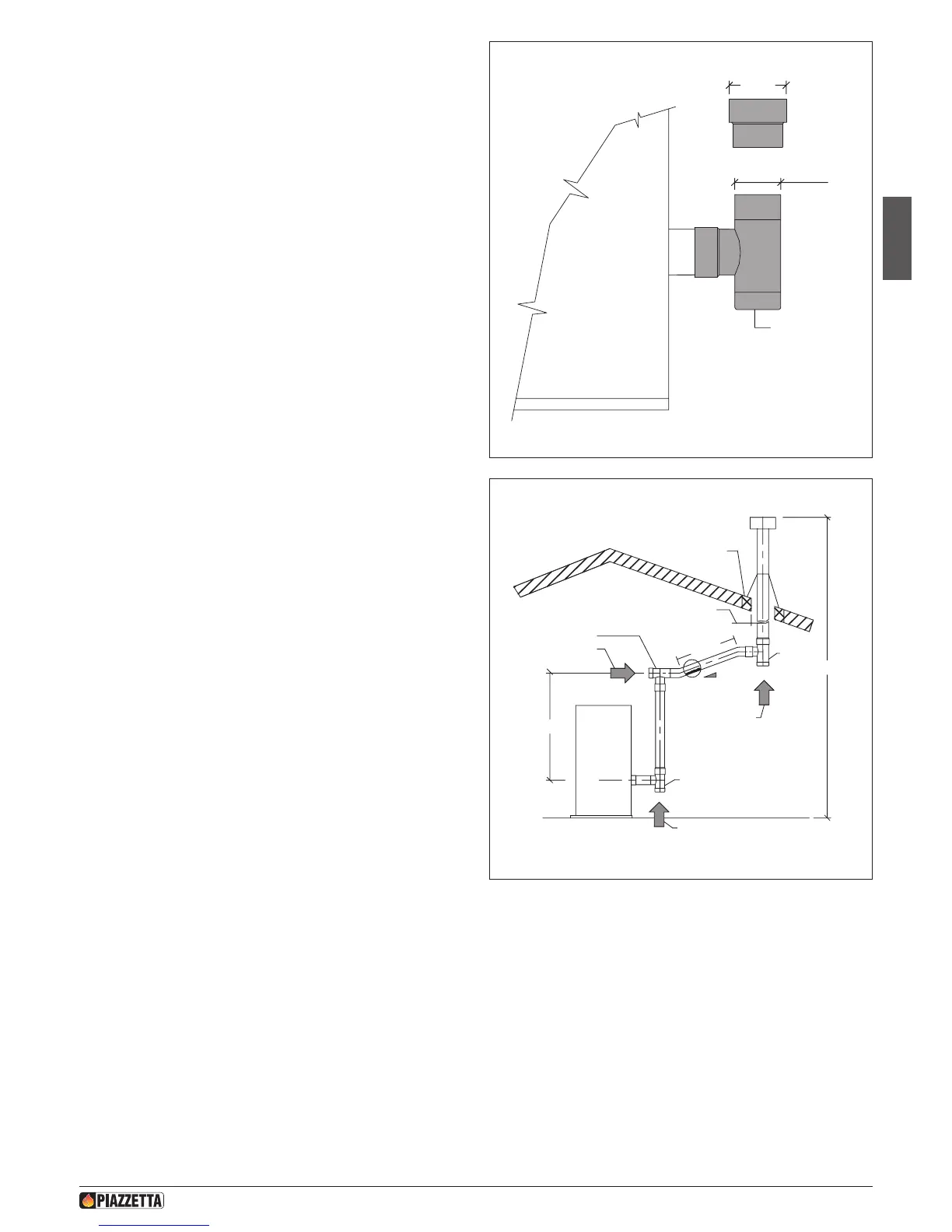

Where 4” diameter pipe must be used, connect it to the stove ue outlet
with a 3” union-tee then use a 3” – 4” adaptor (Fig. 8).
Union-tee
The use of this type of tting must allow for the collection of condensate
mixed with soot, which builds up inside the pipe.
It must also permit periodic cleaning of the ue without the need to
disassemble the pipes.
Single or double clean-out tees may be used.
An example is given below of a ueway connection, which allows
complete cleaning without having to disassemble the pipes (Fig. 9).
a Gruppo Piazzetta S.p.A. assumes no responsibility for, nor
does the warranty cover, smoke damage caused by reverse
drafting of pellet stoves under power failure conditions or as
a result of extreme negative pressure in the home.
H07032120 / DT2002308 – 00
9
English
DT2033008-01
DT2033009-00
