GENERAL
2-6 / Mid-Mount Ascendant Aerial Tower
© 2021 Pierce Manufacturing Inc. All Rights Reserved.
2-1.4 Stabilizer and Override Controls

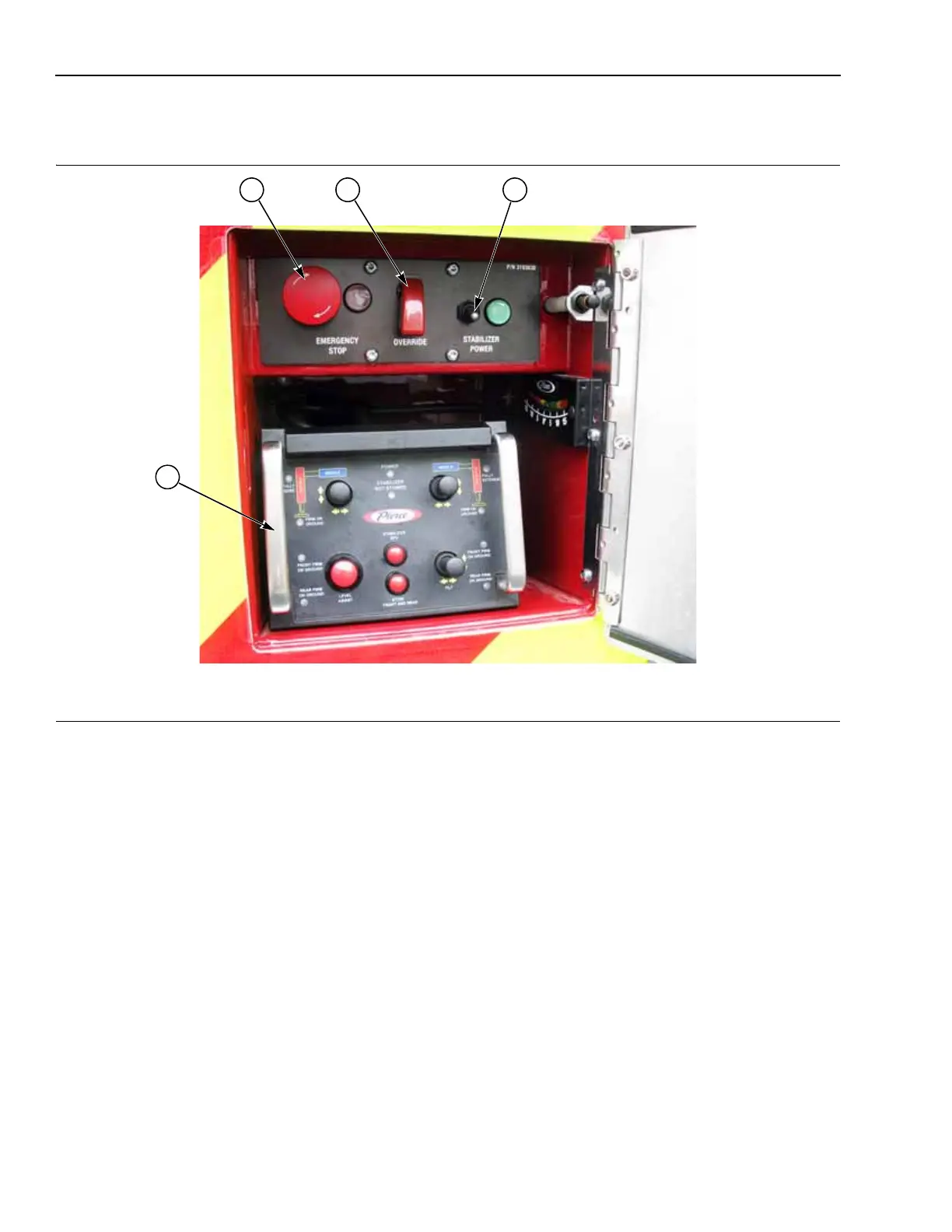

Figure 2-6: Lower Control Station
POM0825
Item # Description and Function
19. STABILIZER REMOTE CONTROL. Used to operate aerial stabilizers. See “Stabilizer Controls” on
page 2-4 for additional information.
20. EMERGENCY STOP SWITCH. Stops all aerial functions. Push button IN and rotate clockwise (to the right)
to lock switch and stop all aerial functions. Rotate counter-clockwise to allow button to pop up and reset.
21. OVERRIDE SWITCH. Overrides interlocked circuits for emergency operation.
22. STABILIZER REMOTE CONTROL SWITCH. Toggle the switch to enable the Stabilizer Remote Control.
To prevent stabilizer movement when the aerial is in use, power to the remote control shuts off
automatically when the aerial comes out of the cradle. When the aerial returns to the cradle, the switch
must be toggled again to re-enable the remote control.
As an additional safety feature, power to the remote control turns off automatically three minutes after the
stabilizers are last moved. To re-enable the remote control after three minutes of non-use, toggle the switch
again.
The switch does not function unless the aerial is cradled, the Aerial Master Switch is ON, the E-Stop switch
is OFF and all stabilizer switches are OFF.
