GENERAL
2-24 / Mid-Mount Ascendant Aerial Tower
© 2021 Pierce Manufacturing Inc. All Rights Reserved.
When the video function is enabled, a camera or “other video source” can be viewed by pressing the VIDEO button.
The color display has an NTSC compatible video input. This is generally used with a tip camera.
The PAGE button will toggle through screens with information pertaining to the apparatus. The screens vary,
depending on the options and status of the apparatus.
2-2.2b Common Screens

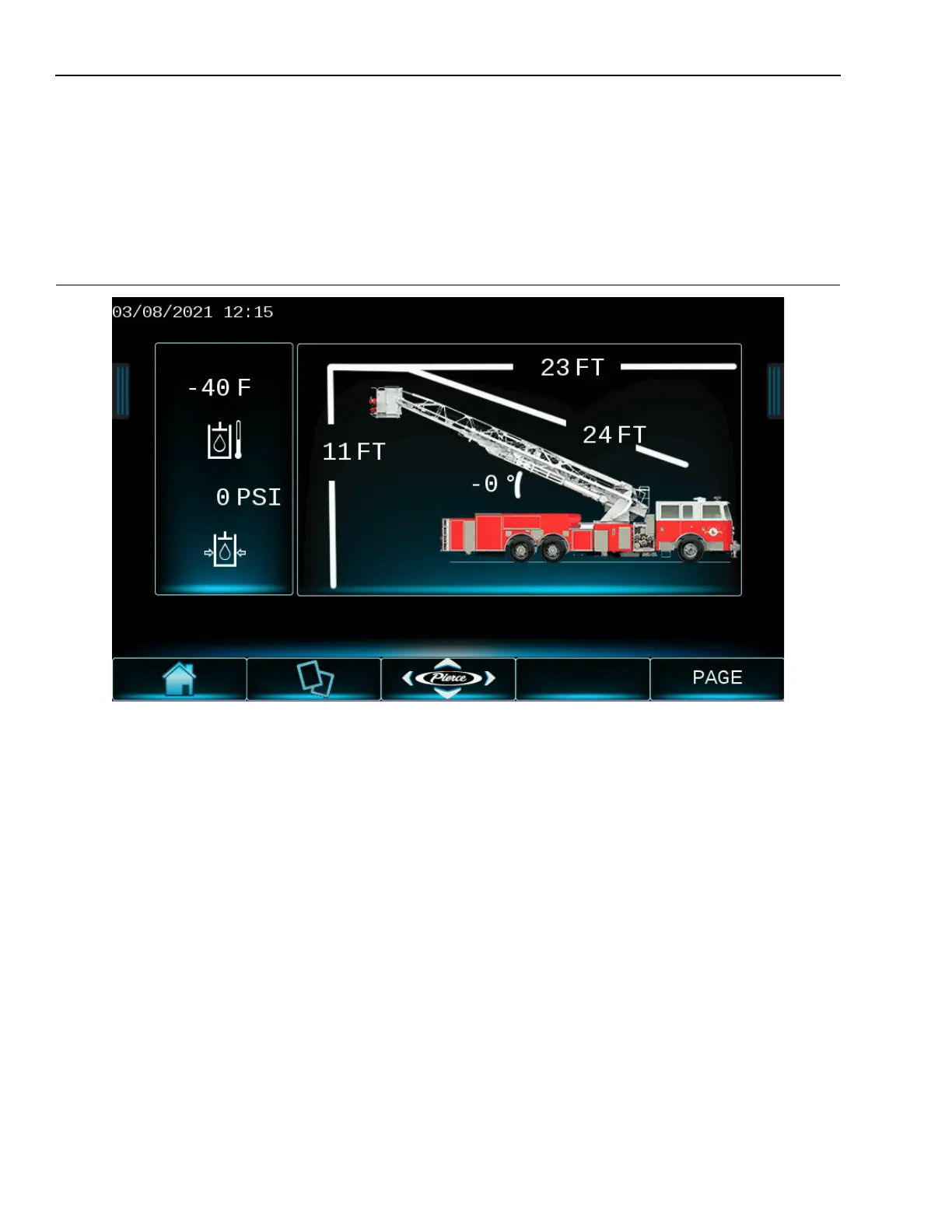

Main Aerial Screen
Figure 2-23: Main Aerial Screen
POM0853A
The Main Aerial screen displays:
• aerial hydraulic oil temperature;
• aerial hydraulic oil pressure;
• aerial dimensions - ladder reach, extension, angle and height. The ladder information is approximate and for
operator reference only.
