GENERAL

Aerial Limitation Screen

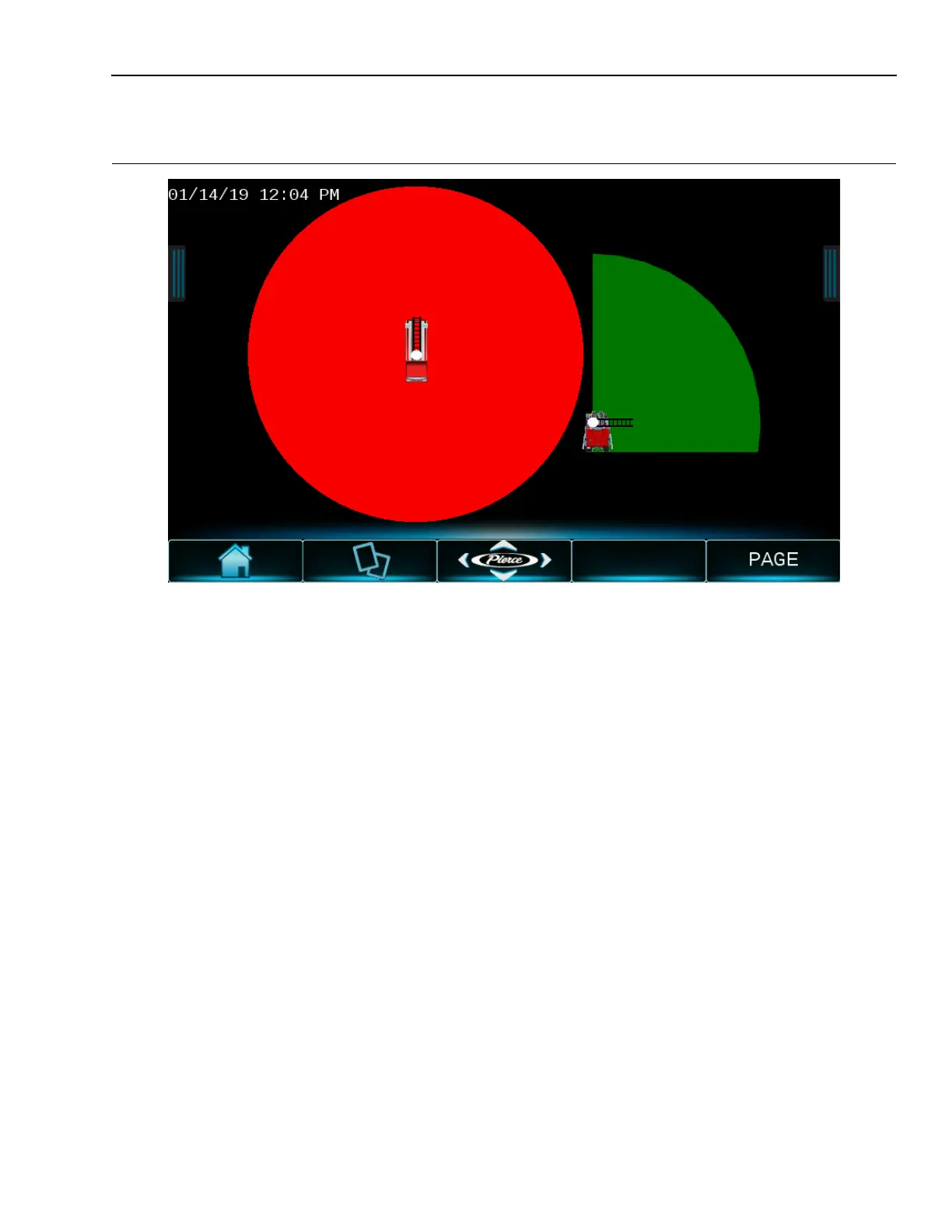

Figure 2-26: Aerial Limitation Screen

POM0854

The Aerial Limitation screen displays (Green - OKAY / Red - Not OKAY):

• allowable aerial rotation;

• allowable aerial angle;

• allowable aerial operating zones.
