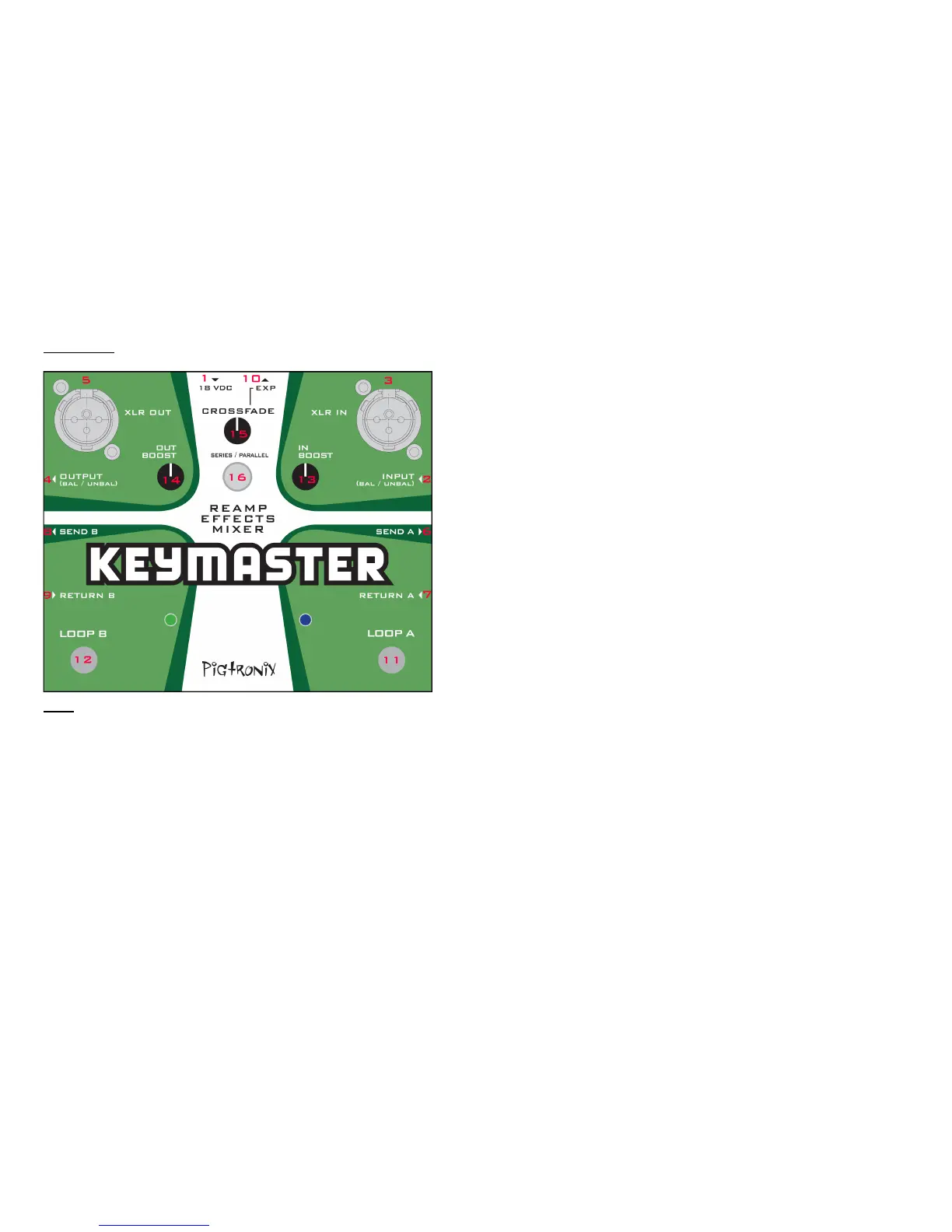

Anatomy of the Keymaster:
The Interface:
Jacks:
1. DC POWER 18-VOLTS – We suggest you use only the 18-Volt, 2.1mm
negative tip power supply that came with your Keymaster. Using the
wrong power supply is likely to result in a damaged pedal.
2. INPUT (BAL / UN-BAL) – Plug in your instrument here. TS or TRS !”
3. XLR INPUT – Plug mic / line level signals here. Note: XLR INPUT is
bypassed when 1/4” input is in use.
4. OUTPUT (BAL / UN-BAL) – Plug in your amp, mixer, or DI box here. TS or
TRS !”
5. XLR OUTPUT – Output mic / line level signals here. Note: XLR OUTPUT is
bypassed when 1/4” output is in use.
6. SEND A – Send to input of pedal chain for LOOP A
7. RETURN A – Return from pedal chain for LOOP A
