>> Install microphone hanger:
Choose a location which will don’t interfered witch
the driver. Using supplied self-tapping screws and
pads (2 sets) to fix the hanger.
>> Install external speaker:
If use an external speaker, please choose 8
Ω speaker with 3.50 mm mono jack plug.
1. Locate the external speaker in a
suitable place.
2. Plug to the EXT.SP speaker jack to
the rear panel of the radio.
GETTING ACQUAINTED
:

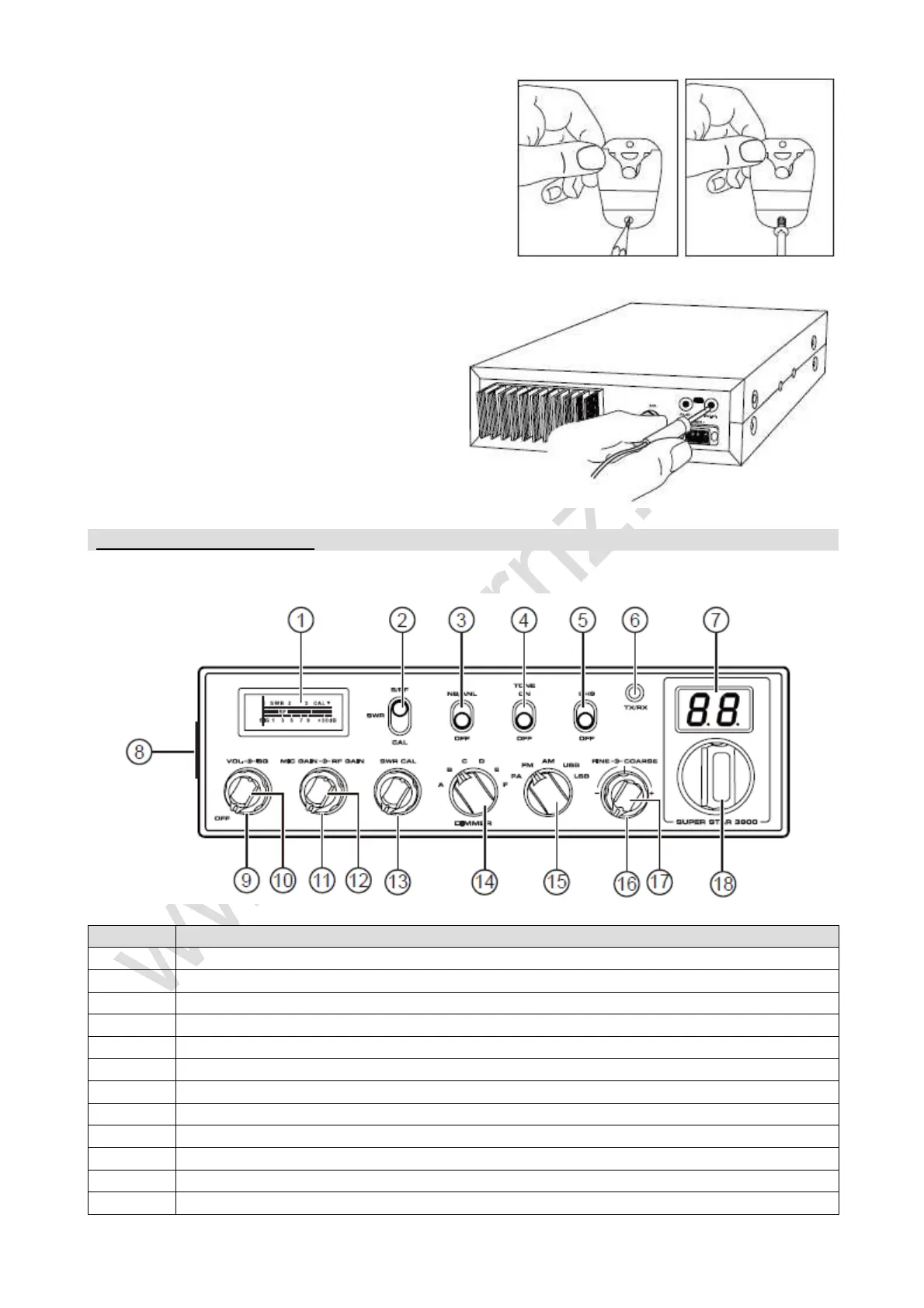

>> Front panel:
N
o.
Func
t
i
o
n
1 Analogue meter.
2 S-RF/SWR/Calibration SWR switch.
3 NB/ANL functions ON/OFF switch.
4 TONE function ON/OFF switch.
5 CH9 (Emergency channel) ON/OFF switch.
6 TX/RX indicator.
7 Channel number.
8 Microphone connector.
9 Squelch level control.
10 Power ON/OFF and volume adjust.
11 RF gain control.
12 MIC gain control.
