Connection and Operation

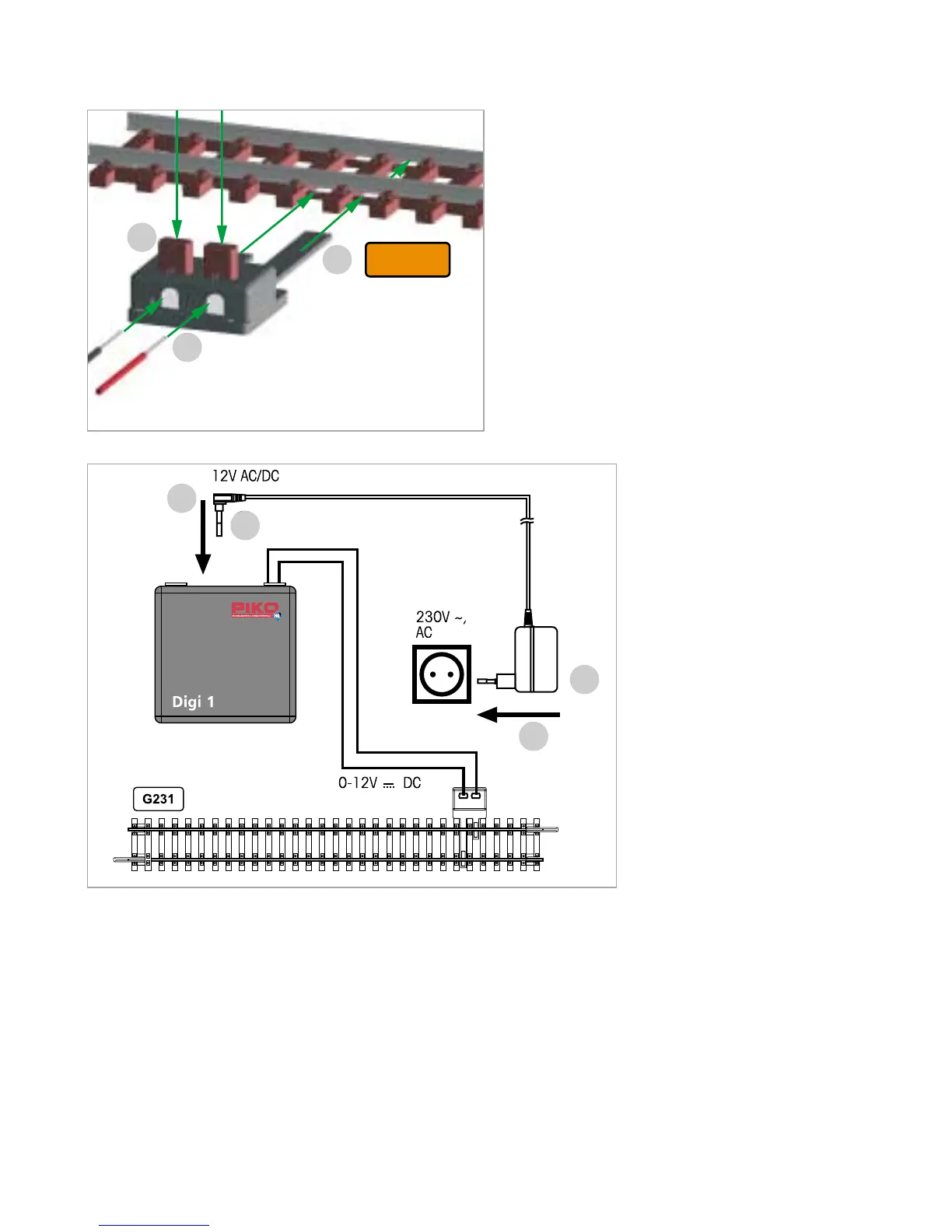

The mains plug (mains adapter) ➀ is
connected via the small plug
➁ to the
socket in the PIKO Digi 1. The two con-
nection leads marked "A" on the bot-
tom of the PIKO Digi 1 are first fixed in
the connecting clip
➂ by pressing the
knobs
➃ and are then connected to the
rails as follows:
Insert the connecting clip
➂ into the
rail
➄ (only this rail has slits between
sleepers 5 and 7 for the clip). Now
insert the adapter
➀ iinto the socket ➅.
Please note: if you are using the PIKO Connecting Clip #55270 then the condenser in
the clip MUST be removed. If the condenser is left in the Connecting Clip it will elimina-
te the high frequency control impulses and neither locos or accessories will work.
Next the 4 batteries for the PIKO Digi remote control must be inserted into the battery
compartment on the back as described.
Batteries of the following types can be used: LR03-AAA-1.5V.
