Pilatus PC-24 - Page 48

BETWEEN
10 AND 20
DEGREES
MAXIMUM CARGO STRAP ANGLE
MAXIMUM RECOMMENDED CARGO DIMENSIONS
45.5 in ( 1,156 mm )
47.2 in ( 1,200 mm )
ICN-PC24-A-A15000000-A-S4080-05029-A-002-01

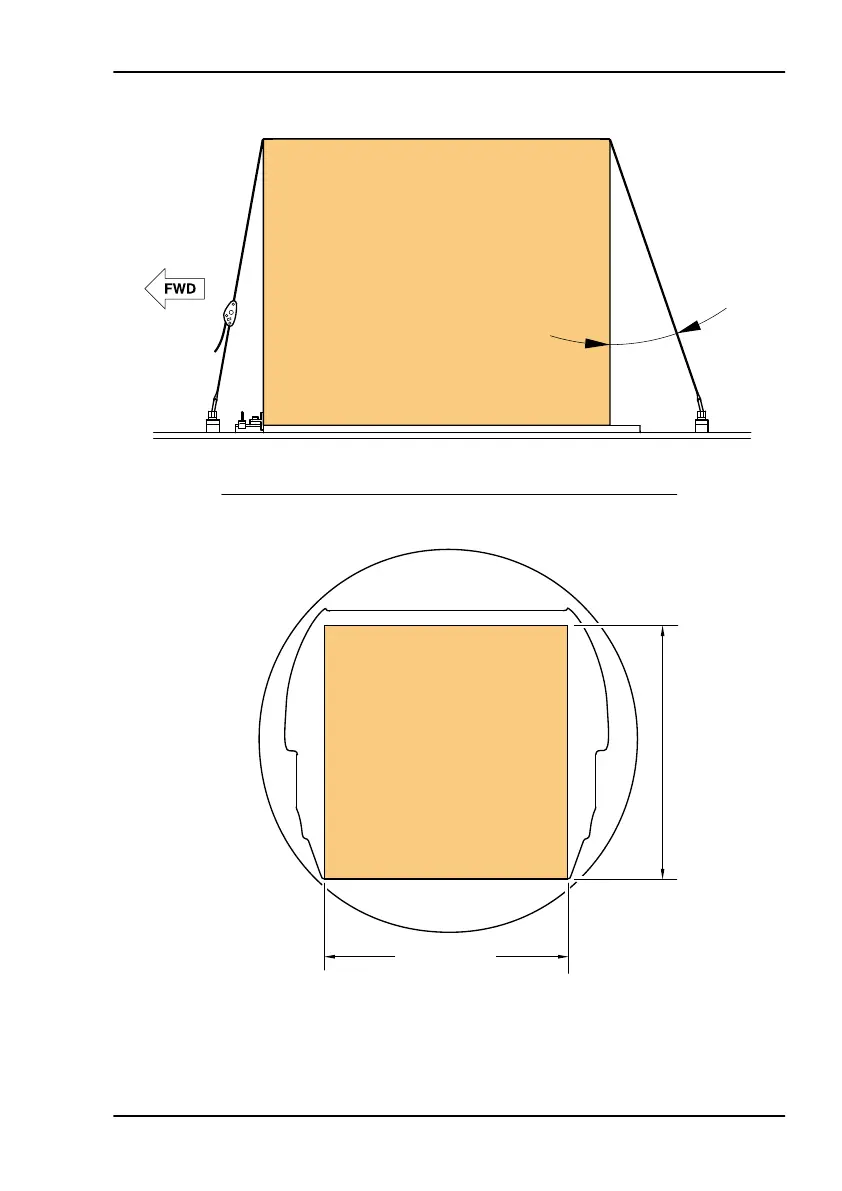

Figure 1-4-3: Maximum Cargo Dimensions and Strap Angle
