PILLAR MACHINE H49 - Page 21

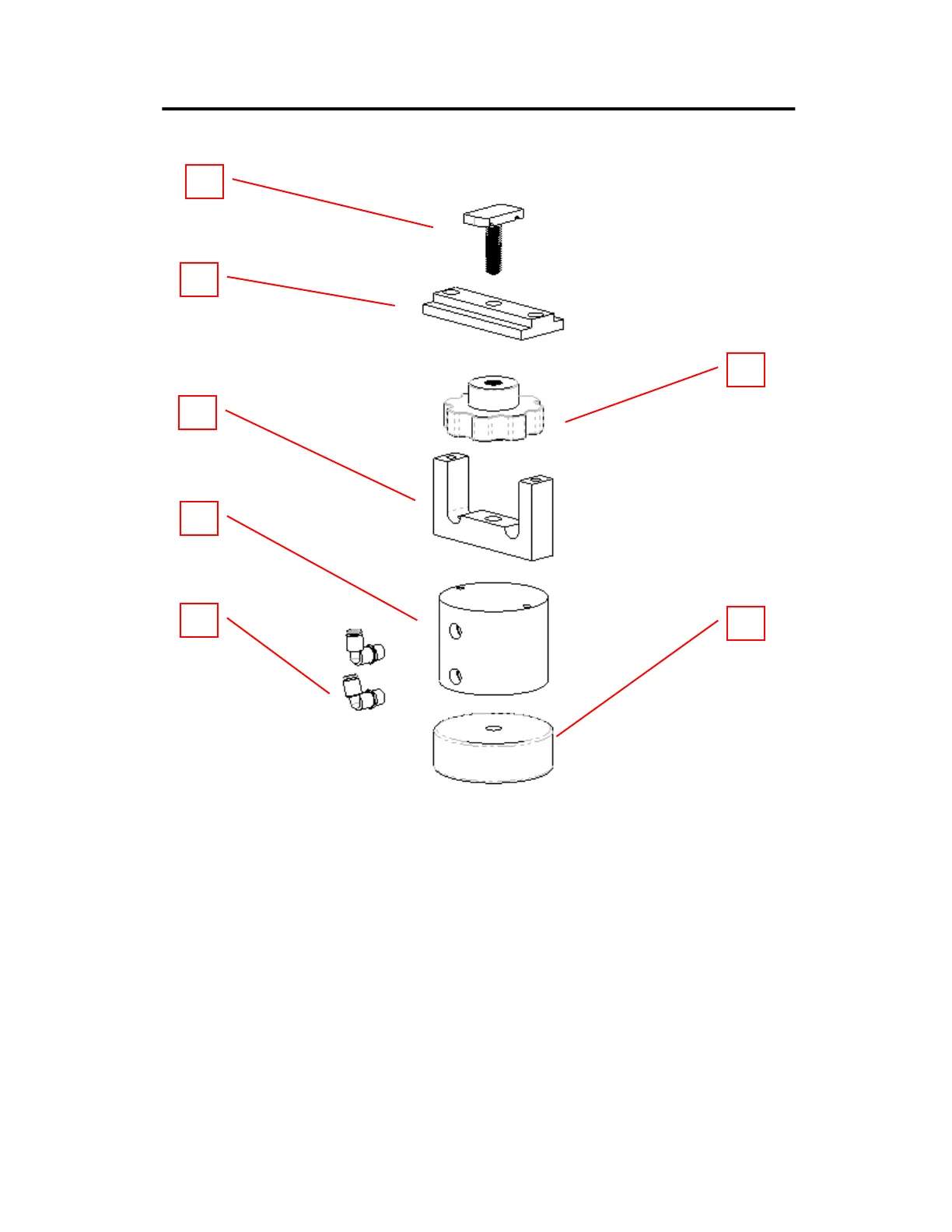

VERTICAL AND HORIZONTAL CLAMP
1 G9000 TENSION SCREW
2 J06591 GUIDE RAIL PLATE
3 J06590-1 CLAMP FRAME
4 P0010 CLAMP CYLINDER
5 F2500-1 AIR FITTING
6 G6300 KNOB
7 G8112 CLAMP FOOT
5
4
3
8
6
2
1
