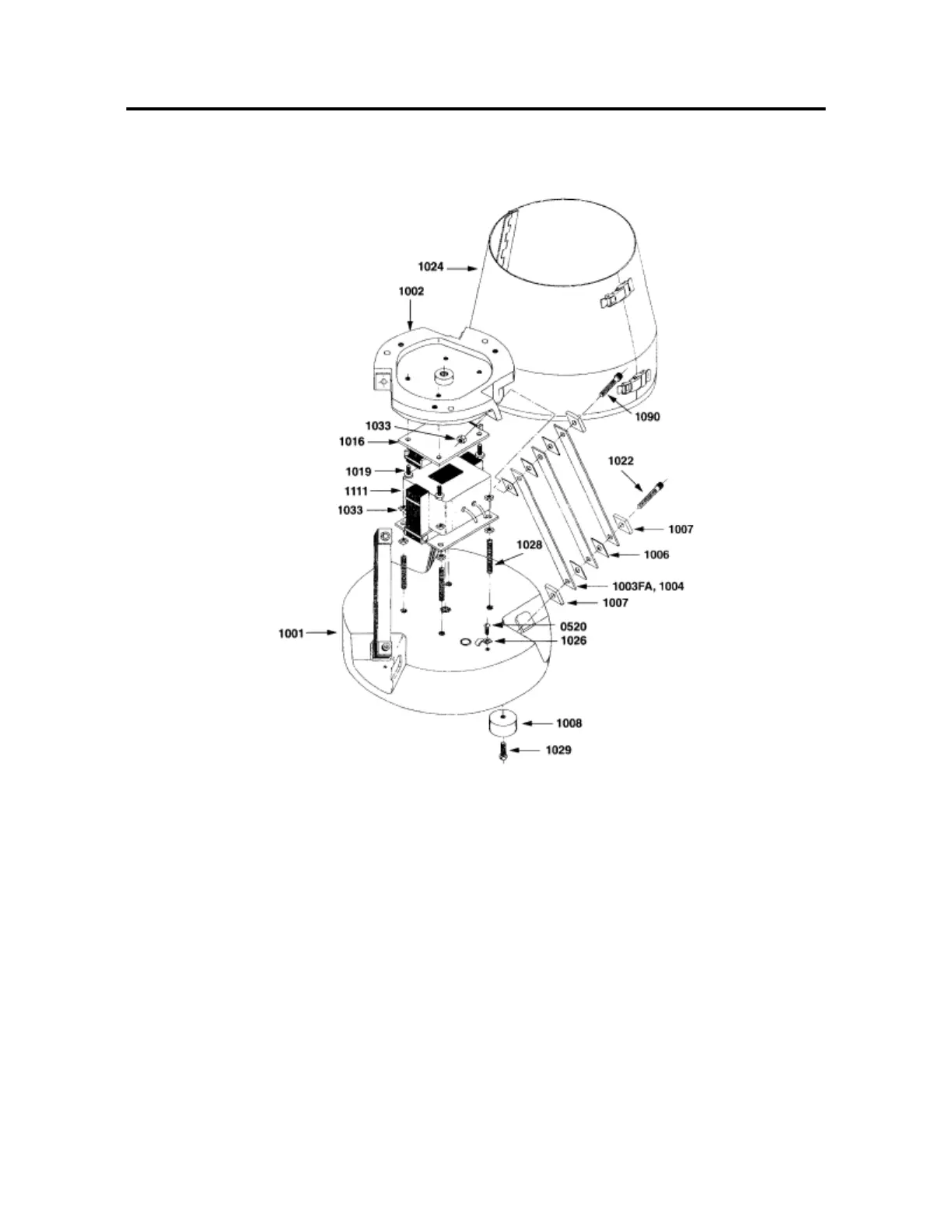

PILLAR MACHINE H49 - Bowl Driver

G2760 Model 10 Clockwise Rotaon
G2732 Model 10 Counter Clockwise Rotaon (used in 2 bowl opon only)
BOWL DRIVER GENERAL INSTRUCTIONS
1001 BASE
1002 TOP
1003FA SPRING
1004 SPRING
1006 SPRING SPACER
1007 SPRING PAD
1008 FOOT
1016 ARMATURE
1019 5/16—18 X 1/2 HHCS
1022 5/16—18 X 1 1/2 SHCS
1024 SHELL
1026 CABLE CLAMP
1028 5/16—18 X 1 3/4 STUD
1029 1/4—20 X 5/8 RHSMS
1033 5/16—18 HEX NUTS
1090 5/16—18 X 2 SHCS
1112 220 VOLT COIL
0520 10-32 X 3/8 RHSMS
