Pima FORCE Series User Manual

FORCE Series Intruder Alarm System User Guide
10 PIMA Electronic Systems

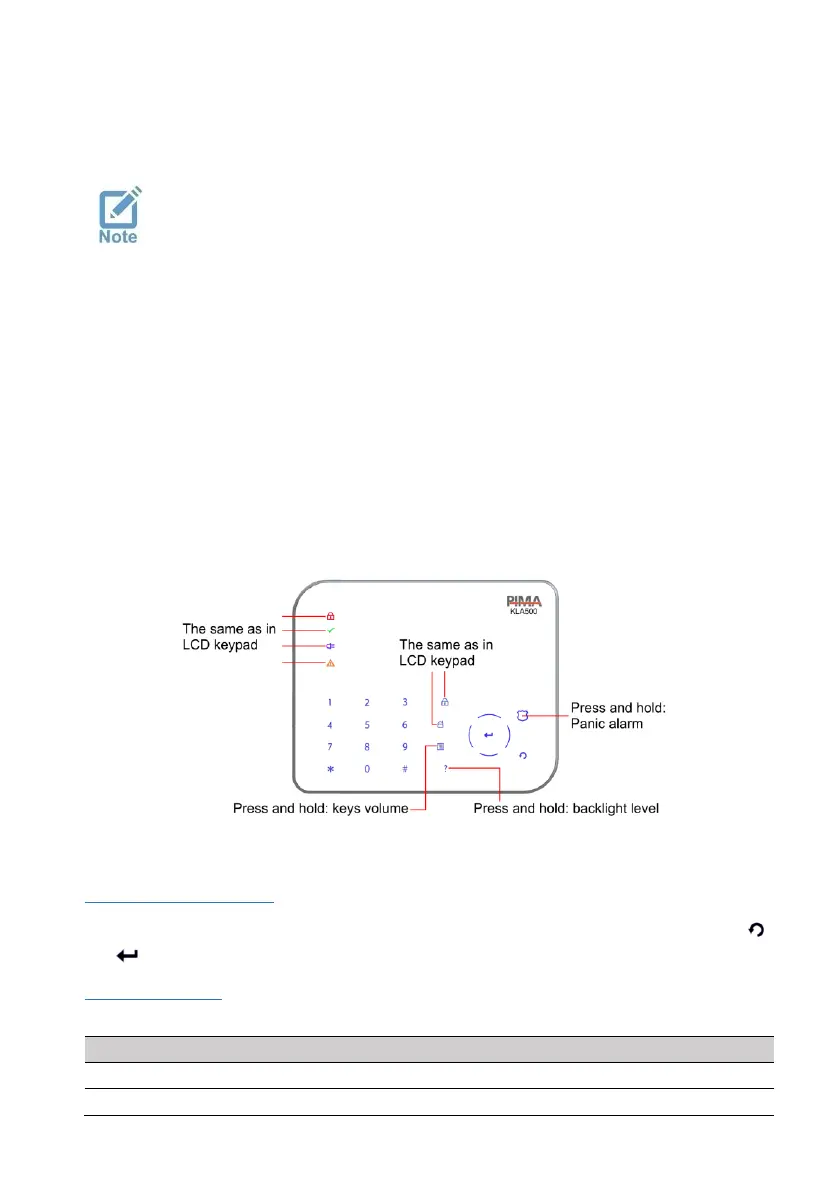

2.3 KLA500 arming station
The KLA500 is a wired arming station. It is used for arming and disarming, and activating
devices (using Operation codes; see page 17). The keypad connects to the control panel’s bus
and has touch keys.
In addition to the KLA500, we recommend using a minimum of one LCD keypad
on every premises.
2.3.1 Main features
 Arming and disarming using only user codes (the Master user code is not in use).
 4 status LEDs
 Uses PIMA proprietary communication protocol
 Back tamper
2.3.2 Technical specifications
 Communication voltage levels: 0, +12V
 Operating Voltage Range: 9-14 VDC
 Current Consumption: 50mA idle, 90mA max.
 Sizes: 15 x 12 x 2cm
 Weight: 163gr
 CE compliance
 Operating Temperature: -10 to +55 °C
 Humidity (Max.): 93% R.U., Non-
condensing.
2.3.3 Quick guide
 For the system status LEDs, refer to page 7.
 For Keypad alarms , see section 2.1.5 above.
Silencing the keypad
To silence the keypad’s buzzer (including the chime) and keys completely, press together the
and keys. Press again to re-activate the buzzer (toggle).
Operation keys
Press and hold the keys described in the next table, for the following operations:
Key
Operation
1-4
Arm to Home 1-4 modes
*
Turn on/off the chime
