10 Front panel controls

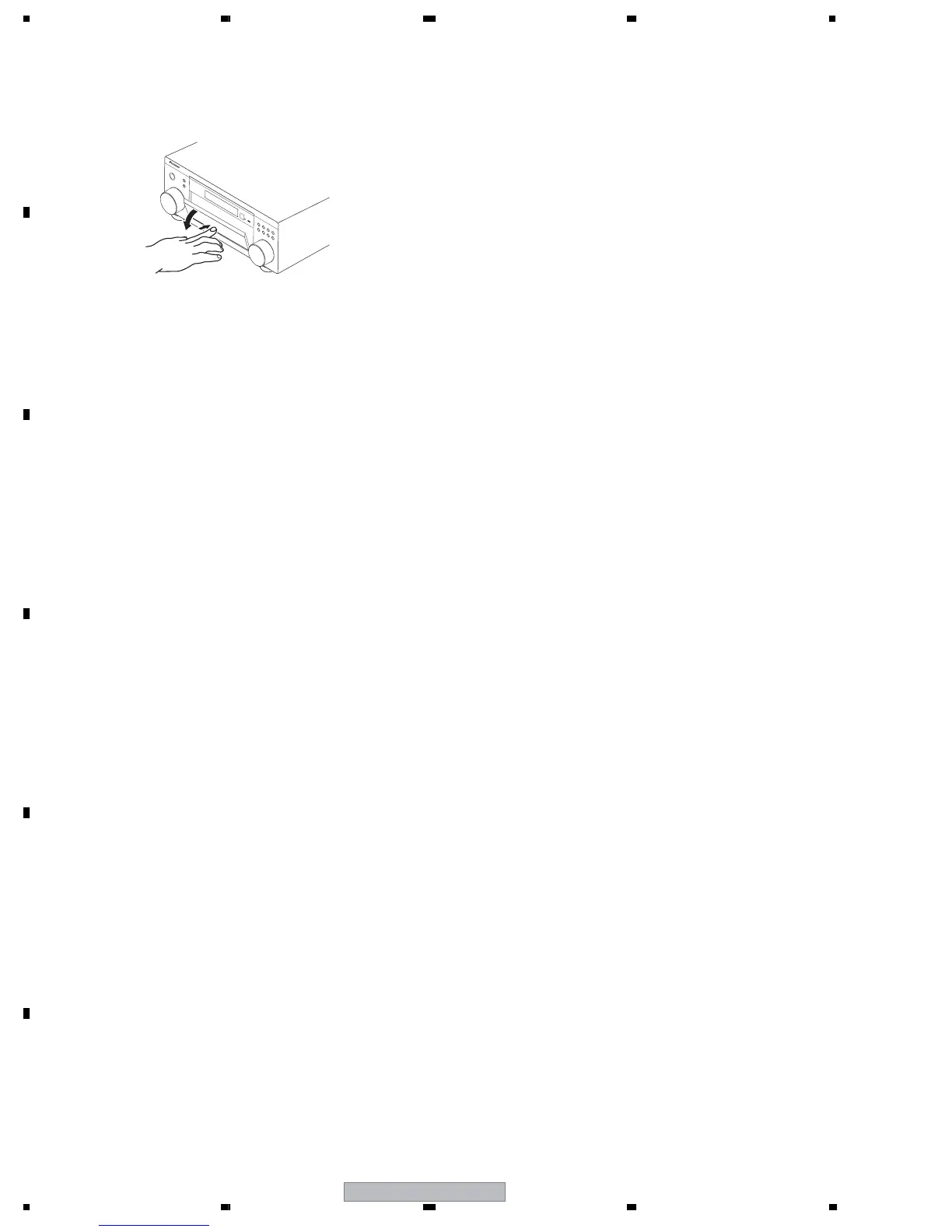

To access the front panel controls, push gently on the
lower third portion of the panel with your finger.
11 TUNER CONTROL
TUNER EDIT
Use with the MULTI JOG dial to memorize and name
stations for recall.
TUNING/STATION
Use with the MULTI JOG dial to select station presets
and radio frequencies.
BAND
Switches between AM and FM radio bands.
MPX
Press to receive a radio broadcast in mono.
12 MIDNIGHT/LOUDNESS
Use Midnight when listening to movie soundtracks at low
volume. Use Loudness to boost the bass and treble at low
volume.
13 TONE
When the STEREO mode is selected, press this button to
access the bass and treble controls, which you can then
adjust with the MULTI JOG dial.
14 ACOUSTIC EQ
Press to select an Acoustic Calibration EQ setting.
15 DIALOG ENHANCEMENT
Use to make dialog stand out when watching TV or a
movie.
16 MULTI CH IN
Press to select the component connected to the MULTI
CH IN terminals (for example, a DVD-Audio player).
17 SIGNAL SELECT
Use to select an input signal.
18 EXTENDED MODE
Selects the surround back channel mode or
virtual surround back mode.
19 SPEAKERS
Use to change the speaker system.
20 VIDEO2 INPUT
21 MCACC SETUP MIC jack
Use to connect the supplied microphone.
22 MULTI ROOM controls
If you've made multi-room connections use these controls
to control the sub room from the main room.
23 System Setup menu controls
SYSTEM SETUP
Use with the MULTI JOG dial to access the System
Setup menu.
RETURN
Press to confirm and exit the current menu screen.
24 PHONES jack
Use to connect headphones. When the headphones are
connected, there is no sound output from the speakers.
