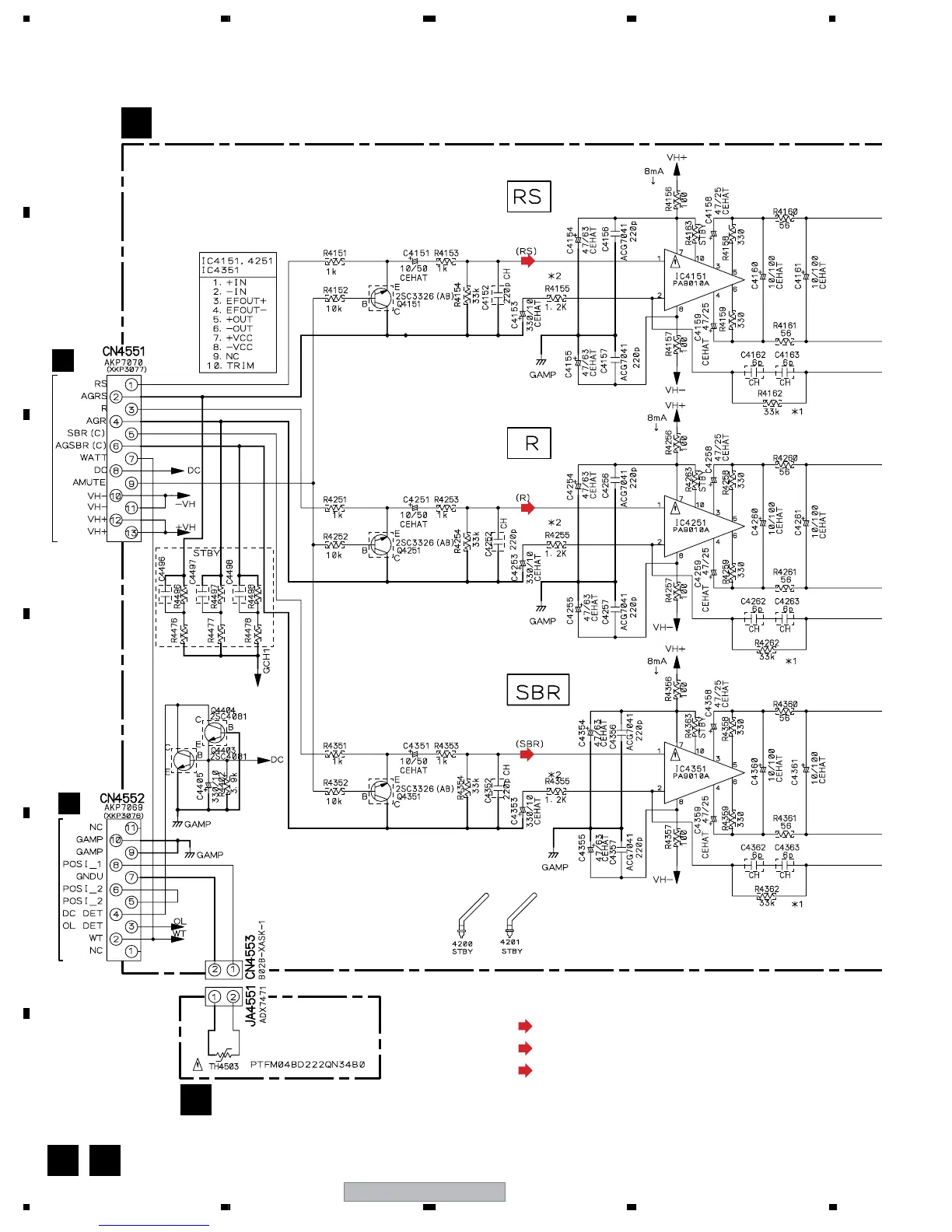

3.16 POWER AMP-R and POSI 1 R ASSYS
POWER AMP-R ASSY (AWX8404)
U
POSI 1 R ASSY
(AWX8426)
V
CN4002
Q
CN4052
R
U V
(R)
: AUDIO SIGNAL ROUTE (FRONT Rch)
(RS)
: AUDIO SIGNAL ROUTE (SURROUND Rch)
(SBR)
: AUDIO SIGNAL ROUTE (SURROUND BACK Rch)
