8. PANEL FACILITIES

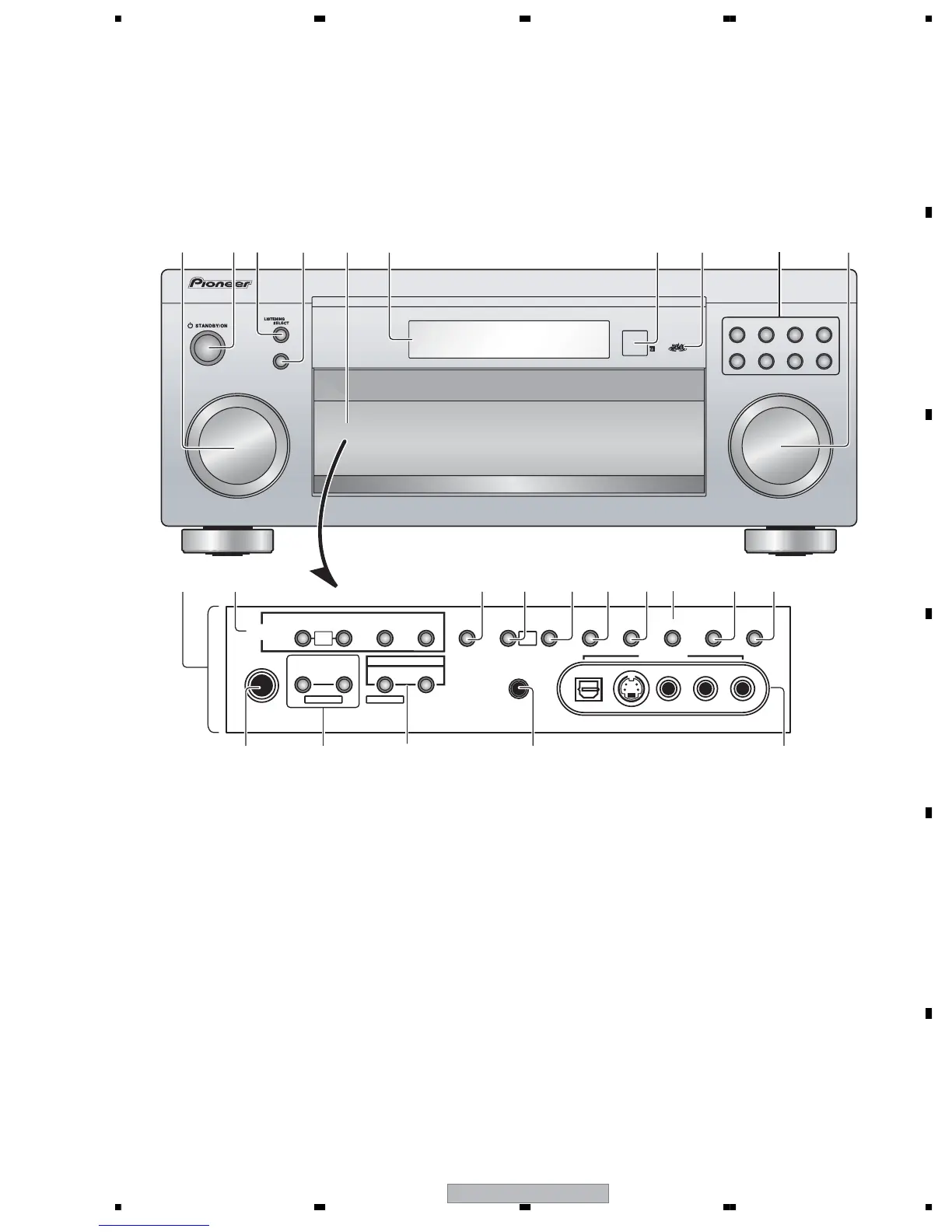

8.1 FRONT PANEL
All the controls on the front panel are explained and/or referenced here. To open the front panel push gently
on the lower third of the panel.
Front panel
1 MULTI JOG dial
Use the MULTI JOG dial to select various settings and
menu options.
2
Switches the receiver between on and standby.
3 LISTENING MODE SELECT
Use with the MULTI JOG dial to select the various
listening modes.
4 ENTER
5 Character display
6 Remote sensor
Receives the signals from the remote control.
7 MCACC indicator
Lights when Acoustic Calibration EQ is on
(Acoustic Calibration EQ is automatically set to ALL CH
ADJUST after the Auto MCACC Setup or EQ
Auto Setting is complete).
8 Input select buttons
Press to select an input source.
9 MASTER VOLUME dial
MASTER VOLUME
DVD/LD TV/SAT DVR/VCR VIDEO1
CD
CD-R/
TAPE/MD
MULTI JOG
TUNER VIDEO2
VSX
-
52TX
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
MODE
ENTER
PHONES
TUNER
CONTROL
TUNER
EDIT
SYSTEM
SETUP
RETURN CONTROL ON/OFF
MCACC
SETUP MIC
DIGITAL IN S
-
VIDEO VIDEO
VIDEO2 INPUT
AUDIOLR
MULTI ROOM
MULTI JOG MULTI JOG
TUNING/
STATION
BAND MPX TONE
ACOUSTIC
EQ
DIALOG
ENHANCEMENT
MULTI CH
IN
SIGNAL
SELECT
EXTENDED
MODE
SPEAKERS
MIDNIGHT/
LOUDNESS
MULTI
JOG
MULTI
JOG
10
1
10
23 54
67
89
12 13
14
15 16 17
19
22
21
20
24
11
23
18
 STANDBY/ON
