TROUBLESHOOTING AND ELECTRICAL SYSTEM: FE400 ENGINE Electrical Circuits
Page 11-12 2003 Pioneer 1200/1200SE Gasoline Vehicle Maintenance and Service Manual
11
FUEL GAUGE AND SENDING UNIT CIRCUIT
The fuel gauge and sending unit circuit consists of the fuel gauge/hour meter, fuel level sending unit, key
switch and connecting wires. The fuel gauge sending unit picks up power from the key switch when the key
switch is turned to the ON position. The power goes through the gauge to the sending unit at the fuel tank. The
sending unit tells the gauge how much fuel is in the tank (Figure 11-12, Page 11-12).

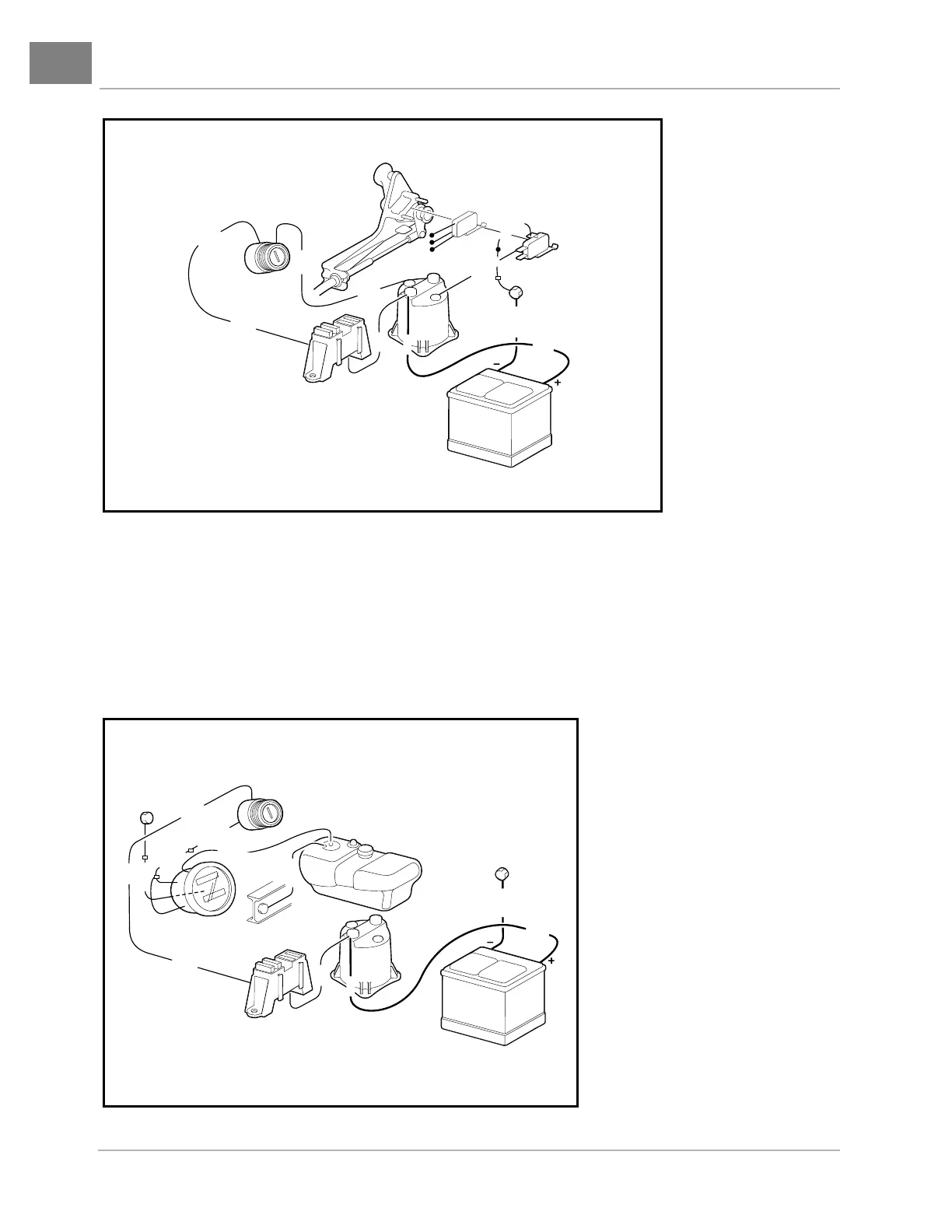

Figure 11-11 Lockout Cam Circuit
Figure 11-12 Fuel Gauge and Sending Unit Circuit
2
M
L
B
G
S
KEY
SWITCH
FUSE
BLOCK
FRAME
GROUND
BATTERY
FORWARD / REVERSE
ASSEMBLY
LIMIT
SWITCH
1
RED
RED
RED
RED
RED
BLUE
BLUE
BLACK
BLACK
GREEN
SOLENOID
2
1
3
4
M
L
B
G
S
FUEL GAUGE/
HOUR METER
BLACK
FRAME
GROUND
KEY
SWITCH
FUSE
BLOCK
FRAME
GROUND
BATTERY
FRAME
GROUND
FUEL TANK
SOLENOID
RED
RED
RED
RED
RED
RED
BLUE
BLACK
ORANGE
BLACK
YELLOW
