MC012C-AS00 UNITIZED TRANSAXLE WITH DIFFERENTIAL LOCK Forward/Reverse Shifter Cable
Page 16-24 2003 Pioneer 1200/1200SE Gasoline Vehicle Maintenance and Service Manual
16
FORWARD/REVERSE SHIFTER CABLE
See General Warning, Section 1, Page 1-1.
If the Forward/Reverse shifter cable is damaged in any way, it must be replaced.
FORWARD/REVERSE SHIFTER CABLE REMOVAL
NOTE: Before removing cable, note cable routing and positions of wire ties or other devices securing the
cable to the vehicle. When installing, cable must be routed and secured as it was originally.
1. Remove the ball joint socket (2) from the Forward/Reverse shifter assembly ball stud (3) (Figure 16-62,
Page 16-25).
2. Remove the ball joint socket (10) from the shifter arm ball stud (11) on the transaxle.
3. Loosen the retaining nuts (5) on both ends of the cable and remove the wire tie and cable.
FORWARD/REVERSE SHIFTER CABLE INSTALLATION
1. Route the cable to the transaxle shifter lever, beginning at the Forward/Reverse shifter.
2. Secure the cable with retaining nut (5) on each side of the shifter cable support bracket at the transaxle
(Figure 16-62, Page 16-25) and tighten nuts to 22 ft-lb (29.8 N·m).
3. Secure the cable with retaining nut (5) on each side of the shifter cable support bracket at the Forward/
Reverse assembly and tighten nuts to 22 ft-lb (29.8 N·m).
4. Install the ball joint socket (10) on the shifter lever ball stud (11) on the transaxle.
5. Install the ball joint socket (2) on the Forward/Reverse shifter assembly ball stud (3).
6. Install wire tie (8) to secure wire harness to cable at the support bracket near the Forward/Reverse shifter
assembly. See following WARNING.

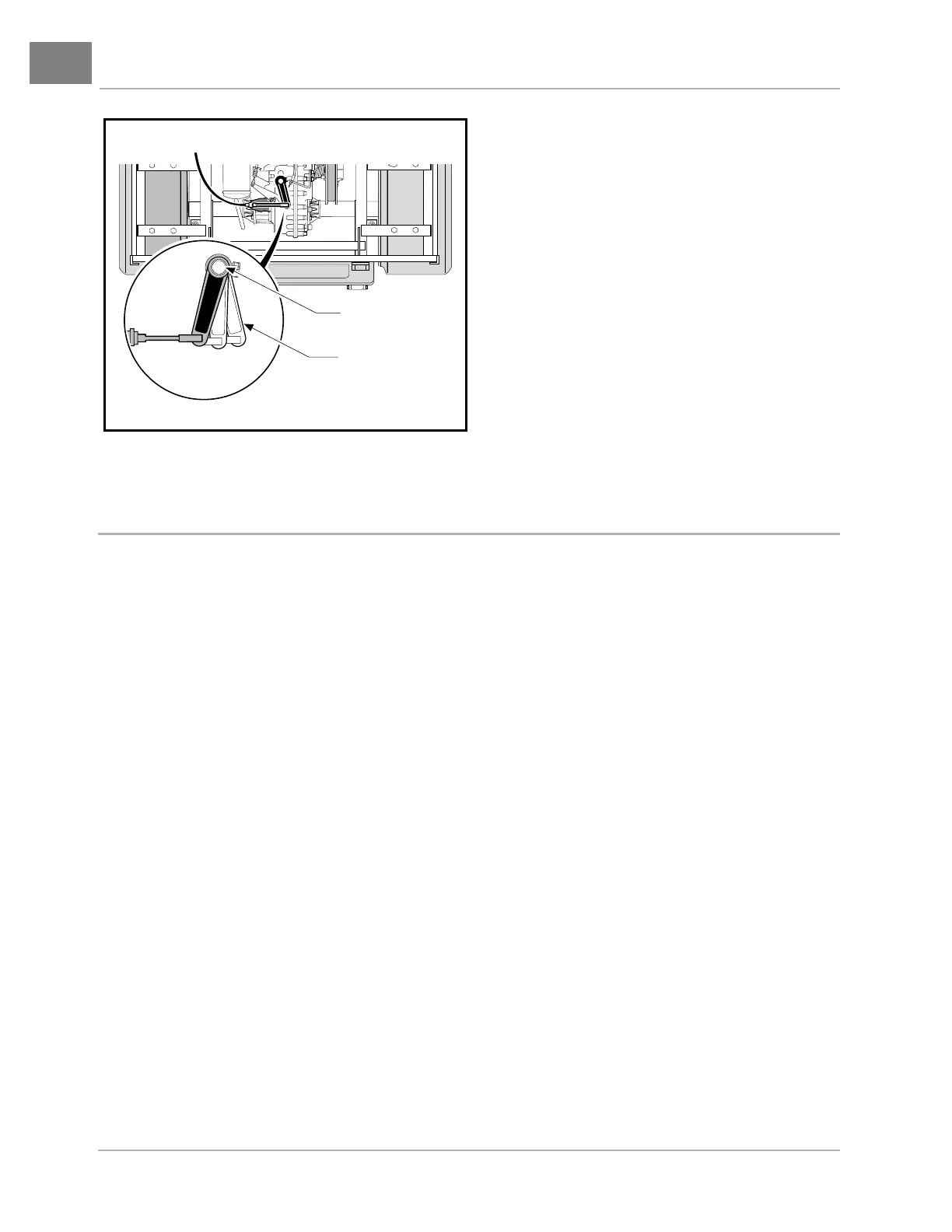

Figure 16-61 Forward/Reverse Positions
F
NR
SHIFTER
LEVER
SHIFTER
ARM
TOP VIEW
