See page 6 for Connections.

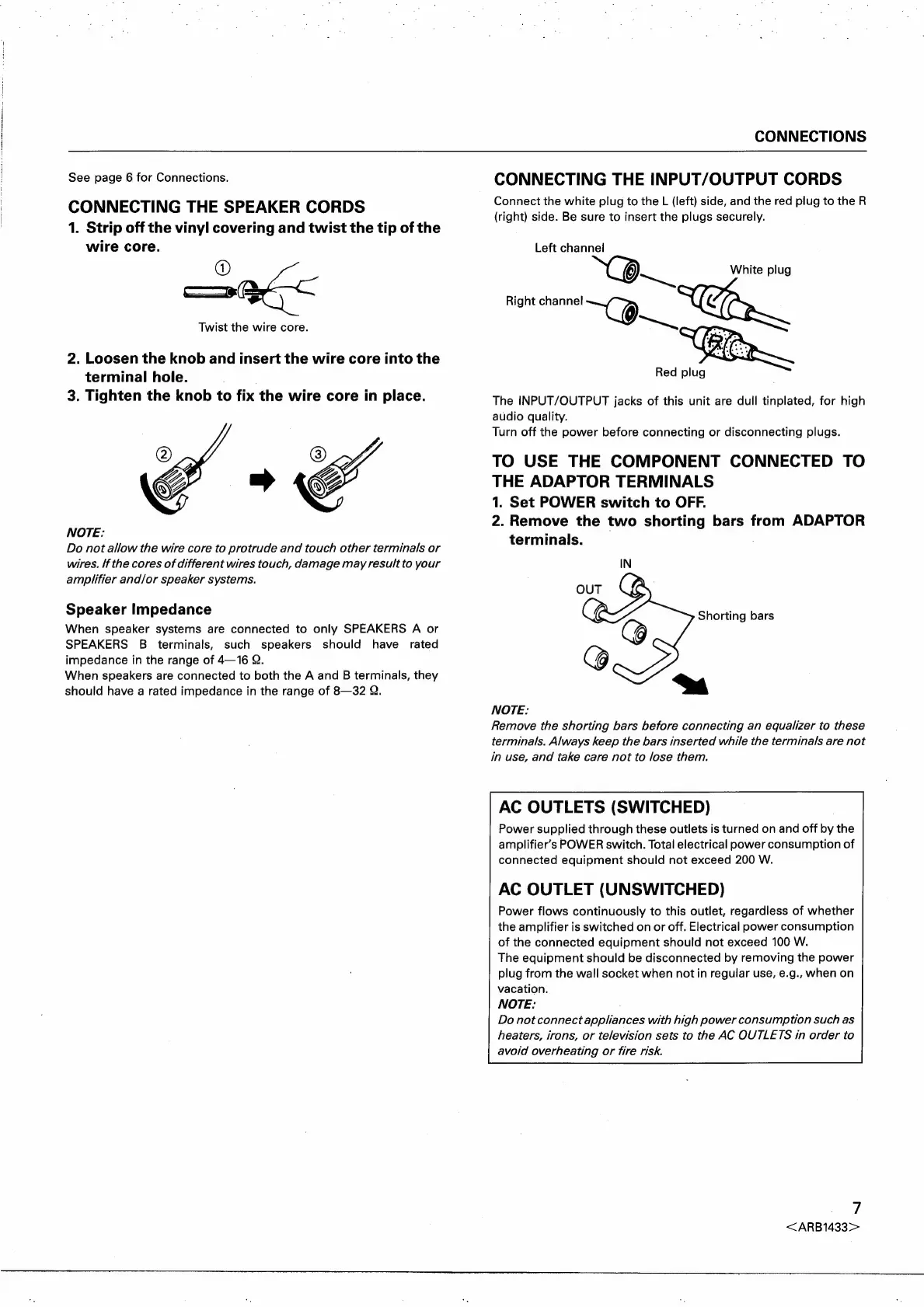

CONNECTING THE SPEAKER CORDS
1. Strip off the vinyl covering and twist the tip of the
wire core.
®
Twist the wire core.
2. Loosen the knob and insert the wire core into the
terminal hole.
3. Tighten the knob to fix the wire core in place.
NOTE:
Do not allow the wire core to protrude and touch other terminals or
wires. If the cores of different wires touch, damage may result to your
amplifier and/or speaker systems.
Speaker Impedance
When speaker systems are connected to only SPEAKERS A or
SPEAKERS 8B terminals, such speakers should have rated
impedance in the range of 4—16 Q.
When speakers are connected to both the A and B terminals, they
should have a rated impedance in the range of 8—32 Q.
CONNECTIONS
CONNECTING THE INPUT/OUTPUT CORDS
Connect the white plug to the L (left) side, and the red plug to the R
(right) side. Be sure to insert the plugs securely.
Red plug
Left channel
White plug
™_”
Right channel
GR
C2
The INPUT/OUTPUT jacks of this unit are dull tinplated, for high
audio quality.
Turn off the power before connecting or disconnecting plugs.
TO USE THE COMPONENT CONNECTED TO
THE ADAPTOR TERMINALS
1. Set POWER switch to OFF.
2. Remove the two shorting bars from ADAPTOR
terminals.
IN
Shorting bars
NOTE:
Remove the shorting bars before connecting an equalizer to these
terminals. Always keep the bars inserted while the terminals are not
in use, and take care not to lose them.
AC OUTLETS (SWITCHED)
Power supplied through these outlets is turned on and off by the
amplifier’s POWER switch. Total electrical power consumption of
connected equipment should not exceed 200 W.
AC OUTLET (UNSWITCHED)
Power flows continuously to this outlet, regardless of whether
the amplifier is switched on or off. Electrical power consumption
of the connected equipment should not exceed 100 W.
The equipment should be disconnected by removing the power
plug from the wall socket when not in regular use, e.g., when on
vacation.
NOTE:
Do not connect appliances with high power consumption such as
heaters, irons, or television sets to the AC OUTLETS in order to
avoid overheating or fire risk.
a ee
<ARB1433>
