10
<CRD4481-A/N> <10>

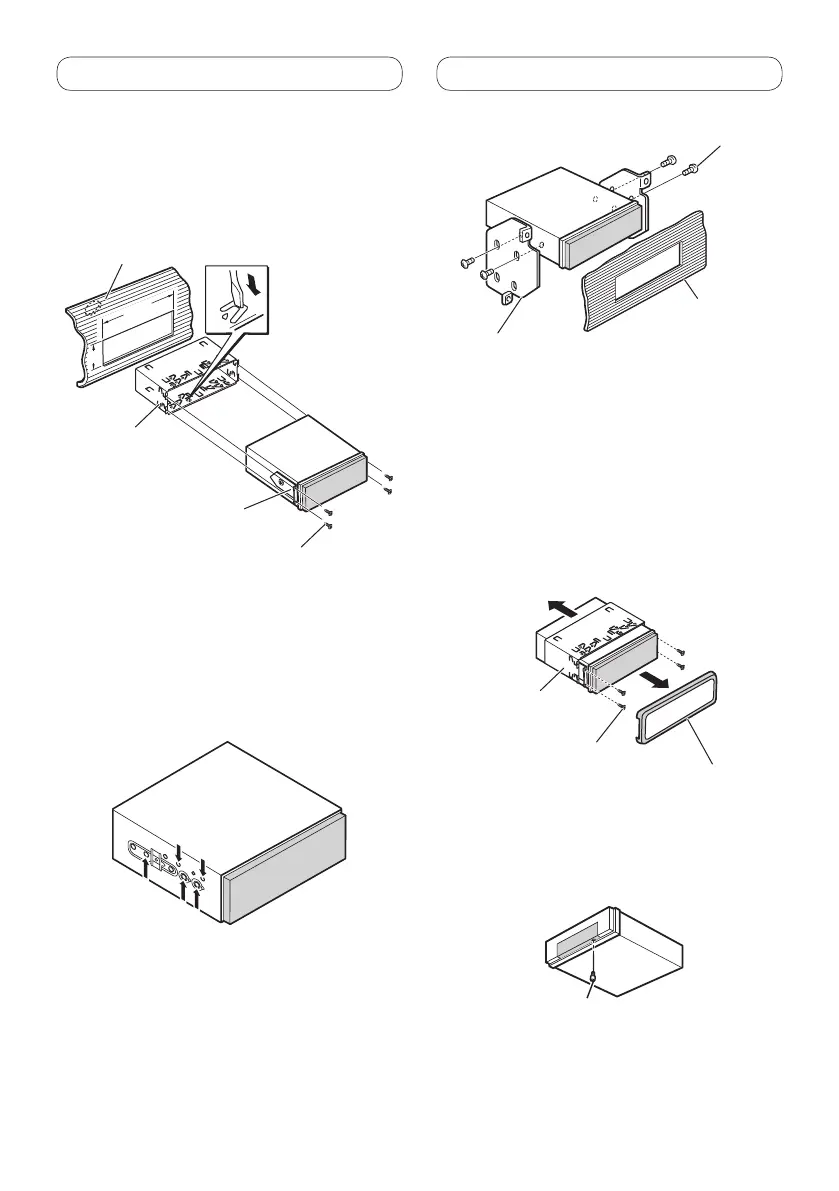

Installation
2. Install the unit into the dashboard.
Insert the mounting sleeve into the
dashboard. And then secure the mounting
sleeve by using a screwdriver to bend the
metal tabs (90°) into place.
182
53
Dashboard
Side bracket
Screw (2 mm × 3 mm)
Mounting sleeve
DIN Rear-mount
1. Determine the appropriate position
where the holes on the bracket and
the side of the unit match.
• When installing in a shallow space, use the
following screw holes.
*1 Use binding screws (4 mm × 3 mm) only.
2. Tighten two screws on each side.
Use any of binding screws (4 mm × 3 mm),
binding screws (5 mm × 6 mm) or flush
surface screws (5 mm × 6 mm), depending
on the shape of screw holes in the bracket.
Screw
Dashboard or
Console
Factory radio mounting
bracket
Removing the unit
Extend top and bottom of the trim ring
outwards to remove the trim ring. And then
loosen the screws (2 mm × 3 mm) to remove
the mounting sleeve.
• When reattaching the trim ring, push the
trim ring onto the unit until it clicks after
reattaching the mounting sleeve. (If the trim
ring is attached upside down, the trim ring will
not fit properly.)
Mounting sleeve
Trim ring
Screw (2 mm × 3 mm)
Fastening the front panel
If you do not plan to detach the front panel,
the front panel can be fastened with supplied
screw.
Screw
