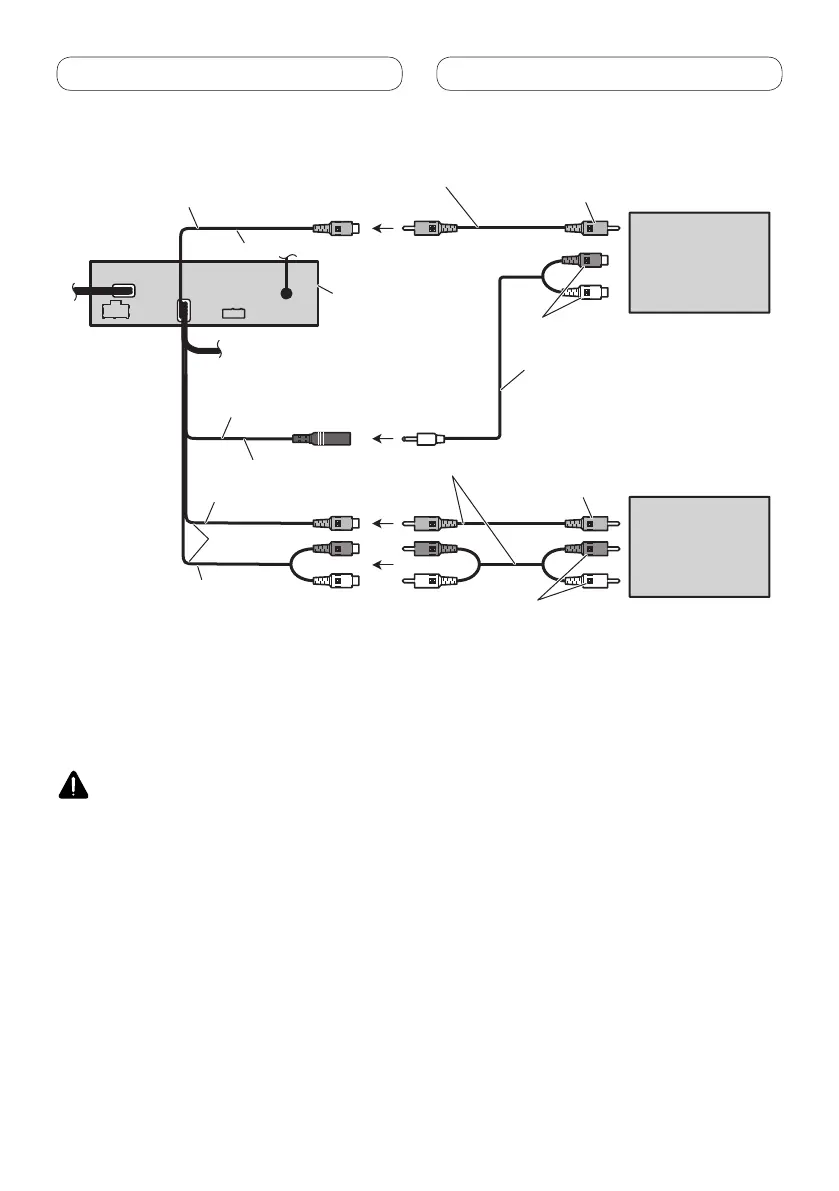

When connecting the external video component and the display
This product
External video
component
(sold separately)
RCA cables (sold separately)
Audio input
(AUDIO INPUT)
Video input (VIDEO INPUT)
13 cm
Display with
RCA input jacks
(sold separately)
Rear monitor output
(REAR MONITOR OUTPUT)
To video input
To video output
To audio outputs
13 cm
Rear audio output
(REAR MONITOR OUTPUT(AUDIO))
To audio input
RCA cables (sold separately)
17 cm
Mini pin plug cable
(sold separately)
• It is necessary to change AV Input in System Menu when connecting the external video
component.
When using a display connected to rear video output
This product’s rear video output and rear audio output are for connection of a display to
enable passengers in the rear seats to watch the DVD etc.
WARNING
Never install the display in a location where it is visible to the driver while driving.
Connecting the units
