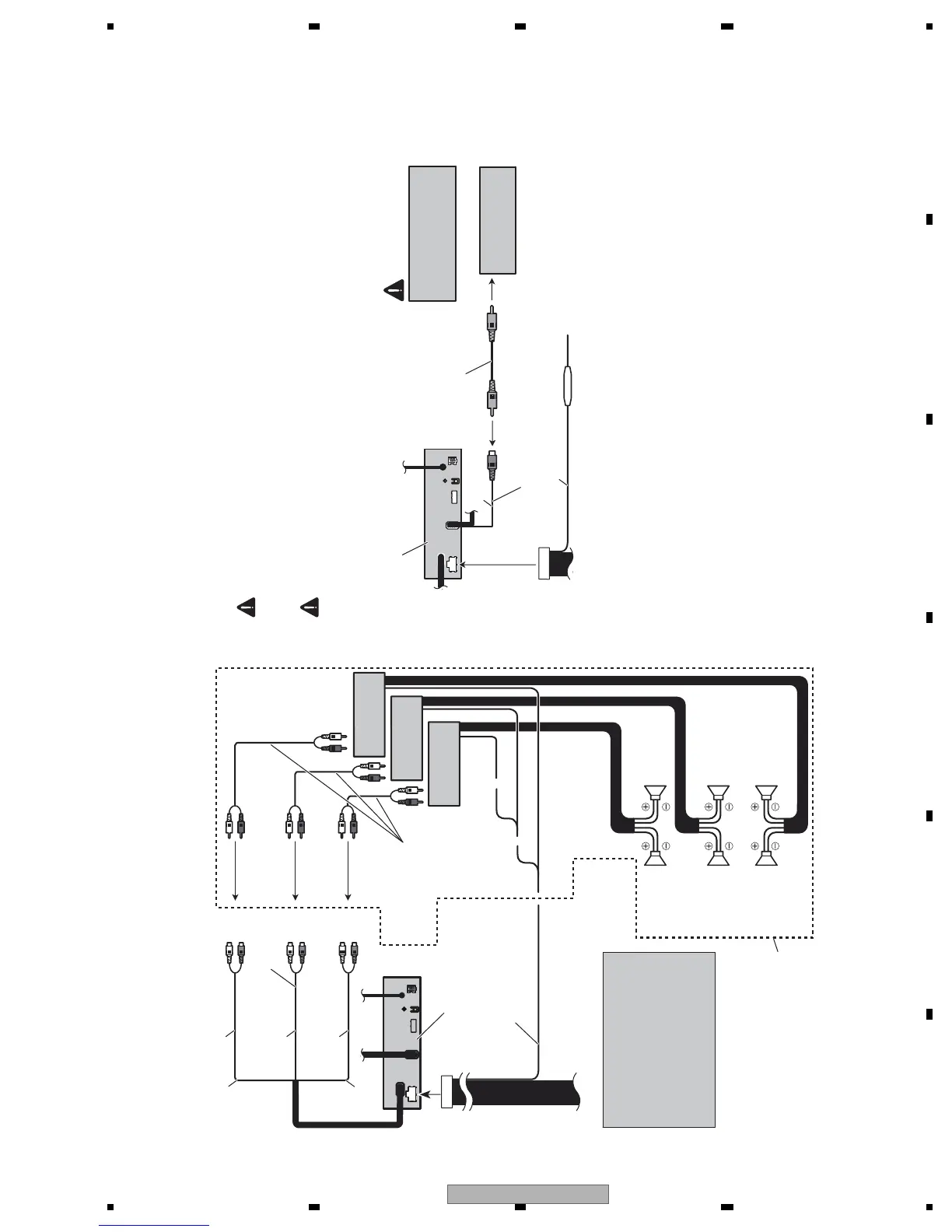

When connecting to separately sold power amp
Blue/white
Connect to system control
terminal of the power amp
(max. 300 mA 12 V DC).
Connect with RCA cables
(sold separately)
Rear speaker
Perform these connections when
using the optional amplifier.
System remote control
rekaepstnorFrekaepstnorF
thgiRtfeL
Rear speaker
Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
Subwoofer
Subwoofer
To front output
To rear output
To subwoofer
output
This product
Rear output
( REAR OUTPUT )
Front output
( FRONT OUTPUT )
Subwoofer output
( SUBWOOFER OUTPUT )
13 cm
13 cm
17 cm
· When you connect the separately sold
multi-channel processor (DEQ-P7650)
to this unit, do not connect anything
to the speaker leads and system
remote control (blue/white).
· When you connect the multi-channel
processor to this unit, refer to
multi-channel processor’s installation
manual for the connection method.
When connecting with a rear view camera
When this product is used with a rear view camera, it is possible to automatically switch
from the video to rear view image when the gear shift is moved to REVERSE (R).
WARNING
USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY
RESULT IN INJURY OR DAMAGE.
CAUTION
• The screen image may appear reversed.
• The rear view camera function is to be used as an aid for backing into a tight parking spot.
Do not use this function for entertainment purposes.
• Objects in the rear view may appear closer or more distant than they actually are.
To video output
Rear view camera
(sold separately)
Rear view camera input ( REAR VIEW CAMERA IN)
Violet/white
Of the two lead wires connected to the back lamp, connect the one
in which the voltage changes when the gear shift is in the
REVERSE (R) position. This connection enables the unit to
sense whether the car is moving forwards or backwards.
You must use a camera
which outputs mirror
reversed images.
CAUTION
Fuse resistor
This product
RCA cable (sold separately)
15 cm
13 cm
• It is necessary to set Camera Polarity properly in System Menu when connecting the rear view camera.
To Next Page
