Pioneer DEH-1330R Service Manual

4
DEH-1330R,1300R,1310
1 Cord Assy See Contrast table(2)
2 Screw CBA1002
3 Handle CNC5395
4 Bush CNV3930
* 5 Polyethylene Bag E36-615
6 Polyethylene Bag CEG-162
7-1 •••••
7-2 Owner's Manual
See Contrast table(2)
7-3 Owner's Manual See Contrast table(2)
7-4 Installation Manual
See Contrast table(2)
* 7-5 Passport See Contrast table(2)
* 7-6 Warranty Card CRY1157
8 Carton
See Contrast table(2)
9 Contain Box See Contrast table(2)
10 Protector CHP2346
11 Protector CHP2347
12 Case Assy CXB3520
Mark No. Description Part No. Mark No. Description Part No.
(1) PACKING SECTION PARTS LIST
NOTE:
- Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to ∇ mark on the product are used for disassembly.
2. EXPLODED VIEWS AND PARTS LIST

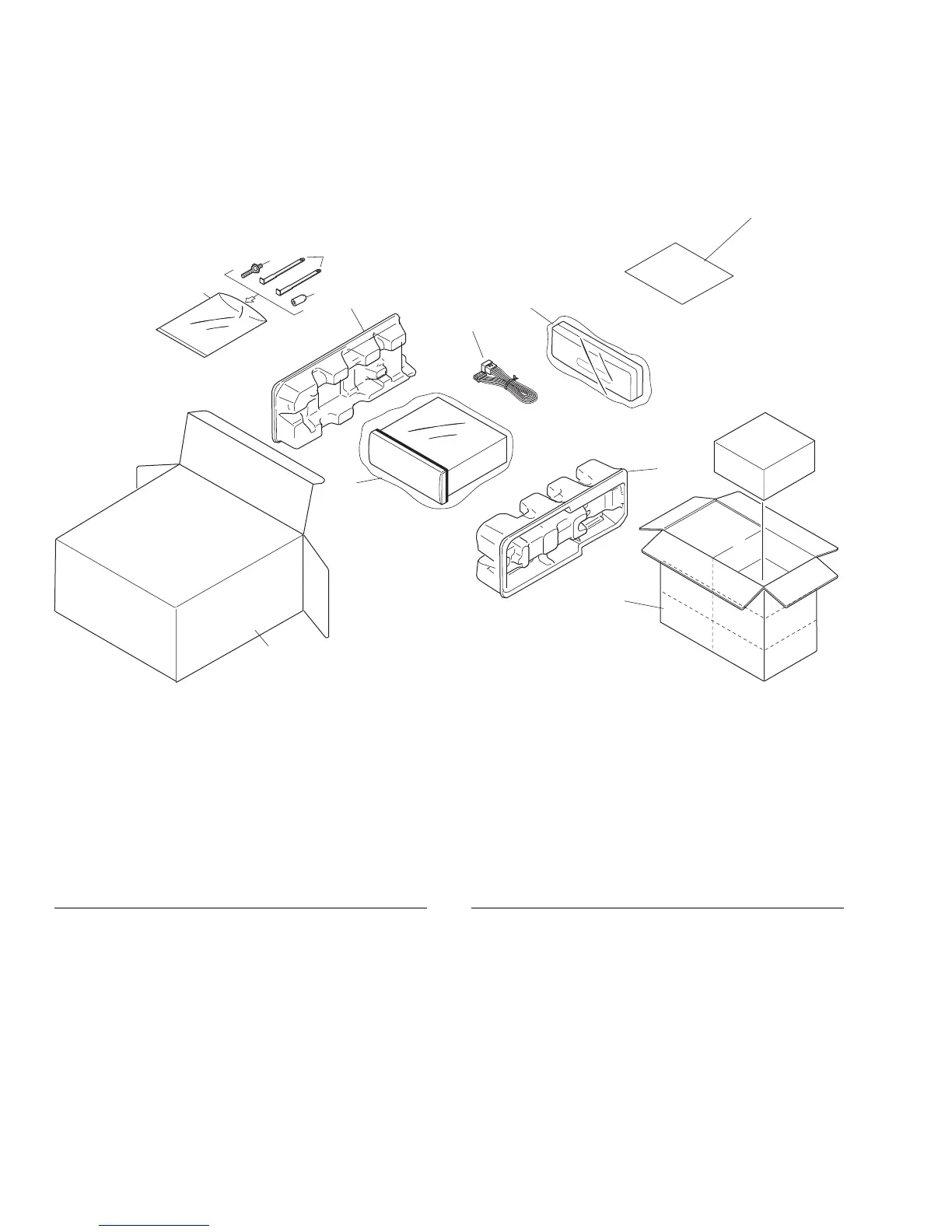

2.1 PACKING
10
1
12
6
8
9
11
7
4
3
5
2
