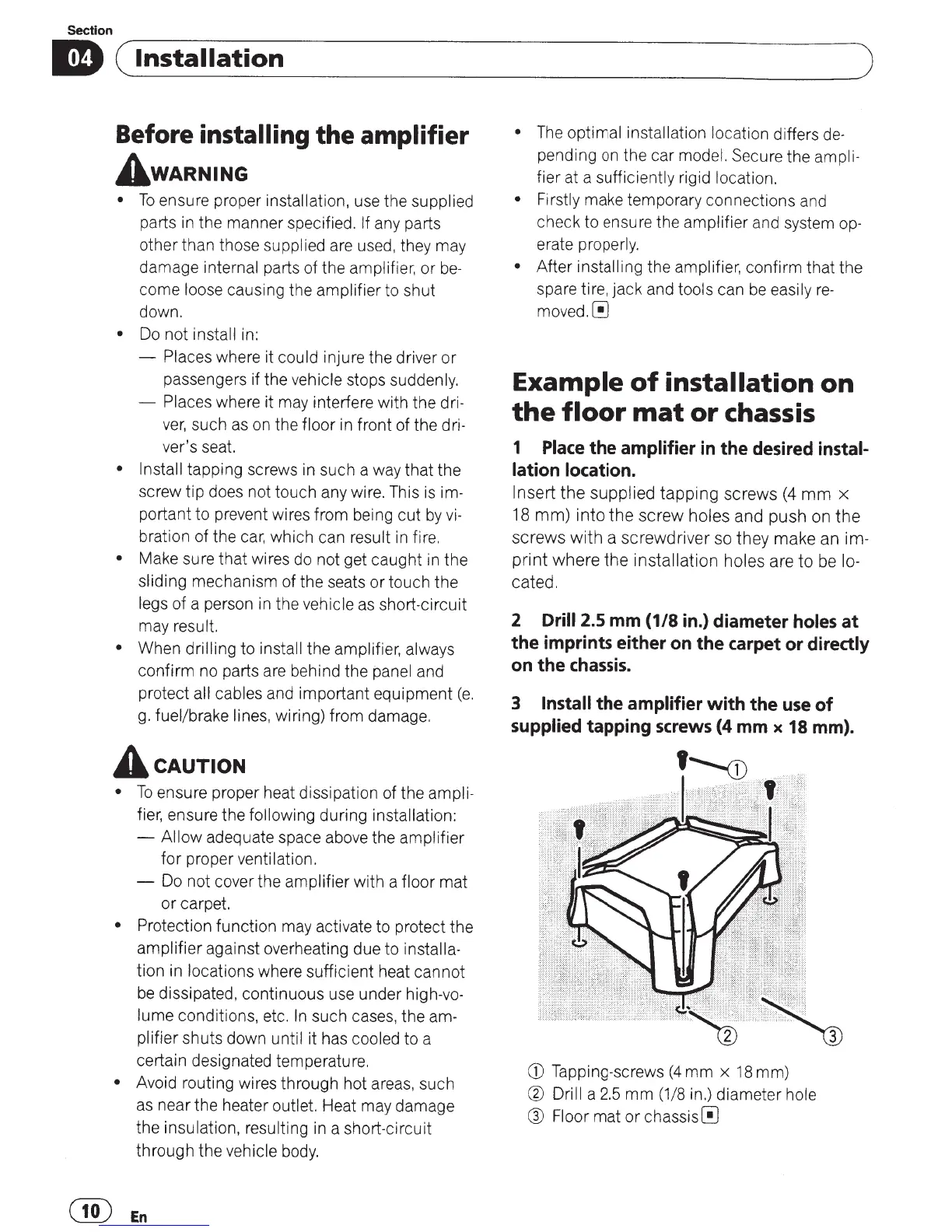

Section
m ( Installation
Before
installing
the
amplifier
j\wARNING
•
To
ensure proper
installation, use the
supplied
parts
in
the manner specified.
If
any parts
other than those
supplied
are
used, they may
damage
internal
parts of the
amplifier,
or
be-
come
loose
causing the amplifier
to shut
down.
•
Do
not
install
in:
-
Places
where it
could
injure the driver or
passengers if the vehicle stops
suddenly.
- Places
where it may interfere with the dri-
ver,
such
as
on the
floor
in front of the d
ri-
ver's seat.
• Install
tapping screws
in
such a way that the
screw tip does not touch any wire. This
is
im-
portant to prevent wires from being cut
by
vi-
bration of the
car,
which can
result
in
fire.
• Make sure that wires
do
not get caught
in
the
sliding mechanism
of the seats or touch the
legs of a person
in
the
vehicle
as
short-circuit
may
result.
•
When
drilling
to
install
the
amplifier, always
confirm no parts are behind the
panel
and
protect
all cables and important equipment
(e.
g.
fuel/brake
lines,
wiring) from damage.
j\cAUTION
•
To
ensure proper heat dissipation of the
ampli-
fier, ensure the
following
during
installation:
-
Allow
adequate space above the
amplifier
for proper ventilation.
-
Do
not cover the
amplifier
with a
floor
mat
or carpet.
• Protection function may activate to protect the
amplifier
against overheating due to installa-
tion
in
locations where sufficient heat cannot
be
dissipated, continuous use under high-vo-
lume
conditions, etc.
In
such cases, the am-
plifier shuts down
until
it has cooled to a
certain designated temperature.
•
Avoid routing wires through hot areas, such
as
near the heater outlet.
Heat may damage
the
insulation, resulting
in
a short-circuit
through the
vehicle
body.
®En
•
The
optimal installation location
differs
de-
pending
on
the car
model.
Secure the
ampli-
fier at a sufficiently rigid
location.
)
• Firstly
make temporary connections and
check to ensure the
amplifier
and system
op-
erate
properly.
•
After
installing
the
amplifier, confirm that the
spare tire, jack and
tools
can
be
easily
re-
moved.~
Example
of
installation
on
the
floor
mat
or
chassis
1
Place
the
amplifier
in
the desired
instal-
lation location.
Insert
the
supplied
tapping
screws
(4
mm
x
18
mm)
into
the
screw
holes
and push on
the
screws
with
a screwdriver so they make an
im-
print
where
the
installation
holes
are
to
be
lo-
cated.
2
Drill2.5
mm (1/8 in.) diameter
holes
at
the imprints either on the carpet or
directly
on the
chassis.
3
Install the
amplifier
with
the
use
of
supplied tapping
screws
(4 mm
x
18 mm).
CD
Tapping-screws
(4
mm x
18
mm)
®
Drill a
2.5
mm
(1/8
in.) diameter
hole
®
Floor
mat or
chassis~
