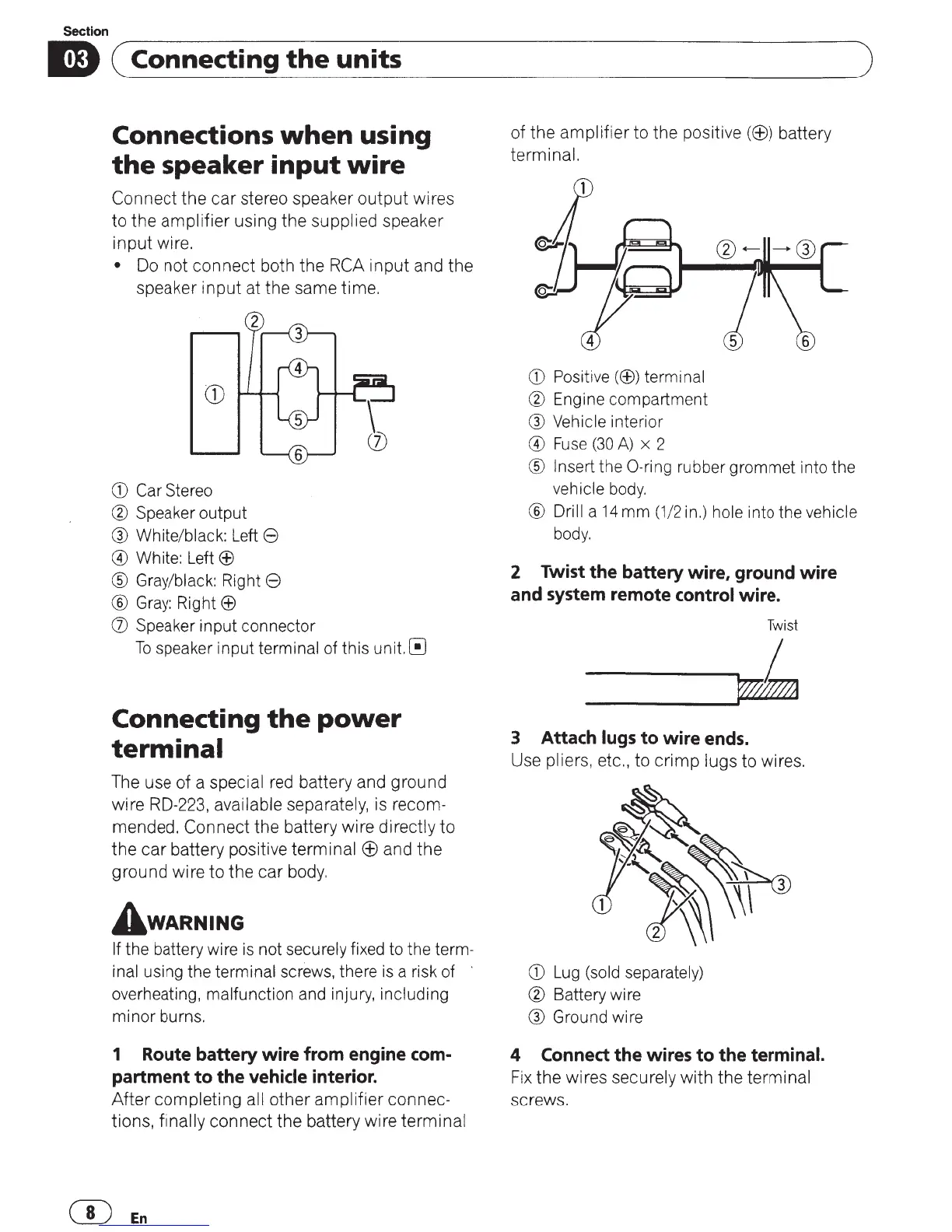

Section
IJ)
( Connecting
the
units
Connections
when
using
the
speaker
input
wire
Connect
the
car
stereo speaker
output
wires
to the
amplifier
using the supplied speaker
input
wire.
• Do not connect both the RCA
input
and the
speaker
input
at the same time.
CD
Car Stereo
@ Speaker output
® White/black: Left 8
® White: Left
ffi
® Gray/black: Right 8
®
Gray:
Right
ffi
Q)
Speaker input connector
To
speaker input terminal of this
unit.~
Connecting
the
power
terminal
The use of a special red battery and ground
wire RD-223, available separately,
is
recom-
mended. Connect the battery wire directly
to
the
car
battery positive terminal
(!)and
the
ground wire
to
the
car
body.
A wARNING
If
the battery wire
is
not securely fixed to the term-
inal using the terminal screws, there
is
a risk of
overheating, malfunction and injury, including
minor burns.
1 Route battery wire from engine
com-
partment
to
the vehicle interior.
After
completing
all other
amplifier
connec-
tions, finally connect the battery wire terminal
([)En
of the am
pi
ifier to the positive ((!)) battery
terminal.
CD
Positive
(ffi)
terminal
@ Engine compartment
® Vehicle interior
®
Fuse
(30
A)
x 2
® Insert the 0-ring rubber grommet into the
vehicle
body.
® Drill a
14
mm
(1/2
in.) hole into the vehicle
body.
2 Twist the battery wire, ground wire
and
system
remote control wire.
Twist
----·
3 Attach
lugs
to wire
ends.
Use pliers, etc., to
crimp
lugs to wires.
CD
Lug
(sold separately)
@ Battery wire
® Ground wire
4 Connect the wires
to
the terminal.
Fix
the wires securely with the terminal
screws.
)
