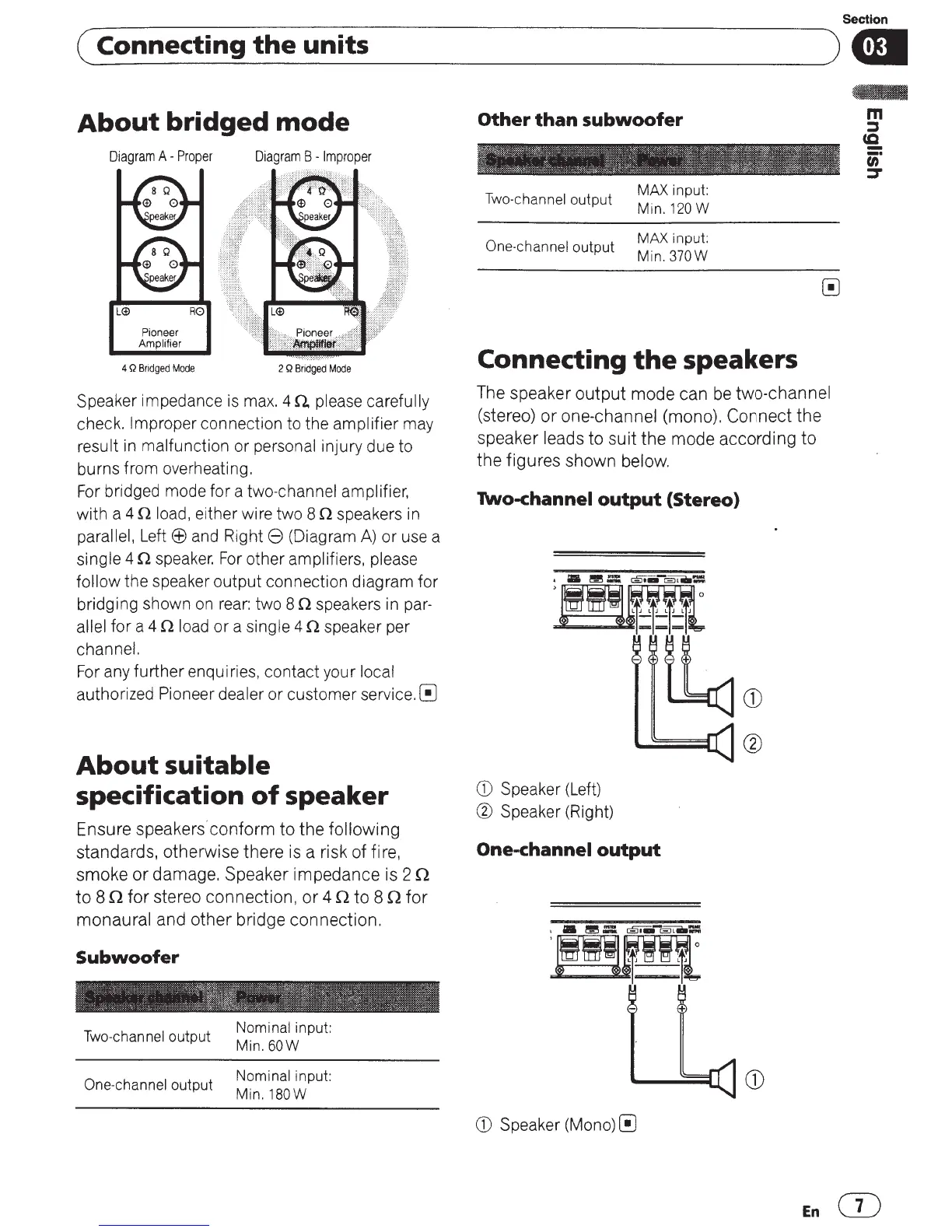

Section
(~c_o_n_n_e_c_t_in~g~t_h_e_u_n_i_ts
____________________________
)GII
About
bridged
mode
Diagram
A -
Proper
L<I>
Pioneer
Amplifier
4 Q
Bridged
Mode
Diagram
B -
Improper
2 Q
Bridged
Mode
Speaker impedance
is
max.
4
n,
please carefully
check. Improper connection to the amplifier may
result
in
malfunction or personal injury due to
burns from overheating.
For
bridged mode for a two-channel amplifier,
with a 4
n load, either wire two 8 n speakers
in
parallel, Left(±) and Right 8 (Diagram
A)
or use a
single 4
n
speaker.
For
other amplifiers, please
follow the speaker output connection diagram for
bridging shown
on
rear:
two 8 n speakers
in
par-
allel for a 4
n
load
or a single 4 n speaker per
channel.
For
any further enquiries, contact your local
authorized Pioneer dealer or customer service.(!]
About
suitable
specification
of
speaker
Ensure speakers
conform
to
the
following
standards, otherwise there is a risk of fire,
smoke
or
damage. Speaker impedance is 2 n
to
8 n
for
stereo connection,
or
4 n
to
8 n
for
monaural
and
other
bridge connection.
Subwoofer
Two-channel output
Nominal input:
Min. 60W
One-channel output
Nominal input:
Min.180W
Other
than
subwoofer
Two-channel output
MAX input:
Min.
120
W
One-channel output
MAX input:
Min. 370W
Connecting
the
speakers
The speaker
output
mode
can be two-channel
(stereo)
or
one-channel (mono). Connect
the
speaker leads to
suit
the mode
according
to
the
figures shown below.
1\No-channel
output
(Stereo)
CD
Speaker (Left)
@ Speaker (Right)
One-channel
output
+
CD
Speaker (Mono)(!]
