Pioneer GM-5300T User Manual

7

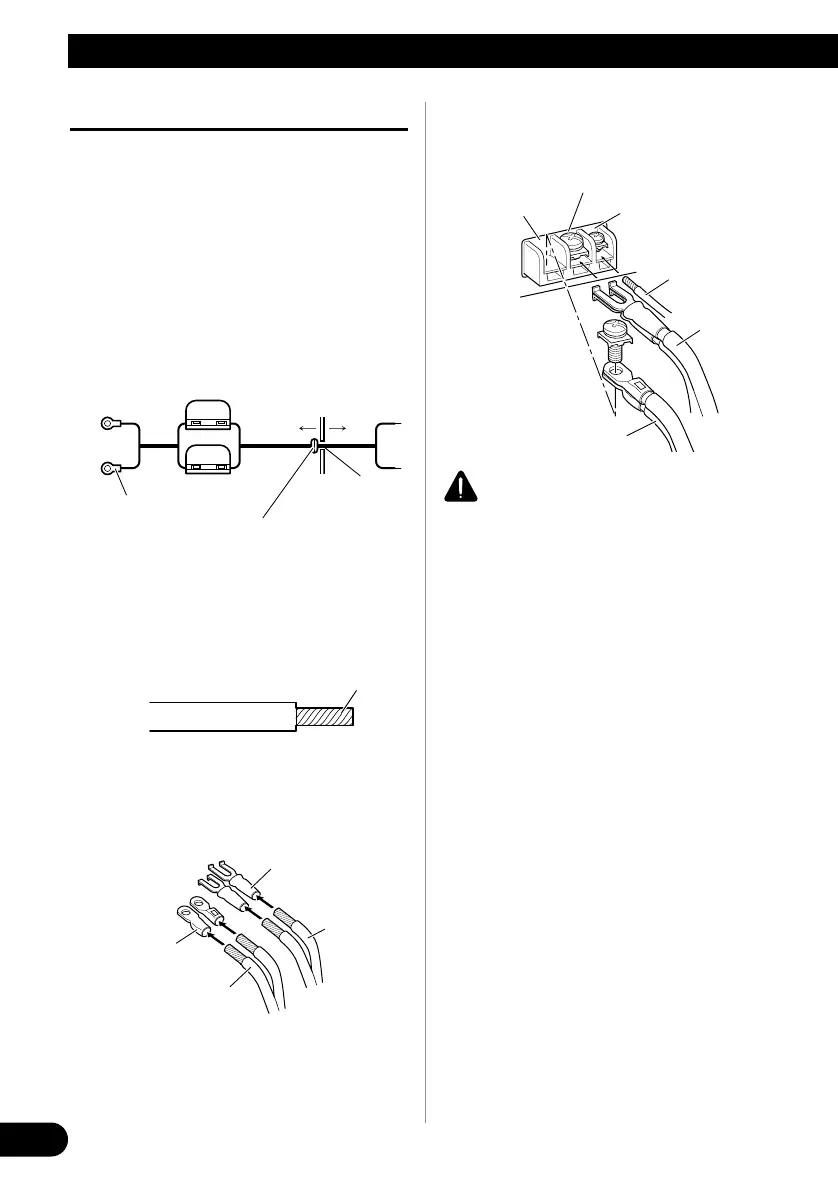

Connecting the Unit
Connecting the Power Terminal
• Always use the special red battery and ground
wire [RD-223], which is sold separately. Connect
the battery wire directly to the car battery positive
terminal (+) and the ground wire to the car body.
1. Pass the battery wire from the
engine compartment to the interior
of the vehicle.
• After making all other connections to the
amplifier, connect the battery wire terminal
of the amplifier to the positive (+) terminal of
the battery.
2. Twist the battery wire, ground wire
and system remote control wire.
3. Attach lugs to wire ends. Lugs not
supplied.
• Use pliers, etc., to crimp lugs to wires.
4. Connect the wires to the terminal.
• Fix the wires securely with the terminal
screws.
WARNING
Failure to securely fasten the battery wire to the ter-
minal using the terminal screws could cause the ter-
minal area to overheat and could result in damage
and injury including minor burns.
Engine
compart-
ment
Interior of
the vehicle
Drill a 14 mm
hole into the
vehicle body.
Insert the O-ring rubber
grommet into the vehicle
body.
Positive terminal
GND terminal
Power terminal
Battery wire
System remote
control terminal
System remote
control wire
Ground wire
Twist
Battery wire
Ground wire
Lug
Lug
Fuse (30 A)
Fuse (30 A)

Pioneer GM-5300T Specifications

General

Impedance	8 Ω
Signal-to-Noise Ratio (SNR)	95 dB
Total Harmonic Distortion (THD)	0.015 %
Output power	760 W
Channels quantity	2 channels
Dimensions (WxDxH)	300 x 334 x 60 mm
Connectivity technology	Wired
Product color	Black

Weight and Dimensions

Weight	3900 g
