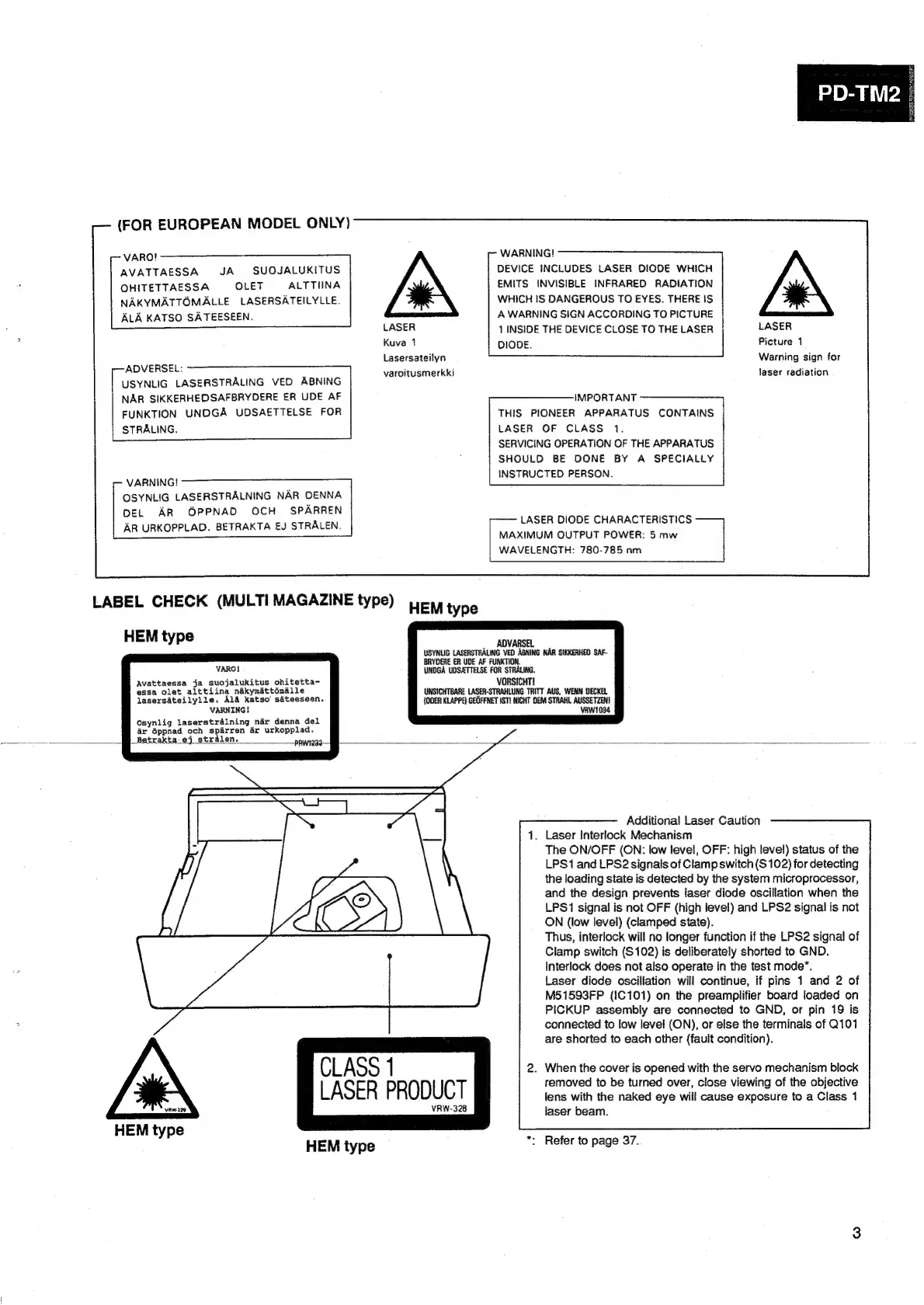

Pioneer PD-TM2 User Manual

(FOR EUROPEAN MODEL ONLY)
VARO!
AVATTAESSA
JA
SUOJALUKITUS
OHITETTAESSA
OLET
ALTTIINA
NAKYMATTOMALLE
LASERSATEILYLLE.
ALA
KATSO
SATEESEEN.
ADVERSEL:
USYNLIG LASERSTRALING VEO ABNING
NAR
SIKKERHEDSAFBRYDERE
ER
UDE
AF
FUNKTION
UNOGA
UDSAETTELSE
FOR
STRALING.
VARNING!
OSYNLIG
LASERSTRALNING
NAR
DENNA
DEL
AR
OPPNAD
OCH
SPARREN
AR
URKOPPLAD.
BETRAKTA
EJ
STRALEN.
HEM type
VARO!
Avattaessa ja suojalukitus ohitetta~
essa olet alttiina nakymatténadlle
lasersateilylle. Ala katso’ séteeseen.
VARNING!
Osynlig laserstralning nar denna del
ar éppnad och spdrren ar urkopplad.
Betrakta-ej_stralen. pRWwi233
WARNING!
DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIATION
WHICH IS DANGEROUS TO EYES. THERE IS
A WARNING SIGN ACCORDING TO PICTURE
LASER 1 INSIDE THE DEVICE CLOSE TO THE LASER LASER
Kuva
1
DIODE.
1
Lasersateilyn Warning sign for
varoitusmerkki laser radiation
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780-785 nm
LABEL CHECK (MULTI MAGAZINE type) HEM type
___ ADVARSEL
USYNLIG LASERSTRALING VED ABNING NAR SIKKERHED SAF-
BRYDERE ER UDE AF FUNKTION.
UNDGA UDSATTELSE FOR STRALING
VORSICHT!
UNSICHTBARE LASER-STRAHLUNG TRITT AUS, WENN DECKEL
{ODER KLAPPE) GEOFFNET IST! NICHT OEM STRAHL AUSSETZEN!
VRW1094
CZ
Ay
HEM type
HEM type
CLASS 1
LASER PRODUCT
Additional Laser Caution
1. Laser Interlock Mechanism
The ON/OFF (ON: low level, OFF: high level) status of the
LPS1 and LPS2 signals of Clamp switch (S102) for detecting
the loading state is detected by the system microprocessor,
and the design prevents laser diode oscillation when the
LPS1 signal is not OFF (high level) and LPS2 signal is not
ON (low level) (clamped state).
Thus, interlock will no longer function if the LPS2 signal of
Clamp switch (S102) is deliberately shorted to GND.
Interlock does not also operate in the test mode”.
Laser diode oscillation will continue, if pins 1 and 2 of
M51593FP (1C101) on the preamplifier board loaded on
PICKUP assembly are connected to GND, or pin 19 is
connected to low level (ON), or else the terminals of Q101
are shorted to each other (fault condition).
. When the cover is opened with the servo mechanism block
removed to be turned over, close viewing of the objective
lens with the naked eye will cause exposure to a Class 1
VRW-328 laser beam.
*: Refer to page 37.
